This 796CALR with 90° pneumatic diverter arms is designed to move 30 gallon barrels down the main product line. The left arm lowers to divert barrels down a secondary line, while the right arm lowers to divert barrels from the secondary line back onto the main product line. Both arms can be raised to send barrels straight through the main product line.
| Specifications | TREAD ROLLERS: 1-.9″ dia. x 16 ga. steel rollers, model 196S. PRESSURE ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, cam adjustable. BELTING: 6″ wide black PVC-120 COS. CENTER DRIVE: Reversible drive with 24″ integral belt take-up. For units under 8′-0″ overall length, drive components must be stacked. Consult factory for minimum unit elevation. SQUARING RODS: Adjustable rods on underside of bed allow frame to be squared for improved belt tracking and are standard on all units over 30′. DRIVE PULLEY: 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft; both crowned and fully lagged. END PULLEY: 4″ dia., crowned, with 1-3/16″ dia. shaft. RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S BED: 6″ x 1-1/2″ x 12 ga. channel frame slotted for tread rollers to pop-out. When unit is installed at 7′-0″ elevation or higher, rollers must be retained in conveyor frame. Specify desired elevation. Bed sections attached with couplings and floor supports. FLOOR SUPPORTS: SM-6 adjustable 31-1/2″ to 43-1/2″ TOR. Supports should be lagged to floor. BEARINGS: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. ROLLER CHAIN: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. SPEED: 60 FPM, constant. ELECTRICAL CONTROLS: Optional |
|---|
This 796CALR with 90° pneumatic diverter arms is designed to move 30 gallon barrels down the main product line. The left arm lowers to divert barrels down a secondary line, while the right arm lowers to divert barrels from the secondary line back onto the main product line. Both arms can be raised to send barrels straight through the main product line.
| Specifications | TREAD ROLLERS: 1-.9″ dia. x 16 ga. steel rollers, model 196S. PRESSURE ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, cam adjustable. BELTING: 6″ wide black PVC-120 COS. CENTER DRIVE: Reversible drive with 24″ integral belt take-up. For units under 8′-0″ overall length, drive components must be stacked. Consult factory for minimum unit elevation. SQUARING RODS: Adjustable rods on underside of bed allow frame to be squared for improved belt tracking and are standard on all units over 30′. DRIVE PULLEY: 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft; both crowned and fully lagged. END PULLEY: 4″ dia., crowned, with 1-3/16″ dia. shaft. RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S BED: 6″ x 1-1/2″ x 12 ga. channel frame slotted for tread rollers to pop-out. When unit is installed at 7′-0″ elevation or higher, rollers must be retained in conveyor frame. Specify desired elevation. Bed sections attached with couplings and floor supports. FLOOR SUPPORTS: SM-6 adjustable 31-1/2″ to 43-1/2″ TOR. Supports should be lagged to floor. BEARINGS: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. ROLLER CHAIN: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. SPEED: 60 FPM, constant. ELECTRICAL CONTROLS: Optional |
|---|
Accumulation
Belt Conveyors
Belt Driven Live Roller
Chain Driven Live Roller
Flexible Conveyors
Gravity Conveyors
Line Shaft
MDZ | Motor Driven Zone Accumulator
Parts Conveyor
Plastic Belt
Powered Roller
Slat Conveyors
Transfers
Wire Mesh Belt
Glass & Solar Handling
Heavy Duty Conveyors
laundry
MDR | Motor Driven Roller Smart Conveyors
Sortation Conveyors
Special Transfers

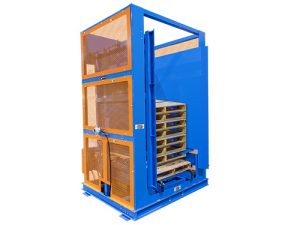

Stackers/Destackers
