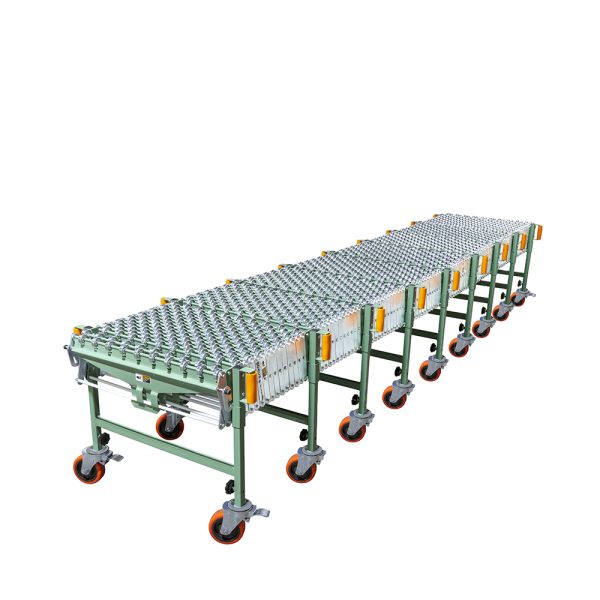

Skatewheel Flexible Conveyor

The Roach Flexible conveyor was designed for those times when a fixed conveyor is not applicable. Engineered with the workplace in mind the Flexible is built from quality components that can withstand the rigors of loading docks and back room areas while handling a wide variety of materials. Manufactured in the tradition of Roach excellence the Flexible is one conveyor that will last for years to come.



– Handles on each leg.
– 5″ axle centers standard.
– 5″ casters standard.
– Steel skate wheels with ball bearings.
– 18″ and 24″ conveying surface.
– Heavy duty 5/16″ axles.
– One Piece constantly vertical all steel skate wheel and axle.
– Built tough for back room applications.
– Height adjustment: 31-1/2″ to 42-1/2″.
– Expansion Ratio of 3:1.
– Heavy duty 7 gauge steel side links- extra long.
– Solid weld construction on all leg supports.
– Four point leg support.



OPTIONS

– 3 and 4 inch axle centers available w/ minor adjustments.
– Fixed and retractable end stops.
– Impact load table.
– 6″ x 2″ casters.

Specifications

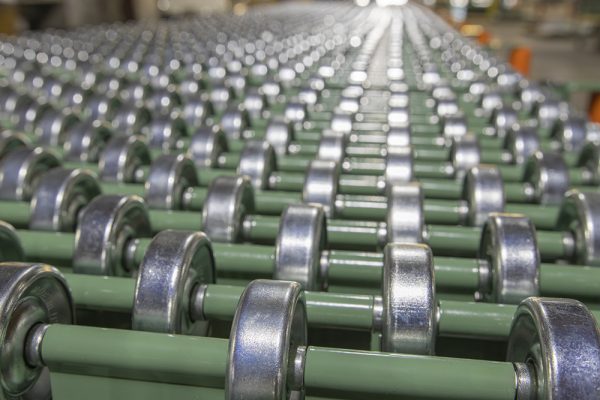

WHEELS: 1-15/16” dia. prelubricated steel ball bearing skate wheel with hardened raceway.

AXLES: Heavy duty 5/16” galvanized steel bolt type axle and lock nut. 5” axle centers.

SIDE LINKS: Heavy duty 7 gauge steel.

LEG SUPPORTS: Solid weld construction. Four point leg support connections. Handles on each leg.

Casters: 6” x 2” casters.

CONVEYING SURFACE: 18”, 24”, 30”

Height Adjustment: 31-1/2” to 42-1/2”

Expansion Ratio: 3.04:1 with 5” axle centers.

capacity: 350 lb. per FT.
