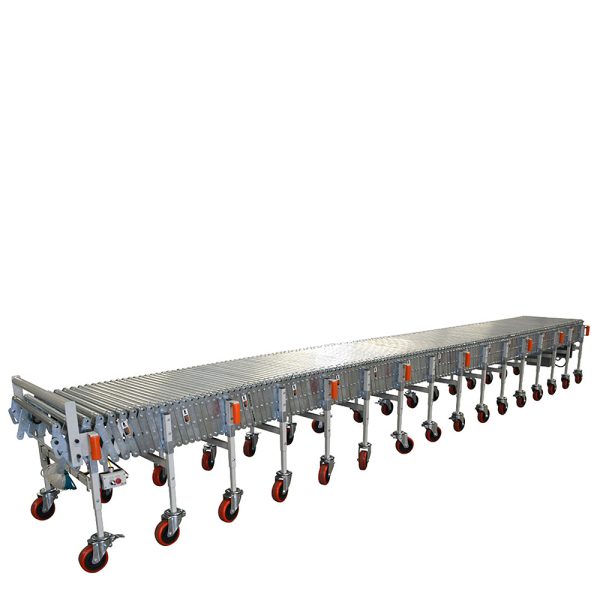

Power Flex

When fixed is not applicable and gravity is not practical.

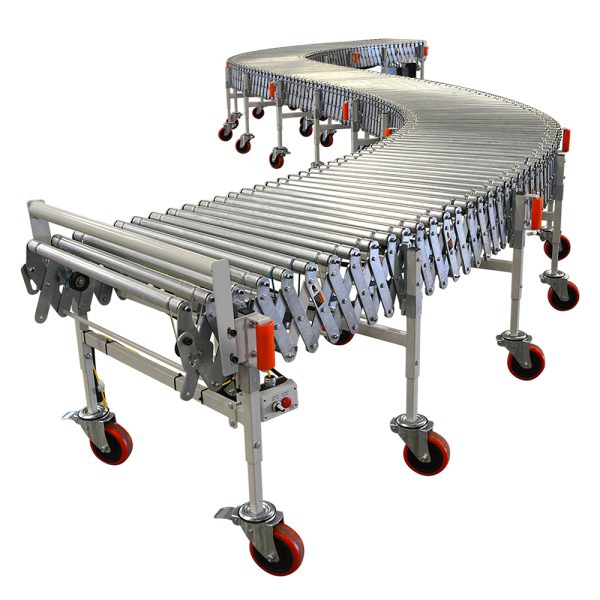

The excellent tracking performance of the Power Flex can be seen as materials follow the conveyor path and around curves with extraordinary accuracy. All Power Flex conveyors are designed with end line sensors to prevent damage to packages by end stops.

Roach Power Flex is the most durable flexible solution available for any industry application including parcel, e-commerce and retail, airports, warehouse and distribution centers, packaging, and more. The Power Flex Accumulation option is designed to enhance efficiency, reduce downtime, and improve overall
material flow. Gain control of sorting, packaging, quality checks, & load balancing through each accumulation zone.

– 1.97:1 Expansion Ratio
– 50lb/FT Capacity
– 30″ Conveying Surface
– Link Multiple Units
– End Stop Sensor
– Accumulation Optional

Specifications

WHEELS: 1-15/16” dia. prelubricated steel ball bearing skate wheel with hardened raceway.
AXLES: Heavy duty 5/16” galvanized steel bolt type axle and lock nut. 5” axle centers.
SIDE LINKS: Heavy duty 7 gauge steel.
LEG SUPPORTS: Solid weld construction. Four point leg support connections. Handles on each leg.
CASTERS: 6” x 2” casters.
CONVEYING SURFACE: 30”
Height: 32”
Capacity: 50 lb. per FT.e button below for additional information.

Optional

Accumulation

Power Flex Conveyor
