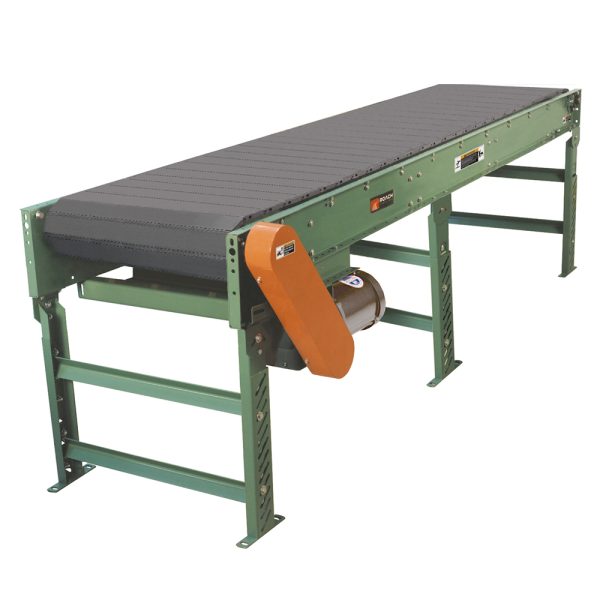

HD400PB | Heavy Duty Plastic Belt Conveyor

Category: Plastic Belt

Description
Specs

Series 400 flat top belting is used on model HD400PB for heavy unit loads. Belt tracking problems are eliminated when using series 400 flat top belting on Roach model HD400PB.

Specifications	BELTING: Series 400 flat top gray polypropylene belt, FDA approved belt. DRIVE SPROCKETS: 10.1″ pitch dia. with 2.5″ square bore. TAIL SPROCKETS: 10.1″ pitch dia. with 2.5″ square bore. END DRIVE: Allows one-direction (unit) operation. BEARINGS: Drive and tail shaft bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. BED: 7″ x 1-1/2″ x 7 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels. TAKE-UP: Catenary type located at discharge end. RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, adjustable with rubber sleeves. BELT SPEED: 35 FPM, constant. FLOOR SUPPORTS: Optional. MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. ROLLER CHAIN: Drive shaft is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. ELECTRICAL CONTROLS: Optional

Specifications

BELTING: Series 400 flat top gray polypropylene belt, FDA approved belt.

DRIVE SPROCKETS: 10.1″ pitch dia. with 2.5″ square bore.

TAIL SPROCKETS: 10.1″ pitch dia. with 2.5″ square bore.

END DRIVE: Allows one-direction (unit) operation.

BEARINGS: Drive and tail shaft bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.

BED: 7″ x 1-1/2″ x 7 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels.

TAKE-UP: Catenary type located at discharge end.

RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, adjustable with rubber sleeves.

BELT SPEED: 35 FPM, constant.

FLOOR SUPPORTS: Optional.

MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.

ROLLER CHAIN: Drive shaft is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.

ELECTRICAL CONTROLS: Optional
