CD280 | 2-Strand Chain Drag w/ Diamond Tread Plate

Category:

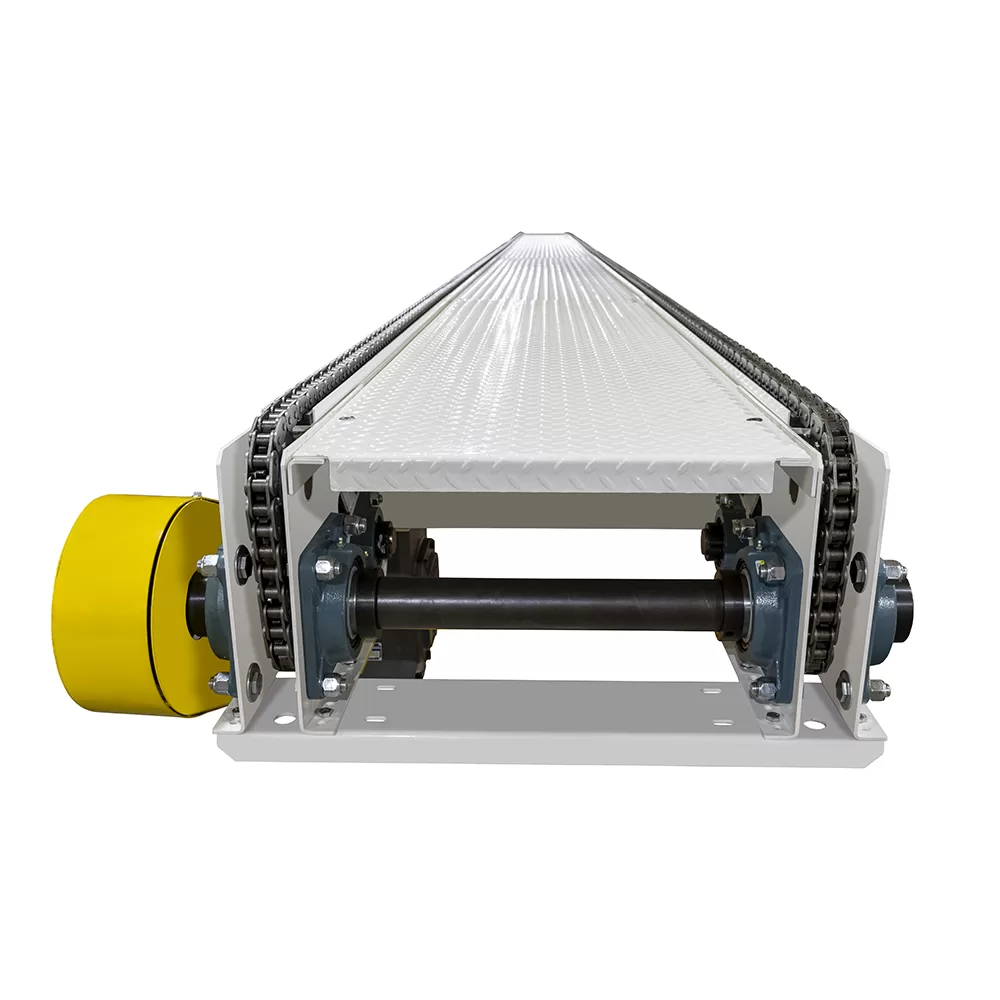

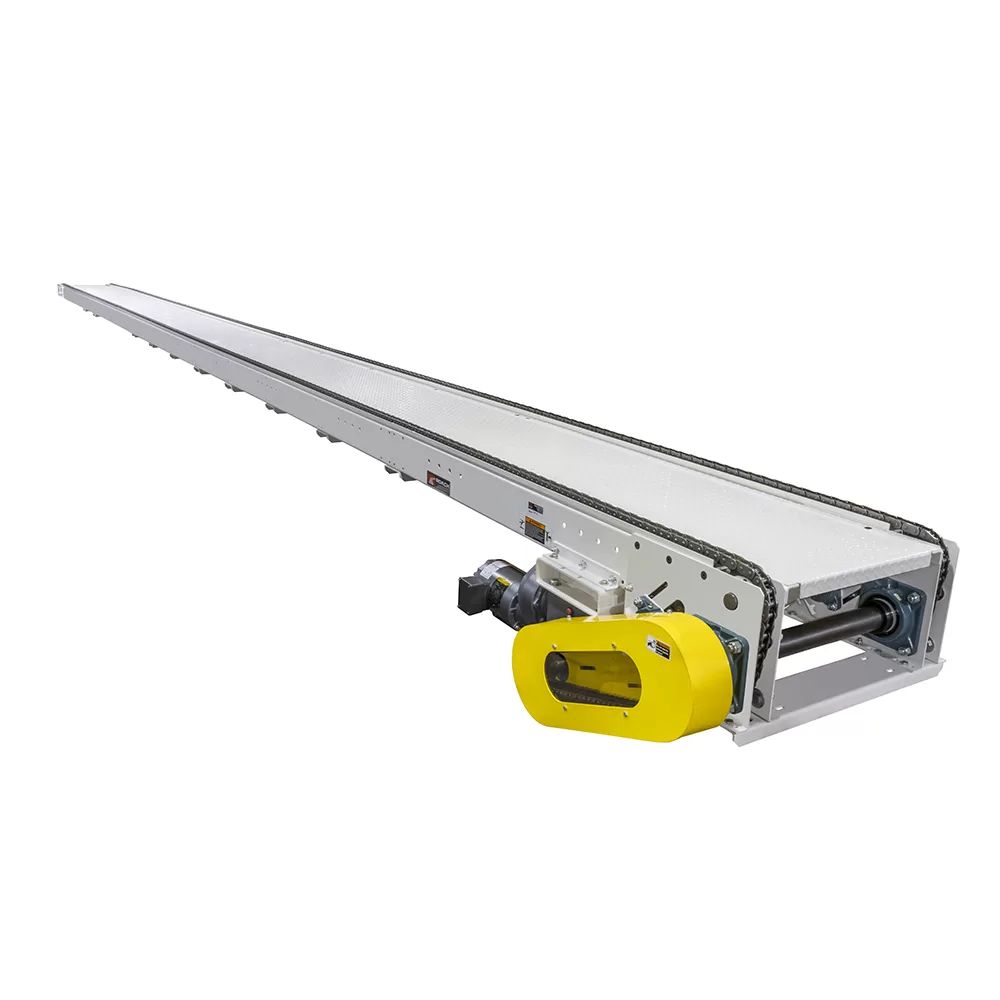

Chain drag conveyors are the most effective and efficient way to move heavy duty loads and bulk materials. Chain Drag Conveyors are best suited for products with unusual conveying characteristics such as pallets or large rigid containers. The unit shown here features an optional diamond tread plate top plate between the chains, a Lexan window on the drive train guard, as well as custom paint. Optional supports are also available.

Specifications

FRAME: 7 ga. formed boxed channel.

CARRIER CHAIN: 82' No. 80 Flat Bar Chain.

WEAR STRIP: UHMW long lasting wear strip, upper and lower.

CHAIN CENTERS: 24”

CHAIN TAKE-UP: Screw type located at tail end.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

CHAIN SPEED: 3.5 FPM constant.

BEARINGS: Heavy duty, lubricated, ball bearing unit with cast iron housings.

Capacity: Unit load not to exceed 3000 lbs.

MOTOR DRIVE: 3/4 HP, 230/460/3, – 60 cycle, Super “E” right angle gear motor.

ELECTRICAL CONTROLS: Optional.

CUSTOM PAINT: RAL9010 Pure White, RAL1021 Yellow

661122

Chain drag conveyors are the most effective and efficient way to move heavy duty loads and bulk materials. Chain Drag Conveyors are best suited for products with unusual conveying characteristics such as pallets or large rigid containers. The unit shown here features an optional diamond tread plate top plate between the chains, a Lexan window on the drive train guard, as well as custom paint. Optional supports are also available.

Specifications

FRAME: 7 ga. formed boxed channel.

CARRIER CHAIN: 82' No. 80 Flat Bar Chain.

WEAR STRIP: UHMW long lasting wear strip, upper and lower.

CHAIN CENTERS: 24”

CHAIN TAKE-UP: Screw type located at tail end.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

CHAIN SPEED: 3.5 FPM constant.

BEARINGS: Heavy duty, lubricated, ball bearing unit with cast iron housings.

Capacity: Unit load not to exceed 3000 lbs.

MOTOR DRIVE: 3/4 HP, 230/460/3, – 60 cycle, Super “E” right angle gear motor.

ELECTRICAL CONTROLS: Optional.

CUSTOM PAINT: RAL9010 Pure White, RAL1021 Yellow

661122
