CD280 | 2-Strand Chain Drag Conveyor

Categories: ,

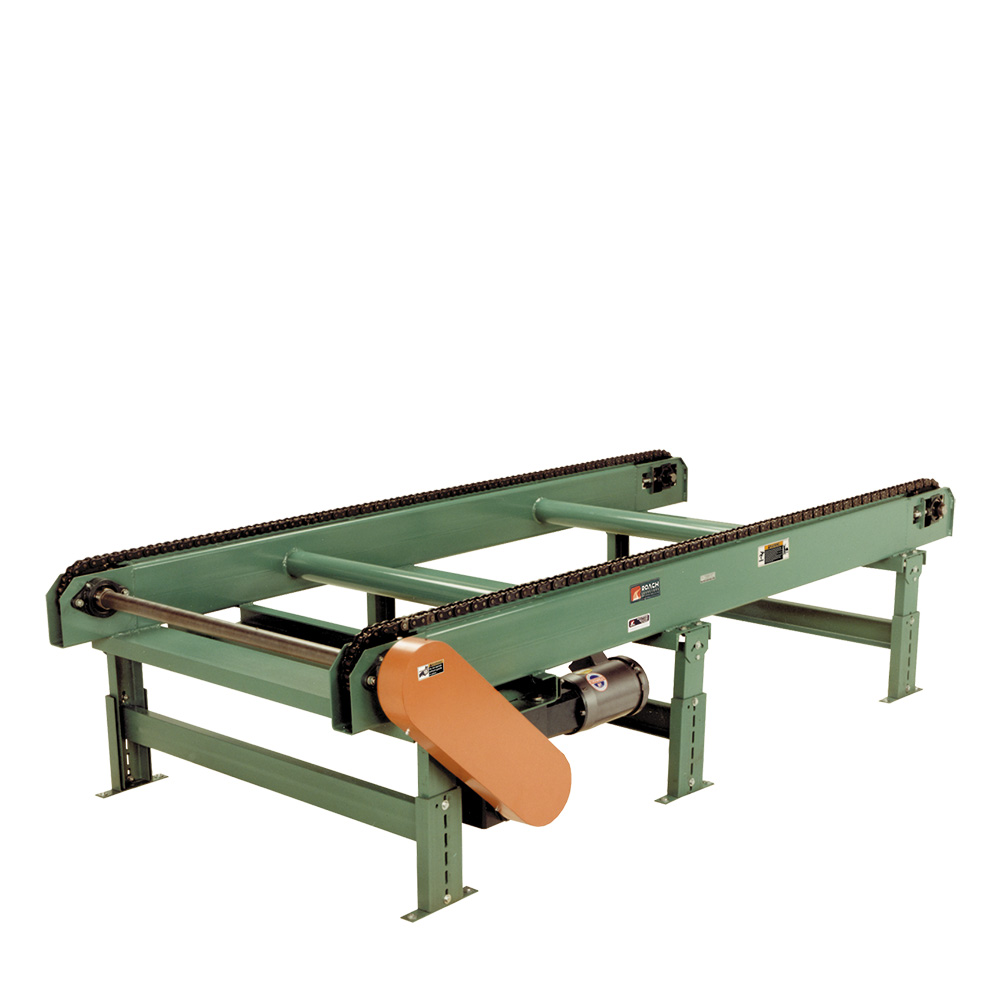

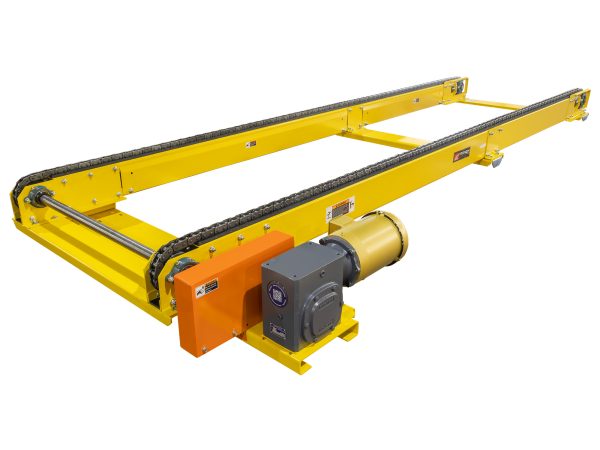

Chain drag conveyors convey heavy duty unit loads and often are suited for products with unusual conveying characteristics such as pallets or specialty tote pans. Unit shown features OPTIONAL structural construction.

Specifications

FRAME: 7 ga. formed boxed channel.

CARRIER CHAIN: No. 80 (model CD280) or no. 60 (model CD260) riveted roller chain.

WEAR STRIP: UHMW long lasting wear strip, upper and lower.

CHAIN CENTERS: 18”

CHAIN TAKE-UP: Screw type located at tail end.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

CHAIN SPEED: 35 FPM constant.

BEARINGS: Heavy duty, lubricated, ball bearing unit with cast iron housings.

Capacity: Unit load not to exceed 3000 lbs.

MOTOR DRIVE: 1/2 HP, 230/460/3,

60 cycle, Super “E” right angle gear motor.

ELECTRICAL CONTROLS: Optional.

CD280

Chain drag conveyors convey heavy duty unit loads and often are suited for products with unusual conveying characteristics such as pallets or specialty tote pans. Unit shown features OPTIONAL structural construction.

Specifications

FRAME: 7 ga. formed boxed channel.

CARRIER CHAIN: No. 80 (model CD280) or no. 60 (model CD260) riveted roller chain.

WEAR STRIP: UHMW long lasting wear strip, upper and lower.

CHAIN CENTERS: 18”

CHAIN TAKE-UP: Screw type located at tail end.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

CHAIN SPEED: 35 FPM constant.

BEARINGS: Heavy duty, lubricated, ball bearing unit with cast iron housings.

Capacity: Unit load not to exceed 3000 lbs.

MOTOR DRIVE: 1/2 HP, 230/460/3,

60 cycle, Super “E” right angle gear motor.

ELECTRICAL CONTROLS: Optional.
