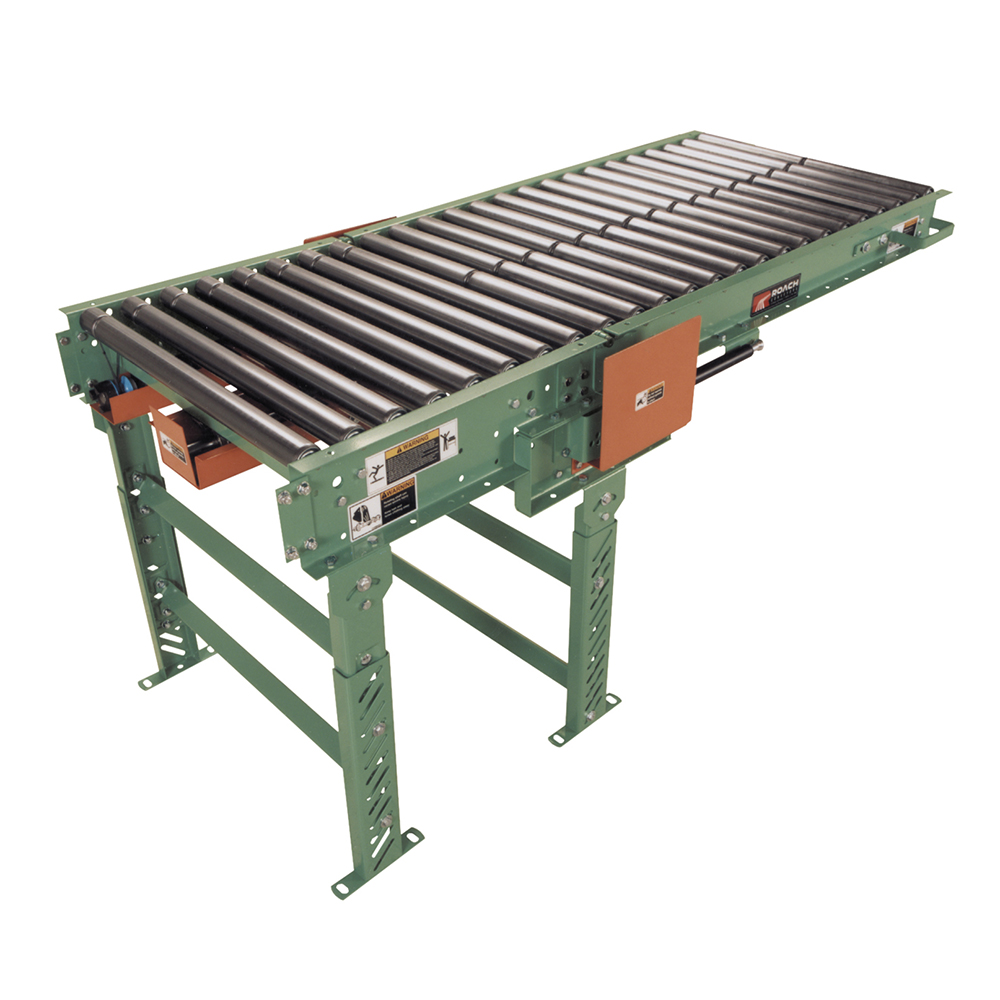

796LSG | Line Shaft Live Roller Gate Module Conveyor

Category:

Model 796LSG offers the ultimate versatility–it is driven by 796LS so no drive is required and it offers operator accessibility eliminating dangerous walk-overs.

Specifications

TREAD ROLLERS: .9” dia. x 16 ga. galvanized , model 196G grooved.

DRIVE BELT: 3/16” dia. polyurethane belts; nominal 15 lbs. per roller drive.

DRIVE SHAFT: 1″ dia. C1018 cold rolled steel shaft.

COUPLINGS: Located on one end only.

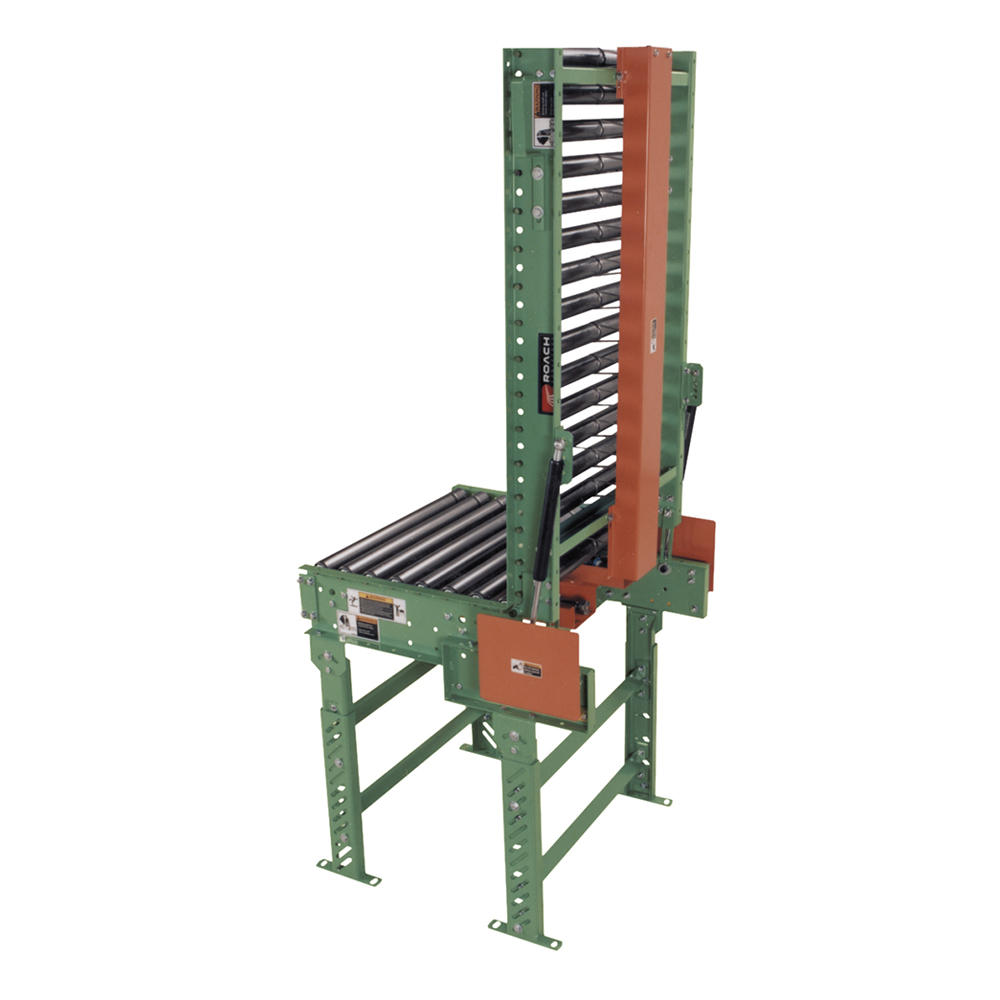

LIFT: Gas cylinder provides assist for raising / lowering.

SIDE CHANNEL: 7″ x 1-1/2″ x 12 ga. formed steel channel frame; horizontal section is 24" long

SPECIFY HAND: Specify if gate is left hand or right hand.

FLOOR SUPPORTS: Optional

796LSG

Model 796LSG offers the ultimate versatility–it is driven by 796LS so no drive is required and it offers operator accessibility eliminating dangerous walk-overs.

Specifications

TREAD ROLLERS: .9” dia. x 16 ga. galvanized , model 196G grooved.

DRIVE BELT: 3/16” dia. polyurethane belts; nominal 15 lbs. per roller drive.

DRIVE SHAFT: 1″ dia. C1018 cold rolled steel shaft.

COUPLINGS: Located on one end only.

LIFT: Gas cylinder provides assist for raising / lowering.

SIDE CHANNEL: 7″ x 1-1/2″ x 12 ga. formed steel channel frame; horizontal section is 24" long

SPECIFY HAND: Specify if gate is left hand or right hand.

FLOOR SUPPORTS: Optional
