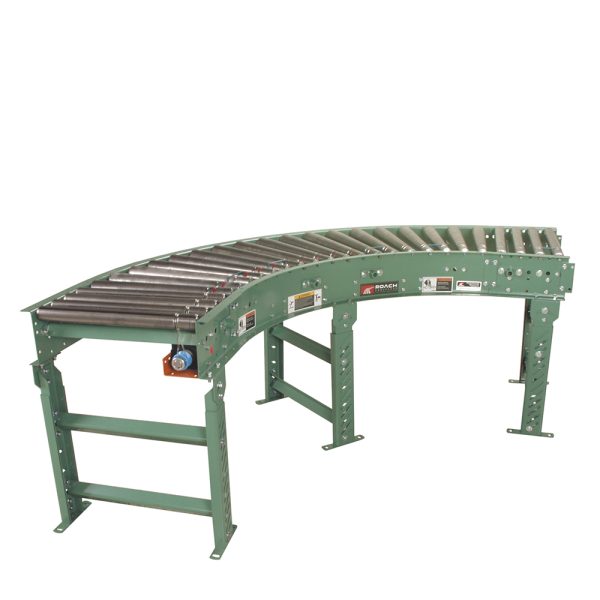

796LSC | Line Shaft Live Roller Conveyor Curve

Category:

Roach line shaft driven curve, module 796LSC, features tapered rollers to help maintain product orientation and is designed to be driven from 796LS line shaft driven conveyor, thus reducing the overall number of drives required.

Specifications

TREAD ROLLERS: 2-1/2” dia. to 1-11/16” dia. 14 ga. steel tapered rollers model 254T.

DRIVE BELT: 3/16” dia. polyurethane belts; nominal 15 lbs. per roller drive.

DRIVE SHAFT: 1″ dia. C1018 cold rolled steel shaft.

COUPLINGS: Located on both, one, or no ends.

UNIVERSAL JOINTS: 4 per 90° and 60° curve; 2 per 45° and 30° curve.

TANGENTS: 1’-0” both ends on 60° and 90°; 1’-6” both ends on 30° and 45°. 1’-0” infeed, 1’-0” discharge and no center tangent on 180°. Tangent roller centers 3” RC.

SIDE CHANNEL: 7” x 1-1/2” x 12 ga. formed steel channel frame.

FLOOR SUPPORTS: Optional
