450BOS | Dual Lane Slider Bed

Category:

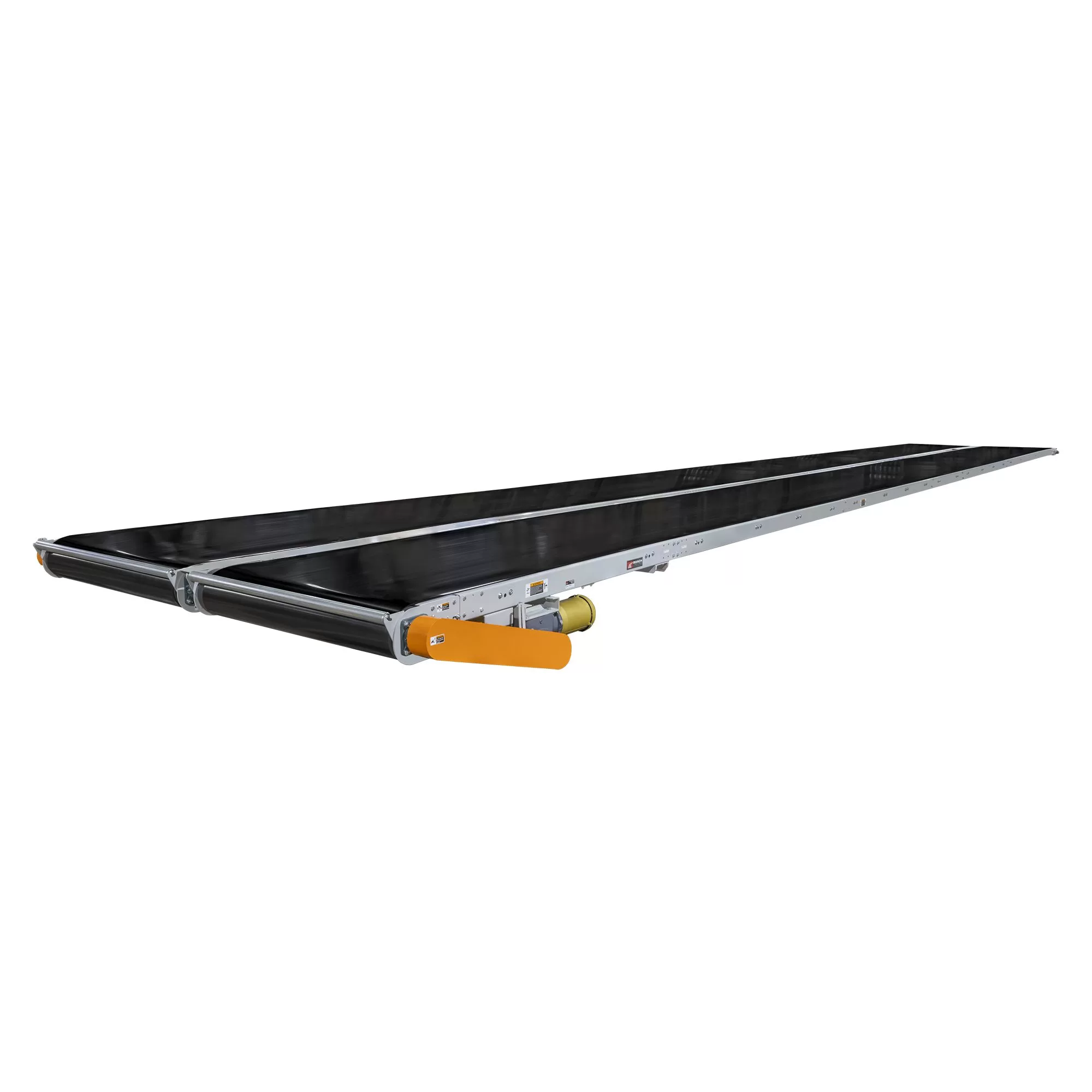

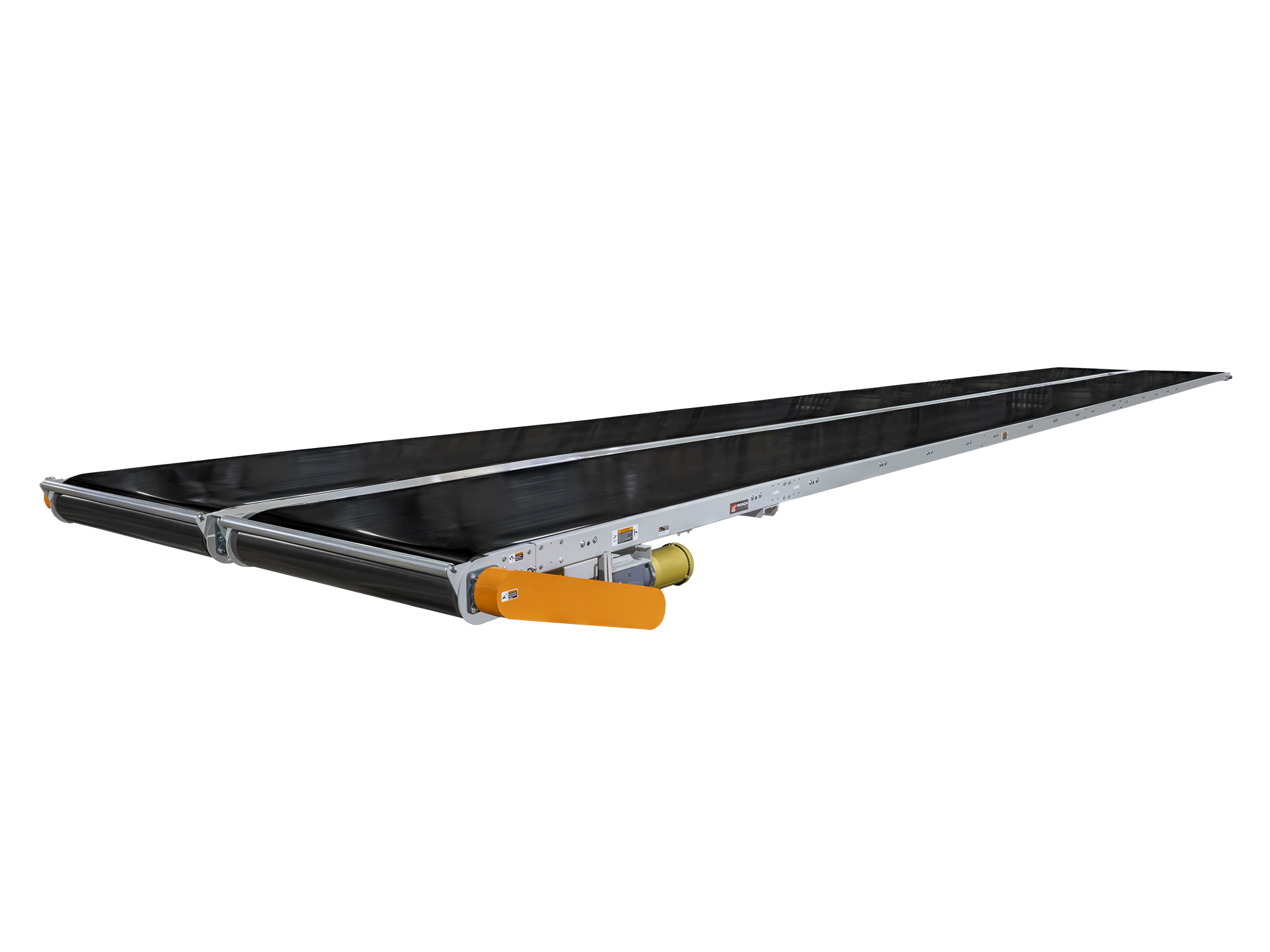

Designed to transport large pieces of vinyl flooring, this custom painted Slider Bed Conveyor transports material down dual 60′ belt lanes. The 450BOS offers a smooth work surface, ideal for workers stationed beside this conveyor. The 450BOS is an economical choice for tasks such as packing, testing and inspecting.

Specifications

BELTING: PVC-120 black.

DRIVE PULLEY: 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged.

TAIL PULLEY: 4″ dia., crowned, with 1-3/16″ dia. shaft.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

TAKE-UP: Screw type unit at tail pulley provides 12″ belt take-up.

BEARINGS: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.

RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, adjustable.

BELT SPEED: 60 FPM, constant.

BED: 60' Length, 108" OAW

FLOOR SUPPORTS: Optional

MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.

ROLLER CHAIN: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.

SAFETY POP-OUT ROLLERS: Mounts into slot on bracket for safety design. Use of connector bracket eliminates dangerous pinch points.

ELECTRICAL CONTROLS: Optional

CUSTOM PAINT: RAL 7038 Agate Grey, RAL 2009 Traffic Orange
