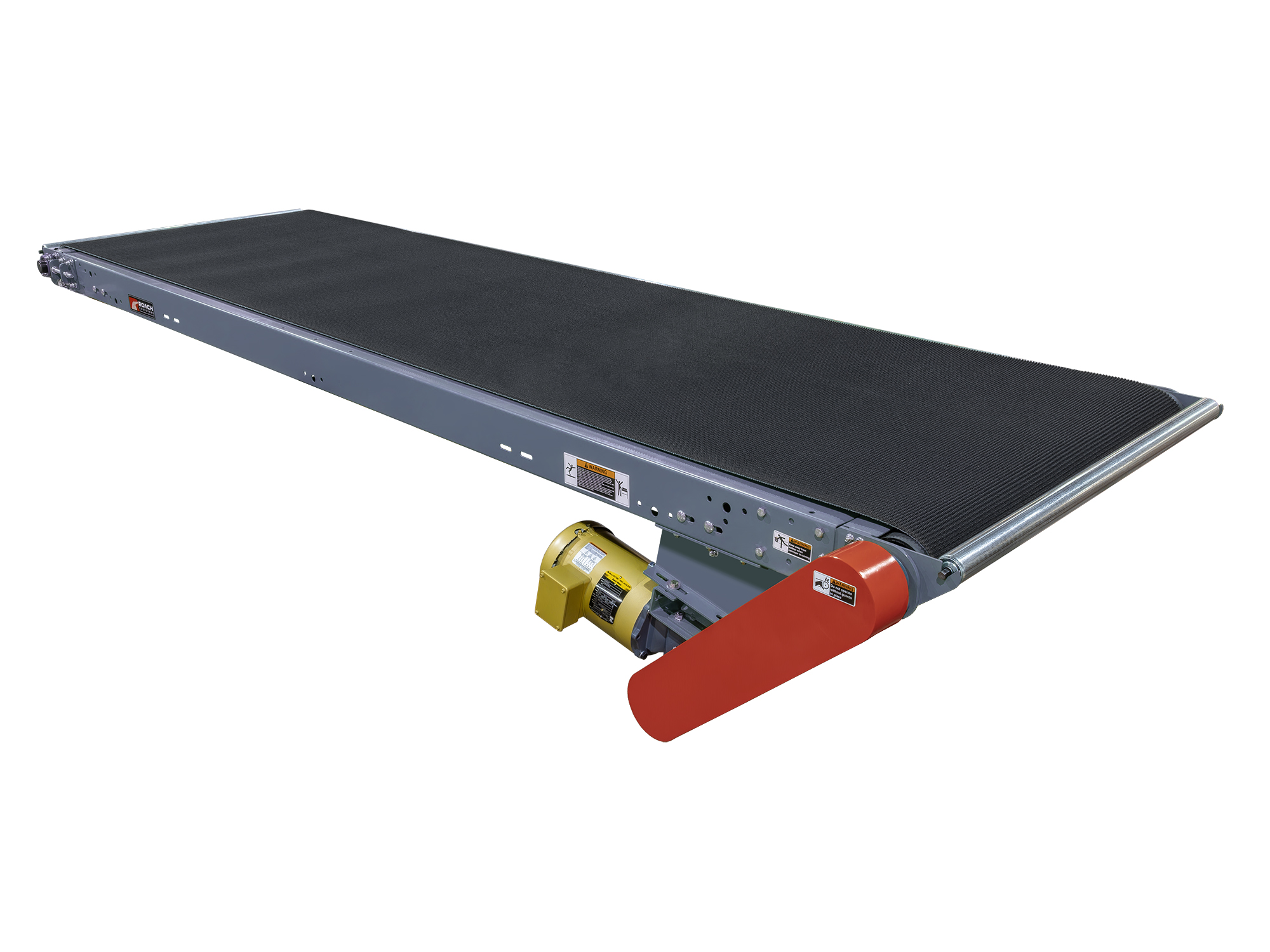

450BOS | Box-Style Slider Bed Belt Conveyor

Model 450BOS slider bed belt conveyor is one of the most popular and common means of transporting goods for packing, testing, inspecting and a variety of assembly line operations. 450BOS features a box style slider bed, ideal for workers stationed alongside the conveyor.

Specifications

BELTING: PVC-120 black.

DRIVE PULLEY: 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged.

TAIL PULLEY: 4″ dia., crowned, with 1-3/16″ dia. shaft.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

TAKE-UP: Screw type unit at tail pulley provides 12″ belt take-up.

BEARINGS: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.

RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, adjustable.

BELT SPEED: 60 FPM, constant.

BED: 4-1/2″” x 12 ga. channel frame with 14 ga. slider bed 9″-27″ BF; 12 ga. bed 33″ BF and above with bed pan braces.

FLOOR SUPPORTS: Optional

MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.

ROLLER CHAIN: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.

SAFETY POP-OUT ROLLERS: Mounts into slot on bracket for safety design. Use of connector bracket eliminates dangerous pinch points.

ELECTRICAL CONTROLS: Optional

450BOS

Model 450BOS slider bed belt conveyor is one of the most popular and common means of transporting goods for packing, testing, inspecting and a variety of assembly line operations. 450BOS features a box style slider bed, ideal for workers stationed alongside the conveyor.

Specifications

BELTING: PVC-120 black.

DRIVE PULLEY: 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged.

TAIL PULLEY: 4″ dia., crowned, with 1-3/16″ dia. shaft.

END DRIVE: Allows one-direction (unit) operation; add optional center drive for reversible application.

TAKE-UP: Screw type unit at tail pulley provides 12″ belt take-up.

BEARINGS: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.

RETURN ROLLERS: 1.9″ dia. x 16 ga. steel, model 196S, adjustable.

BELT SPEED: 60 FPM, constant.

BED: 4-1/2″” x 12 ga. channel frame with 14 ga. slider bed 9″-27″ BF; 12 ga. bed 33″ BF and above with bed pan braces.

FLOOR SUPPORTS: Optional

MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.

ROLLER CHAIN: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.

SAFETY POP-OUT ROLLERS: Mounts into slot on bracket for safety design. Use of connector bracket eliminates dangerous pinch points.

ELECTRICAL CONTROLS: Optional

450BOS

Accumulation Conveyors(9)

Accumulation

Belt Conveyors(10)

Belt Conveyors

Belt Driven Live Roller(7)

Belt Driven Live Roller

Chain Driven Live Roller(11)

Chain Driven Live Roller

Flexible Conveyors(2)

Flexible Conveyors

Gravity Conveyors(19)

Gravity Conveyors

Line Shaft(9)

Line Shaft

MDZ | Motor Driven Zone Accumulator(2)

MDZ | Motor Driven Zone Accumulator

Parts Conveyor(3)

Parts Conveyor

Plastic Belt(9)

Plastic Belt

Powered Roller(13)

Powered Roller

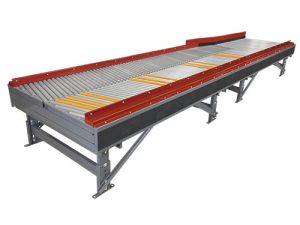

Singulation(1)
