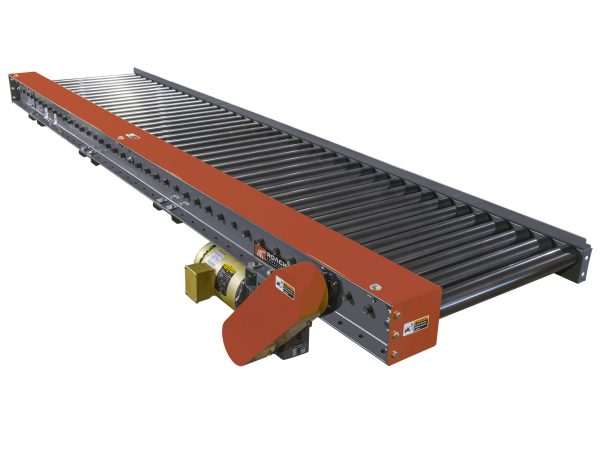

251CDLR | Chain Driven Live Roller Heavy Duty Conveyor

Model 251CDLR is a heavy duty chain driven live roller conveyor, specifically designed to transport heavy loads such as tote pans, castings, drums, pallet loads, etc. It is especially suited for carrying loads in the presence of oil and other such contaminates.

Specifications

TREAD ROLLERS: 2-1/2″ dia. x 11 ga. steel rollers, model 251S with sprockets.

CHAIN DRIVE: Roll-to-roll no. 60 roller chain.

ROLLER CENTERS: 4-1/2″, 6″, 9″ or 12″.

CENTER DRIVE: Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units.

BED: 6″ x 1-1/2″ x 7 ga. and 4″ x 1-1/2″ x 7 ga. formed steel channel frame. Bed sections attached with couplings and floor supports.

MOTOR DRIVE: 3/4 HP, 230/460/3, 60 cycle, ODP right angle gear motor.

BEARINGS: Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth sealed. Roller bearings provide roller capacity of 540 lbs. per roller (maximum).

CHAIN GUARD: The chain drive is completely enclosed along the entire length of the conveyor.

SPEED: 35 FPM, constant.

BED LENGTHS (4-1/2″ or 9″ RC): Intermediate bed section lengths 3′-0″, 3′-9″, 4′-6″, 5′-3″, 6′-0″, 6′-9″, 7′-6″, 8′-3″, 9′-0″ and 9′-9″ increments. Minimum overall conveyor length with drive 5′-3″. Maximum overall conveyor length: 58′-6″ with 4-1/2″ RC; 78′-0″ with 9″ RC.

BED LENGTHS (6″ or 12″ RC): Intermediate bed section lengths are available in 1′-0″ increments. Minimum overall conveyor length with drive 5′-0″. Maximum overall conveyor length 80′-0″.

FLOOR SUPPORTS: Optional

ELECTRICAL CONTROLS: Optional
