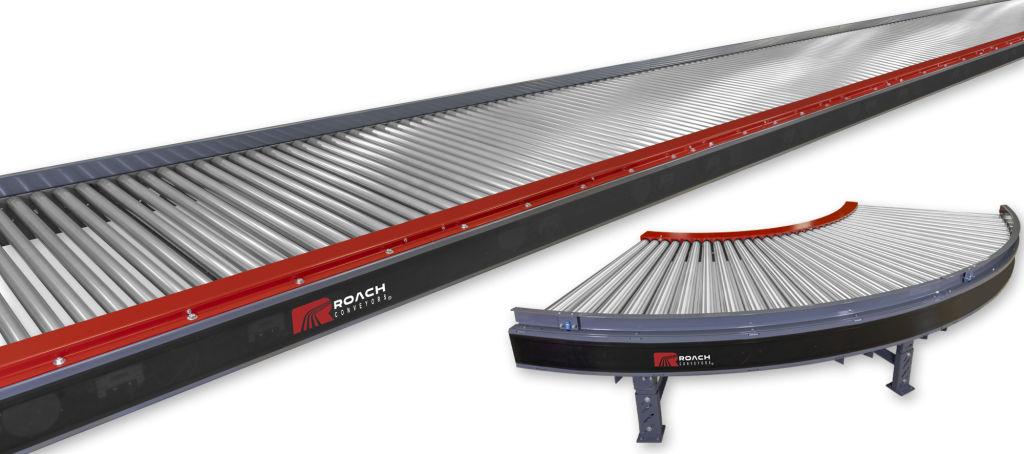

796MDZ
MOTOR DRIVEN ZONE ACCUMULATION
35-120 FPM
70 lbs. per Zone Capacity
15”- 39” Conveying Surface
24vdc Brushless Motor System
Precision ABEC Rollers
Lightbar Zone Accumulation
Low Decibel Motors
The Motor Driven Zone Accumulator (MDZ) delivers a simple, efficient, and low-maintenance solution for controlled product flow across a wide range of applications including parcel handling, e-commerce fulfillment, airport operations, packaging, and distribution systems.
Powered by the low-profile Unidrive motor system, the MDZ is band-driven for smooth, near-silent operation and high-speed precision. Each accumulation zone supports up to 70 lbs per zone and moves 35–120 fpm, ensuring optimal performance for a variety of load sizes and throughput requirements.
Engineered to enhance efficiency, reduce downtime, and improve material flow, the MDZ provides precise control of sorting, packaging, quality inspection, and load balancing through light bar monitored accumulation zones.
SPECIFICATIONS
| LOAD CAPACITY | 70 lbs/zone |
| SPEED | 35 - 120 FPM |
| ROLLER SIZE | 1.9 in |
| ROLLER TYPE | OD Galvanized Grooved Rollers |
| ROLLER CENTERS | 3 in |
| WIDTH | 15” | 19“ | 21” | 25“ | 27” | 33“ | 39” BF |

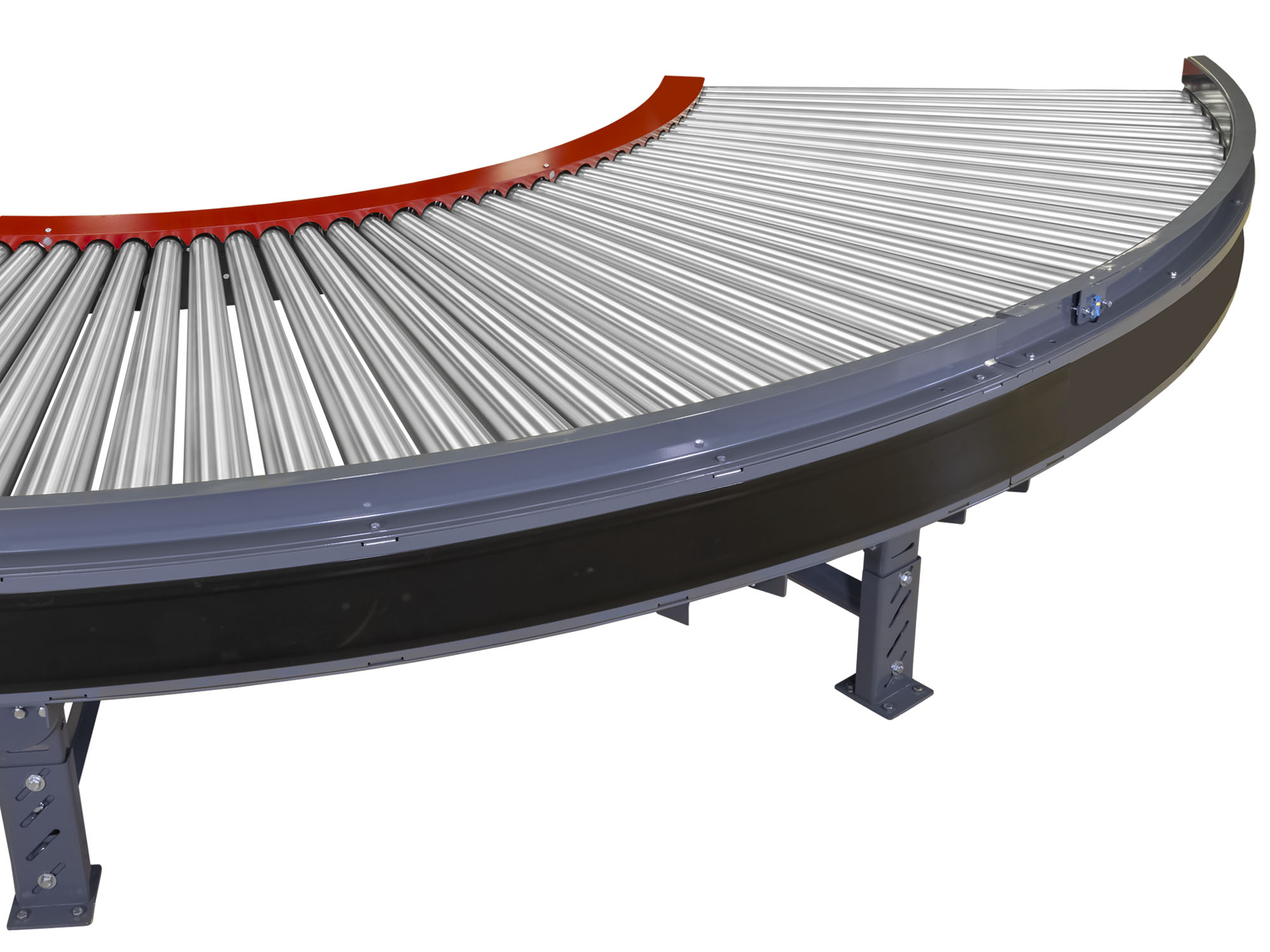

| CURVES | 30° | 45° | 60° | 90° |
| INSIDE CURVE RADIUS | 15”-27“ BF/32 1/2” IR | 33“-39” BF/48“ IR |
| LENGTH | 10 ft |
| IN-FEED HEIGHT | 32 - 48 in |
| DISCHARGE HEIGHT | 32 - 48 in |
| CONSTRUCTION | 17” x 1 7/8” x 12ga Formed Channel Frames |
| MOTOR | 24vdc Brushless Motor System |
| POWER SUPPLY AMP/ZONES | 6A/Zones 1–2 | 10A/Zones 3–8 | 20A/Zones 9–17 |
| DRIVE BELT | 3/16” dia. Polyurethane Nominal 15 lbs/roller |
| ACCUMULATION | Optional Lightbar Monitored Accumulation Zones |
| ACCUMULATION ZONES | 24” and 30” long zones available, depending on roller centers. |
| E-STOPS | Optional |
| FLOOR SUPPORTS | Optional - Supports, knee braces, casters and polytier supports |
| CEILING HANGERS | Optional - 5/8” dia. threaded rod with hardware to attach rods to conveyor. Provides 6’ clearance |
DETAILS
ACCESORIES / OPTIONS
Guard Rails
Coated Rollers

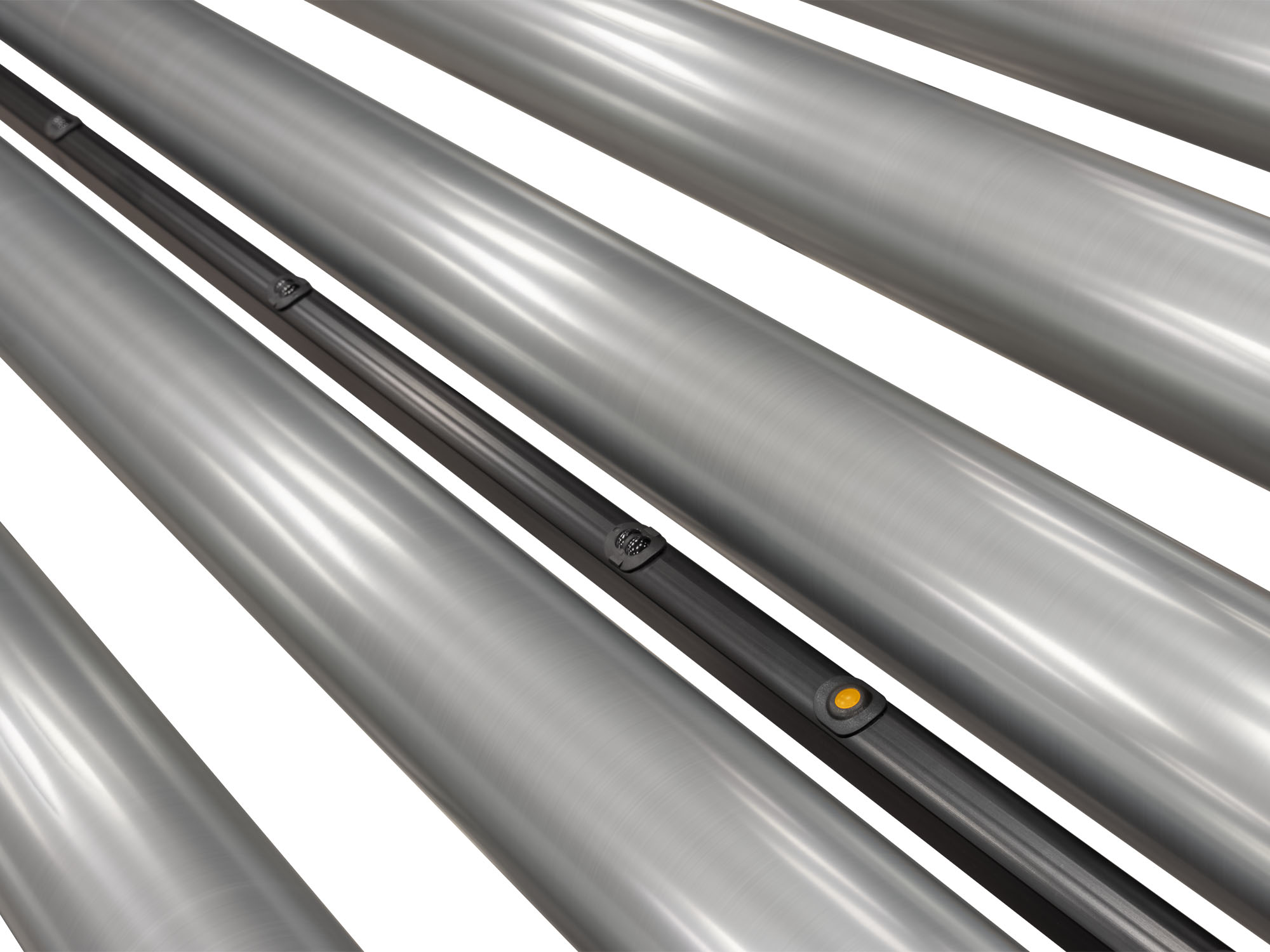

Lightbar Accumulation
E-Stops
ABEC Sealed Precision Bearings
APPLICATIONS

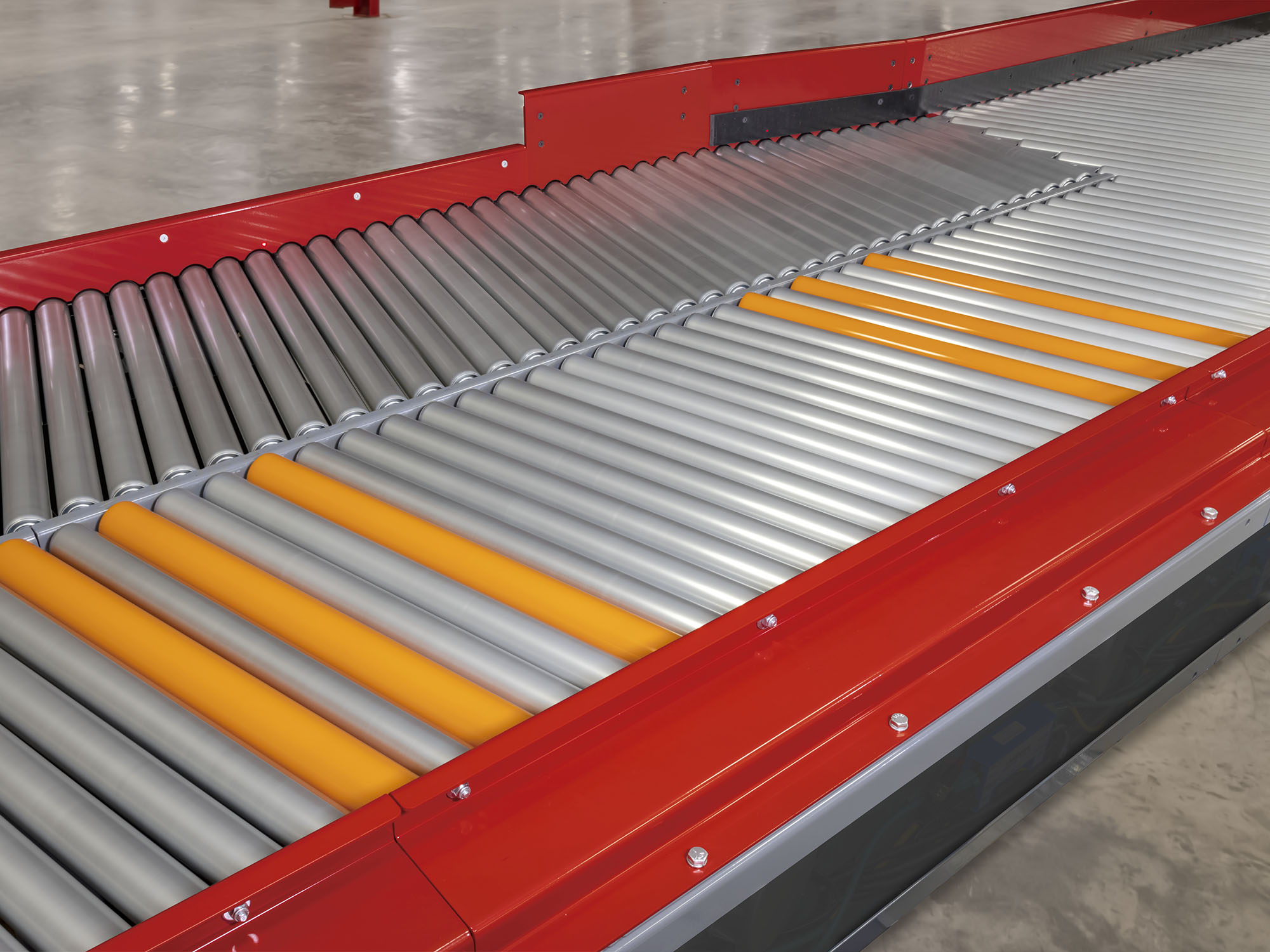

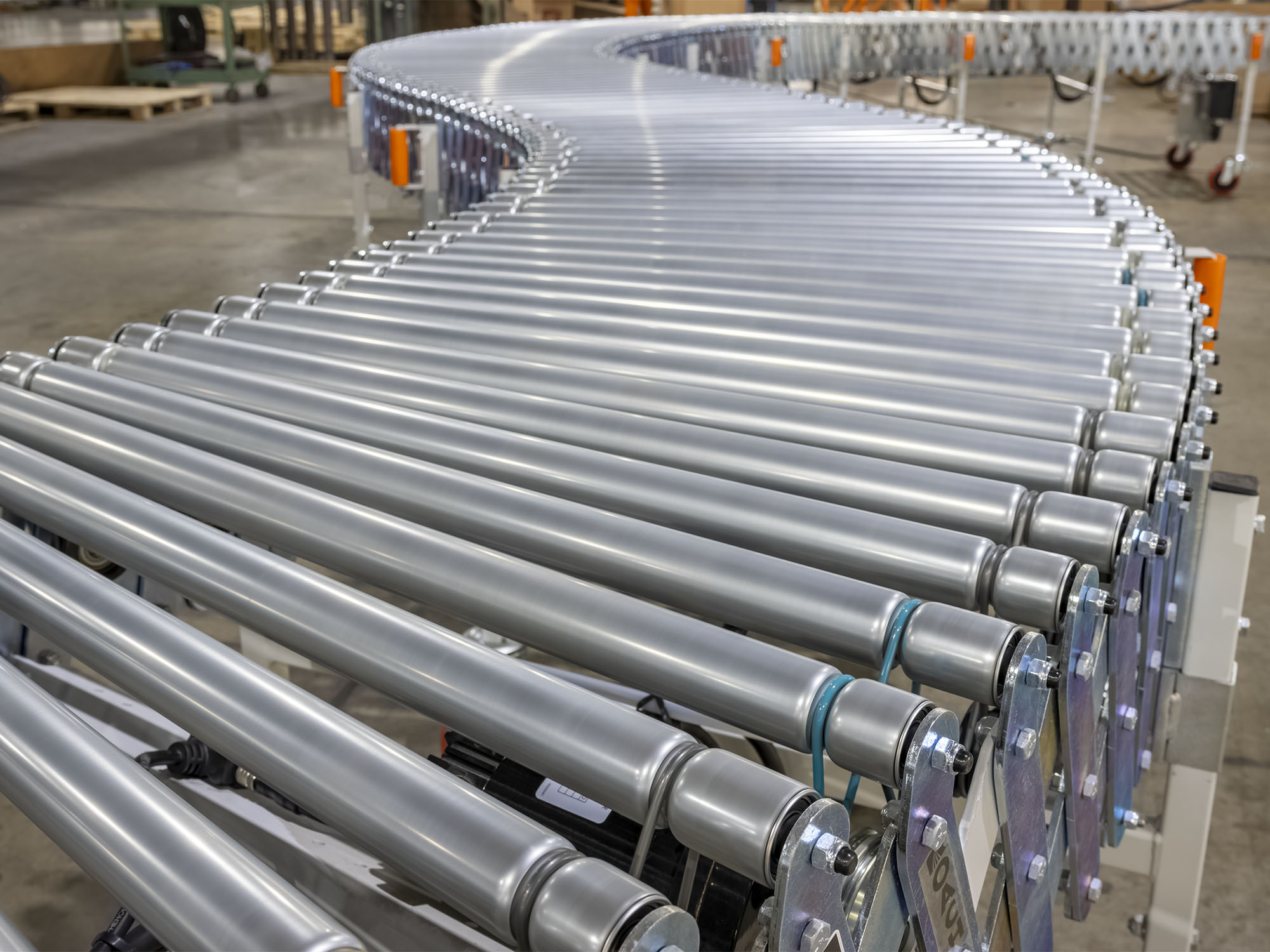

Parcel & Package
E-Commerce & Distribution
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
