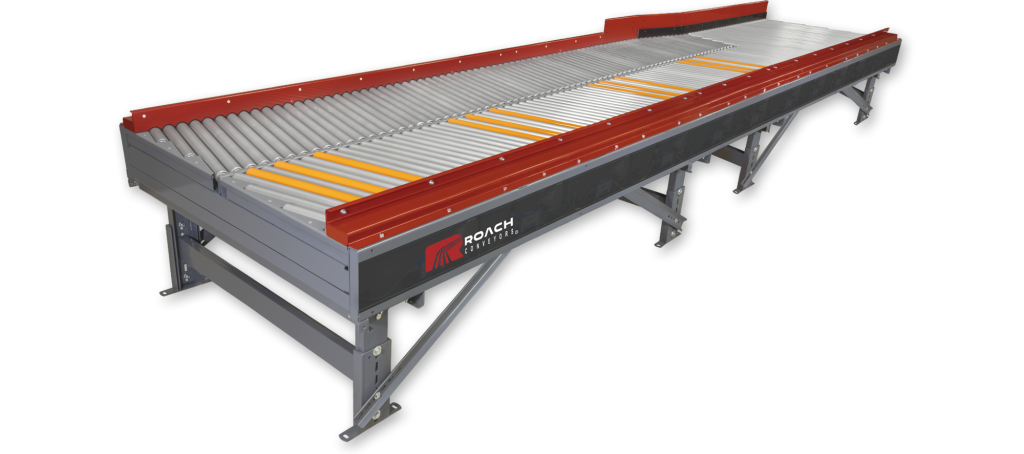

GATOR SINGULATOR

PRODUCT ENTERS SCRAMBLED - EXITS SINGLE FILE

- Parcel & Presorting

- 450 ft/m

- 6,500 Packages & Polybags/hr

- 24vdc Brushless Motor System

- High Speed Precision

- 48" Conveying Surface

Designed for parcel & pre-sorting, the Gator Singulator runs 450 ft/m & handles up to 6,500 packages & polybags per hr making it one of the fastest singulation units available.

As product enters the conveyor from multiple lines the singulator descrambles the packages. Two sets of skewed rollers move the packages toward the center of the conveyor where they rotate to a lengthwise orientation. Multiple speed changes occur as packages proceed to the discharge end, allowing the products to space and exit in a single file.

Dual center drives run 2 lanes of 1.9” dia. high-speed precision rollers. The rollers are skewed toward the center in a herringbone pattern driven by XLD drive bands, which allow for more rollers per motor at higher loads. The 48” conveying surface is band driven by a low-profile 24v brushless motor system for High-speed precision & near silent operation.



SPECIFICATIONS

LOAD CAPACITY50 lbs/ft
INFEED SPEED60 FPM
DISCHARGE SPEEDUp to 450 FPM
ROLLER TYPEOD Galvanized Grooved Rollers
ROLLER CENTERS2.1 in
BETWEEN FRAME56 in
CONVEYING SURFACE48 in
LENGTH16-20 ft
IN-FEED HEIGHT32 in
DISCHARGE HEIGHT32 in
CONSTRUCTION10” x 1 1/2” x 10ga Formed Channel Frames
SUPPORTSHeavy Duty Structural
CASTERSRubber Swivel Caster w/ Brake Lock & Swivel Lock
MOTOR24V DC Brushless Motor System
E-StopsOptional

DETAILS

ACCESORIES / OPTIONS

Guard Rails
Coated Rollers
Laser Sensors
E-Stops
ABEC Sealed Precision Bearings

PARCEL MODULES / SOLUTIONS

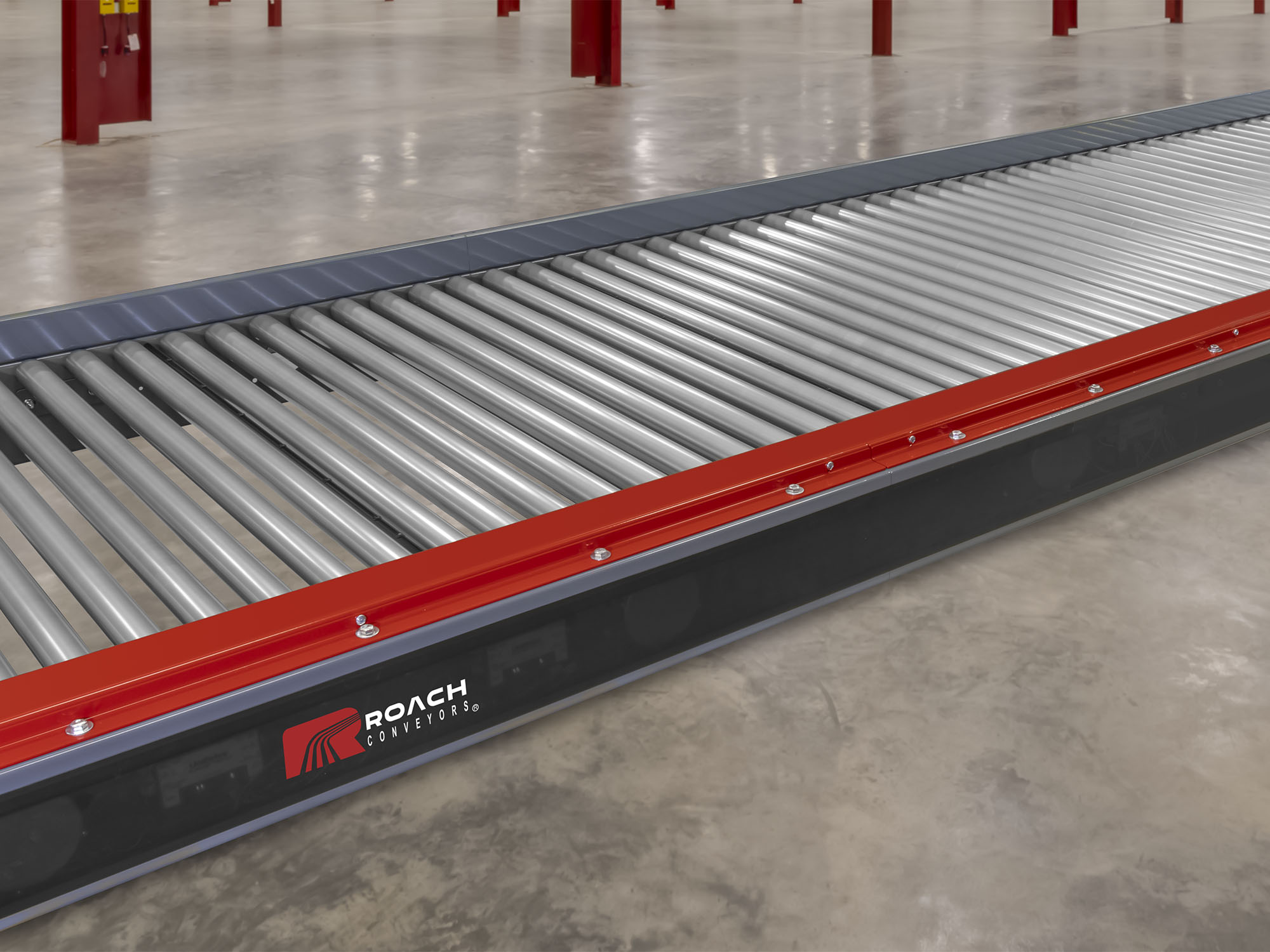

MDZ | Motor Driven Zone Accumulation
MCS | Modular Connect System
Cull Belts
Scan Belts
PowerFlex

WARRANTY

Electrical: 12 Months
Mechanical: 24 Months

SERVICES

Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
