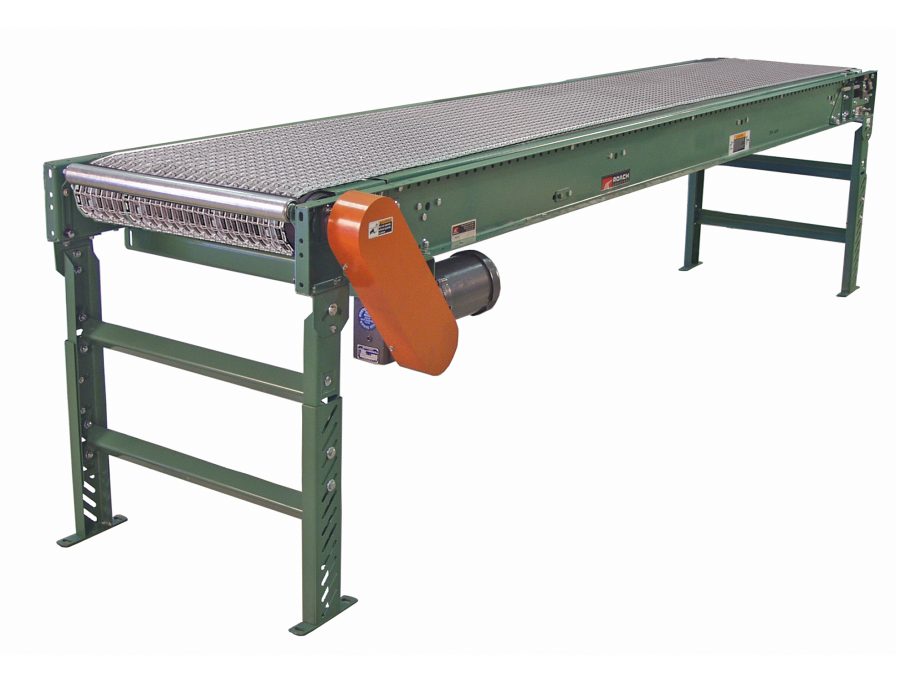

The 700SBW model is a general purpose wire mesh belt conveyor designed to move hot, cold, oily, or otherwise challenging products through continuous process environments. Its woven wire mesh belt is supported within a formed channel frame with UHMW wear strips and adjustable return rollers to promote reliable belt alignment and long service life.
This conveyor configuration is appropriate for operations where airflow or fluid passage through the belt is necessary for cooling, heating, washing, or drying products. Standard drive and return components allow integration with upstream and downstream conveyors in industrial lines. Different mesh materials and belt options may be selected based on product weight and process conditions.
Applications
- Oven and heat processing lines
- Cooling and drying conveyors
- Washdown and sanitation systems
- Spray coating or rinsing operations
- Product curing or conditioning processes
Industries
- Food processing and baking
- Packaging and converting
- Industrial manufacturing
- Chemical and coating operations
- Automotive and metalworking processes
SPECIFICATIONS
| BELTING | 1/2 in x 1 in x 11 ga clinched edge, galvanized wire mesh belt |
| DRIVE SPROCKETS | 4 in dia sprocket with 1-3/16 in dia shaft or 8 in dia sprocket with 1-7/16 in dia shaft |
| TAIL SPROCKETS | 4 in dia sprocket with 1-3/16 in dia shaft |
| END DRIVE | One-direction unit operation |
| TAKE-UP | Screw type unit at tail end provides 12 in belt take-up |
| RETURN ROLLERS | 1.9 in dia x 16 ga steel, model 196S, adjustable |
| BED / FRAME | 7 in x 1-1/2 in x 10 ga formed channel frame with UHMW wear strips |
| FLOOR SUPPORTS | Optional |
| BEARINGS | Drive and tail shaft bearings are precision, heavy duty, lubricated ball bearing units with cast iron housings |
| BELT SPEED | 60 FPM, constant |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CHAIN | Drive shaft driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives; chain take-up provided on motor base |
DETAILS
ACCESORIES / OPTIONS
Belting
Floor Supports
Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
