The 796PRA-2PV and 796PRA-3PV incorporate Poly-V belt drives into the larger 796PRA platform, enhancing power transfer through belt adhesion across multiple rollers. These drive bands increase torque for higher load capacity per zone while maintaining the zero pressure accumulation operation.

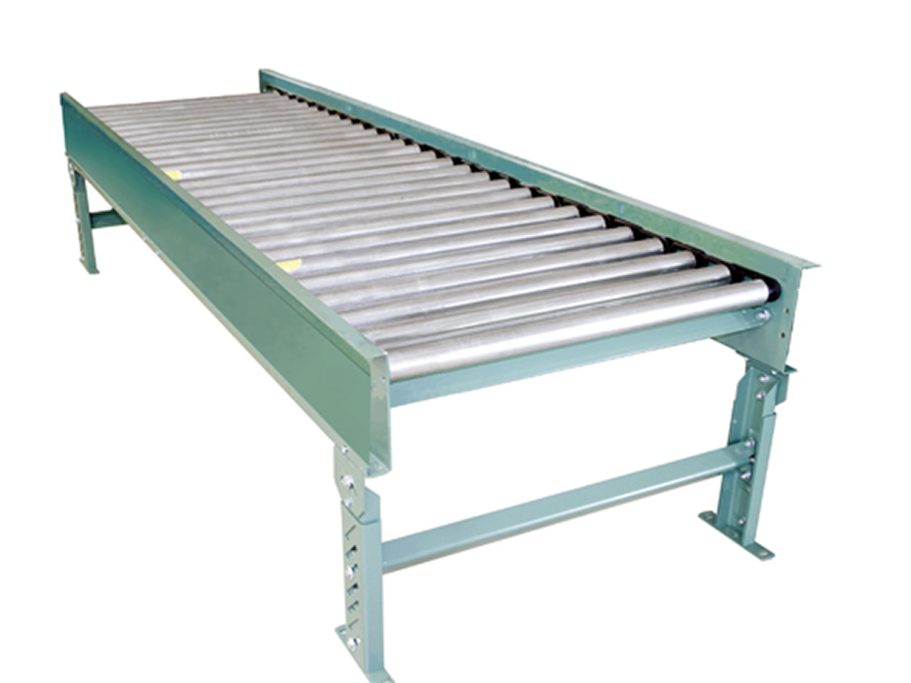

Rollers set low in the 7-inch frame provide a broad conveying surface that supports larger cartons and unit loads. The 2-rib Poly-V variant supports moderate loads, while the 3-rib configuration enables heavier zone capacities at controlled speeds.
Applications
- Carton and tote conveying
- Accumulation and buffering between processes
- Sortation and routing operations
- Order fulfillment and distribution
- Packaging and labeling lines
Industries
- Distribution and warehousing
- E-commerce and fulfillment
- Manufacturing and assembly
- Packaging operations
- Logistics and material handling
SPECIFICATIONS
| TREAD ROLLERS | 1.9 in. dia. x 16 ga. galvanized, model 196G with Poly-V belt drive adapter |
| DRIVE BELT | 796PRA-2PV: 2 rib Poly-V belt; 796PRA-3PV: 3 rib Poly-V belt |
| CAPACITY | 2 rib Poly-V belt: 110 lbs per zone at 60 FPM (maximum capacity). 3 rib Poly-V belt: 350 lbs per zone at 53 FPM (maximum capacity) |
| ROLLER CENTERS | 3 in. or 4 in. |
| BED / FRAME | 7 in. x 1-3/4 in. x 12 ga. formed steel channel frame, rollers set low in frame |
| SPEED | 60 FPM constant |
| ACCUMULATION | Zone singulation operation, 36 in. zone length, photoeye actuated |
| MOTOR DRIVE | Driven by 24V DC Powered Roller |
| BEARINGS | Precision ABEC bearings |
| DC POWER SUPPLY | 24 volt fixed output required |
DETAILS
ACCESORIES / OPTIONS
Zone Lengths
Floor Supports
Ceiling Hangers
Speed
Motors
Defused Smart Zone®
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
