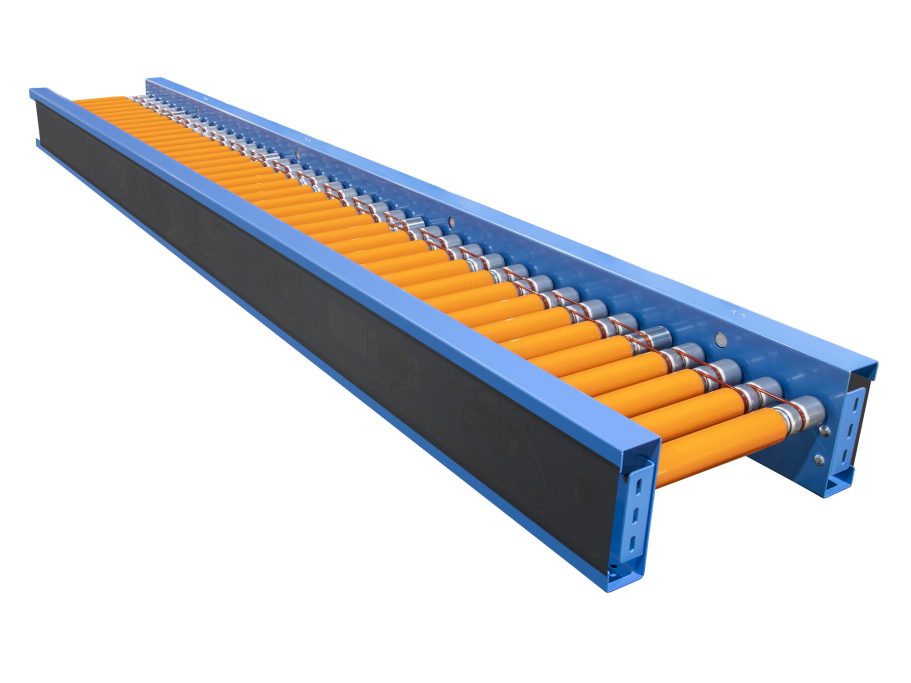

The 796PRA applies a similar powered roller accumulation concept to a larger bed design, using 24 V roller motors with rollers set low in a 7-inch formed steel channel frame. Zone singulation accumulation is photoeye actuated over standard zone lengths, and precision bearings ensure smooth roller motion.
The larger bed provides increased structural support and stability for wider products or slightly higher capacity layouts. Poly-V drive options are available on many 796 series units to increase torque transmission and support heavier conveyed loads.
Applications
- Carton and tote conveying
- Accumulation and buffering between processes
- Sortation and routing operations
- Order fulfillment and distribution
- Packaging and labeling lines
Industries
- Distribution and warehousing
- E-commerce and fulfillment
- Manufacturing and assembly
- Packaging operations
- Logistics and material handling
SPECIFICATIONS
| TREAD ROLLERS | 1.9 in. dia. x 16 ga. galvanized, model 196G grooved |
| DRIVE BELT | 3/16 in. dia. polyurethane belts, nominal 15 lbs per roller drive |
| CAPACITY | 15 lbs per roller or up to 70 lbs per zone |
| SPEED | 60 FPM constant |
| ROLLER CENTERS | 3 in. |
| BED / FRAME | 7 in. x 1-3/4 in. x 12 ga. formed steel channel frame, rollers set low in frame |
| ACCUMULATION | Zone singulation operation, 24 in. zone length, photoeye actuated |
| MOTOR DRIVE | Driven by 24V DC Powered Roller |
| BEARINGS | Precision ABEC bearings |
| DC POWER SUPPLY | 24 volt fixed output required |
DETAILS
ACCESORIES / OPTIONS
Zone Lengths
Floor Supports
Ceiling Hangers
Speed
Motors
Defused Smart Zone®
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
