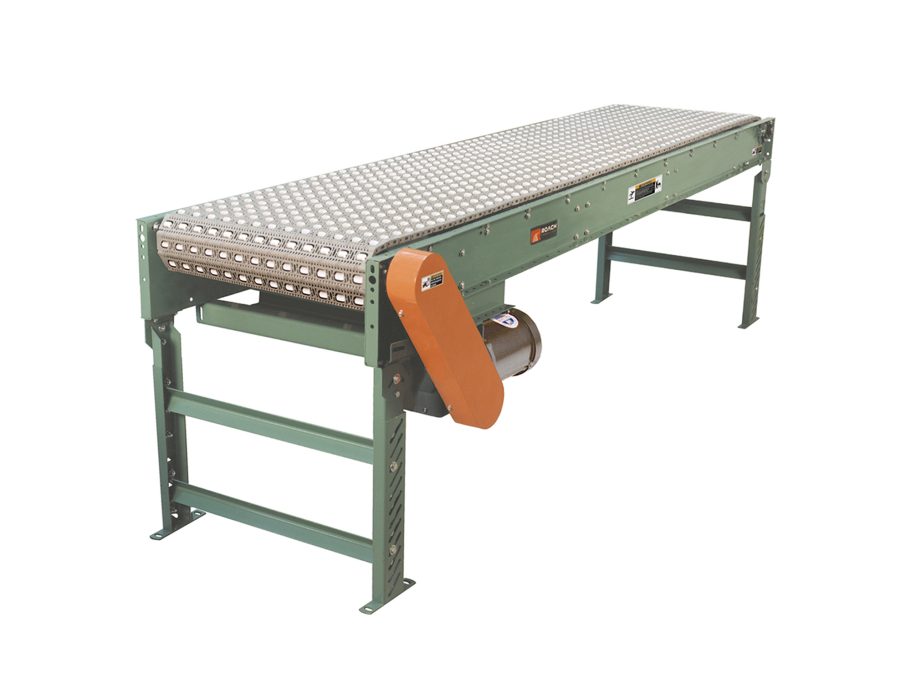

The 700RT inline roller top plastic belt conveyor integrates roller elements within the belt surface to support product movement and low back pressure accumulation. The combination of modular belt and embedded rollers enables accumulation without excessive resistance, reducing product stress on assembly lines or workstations.
This design is appropriate for applications where both conveyor transport and temporary queuing of items are necessary, such as in assembly or inspection zones.
Applications
- Product transport through packaging lines
- Accumulation and buffering between processes
- Inclined conveying of cartons or components
- Curved routing around equipment
- Handling of small parts, containers, and packaged goods
Industries
- Food and beverage processing
- Packaging and labeling
- Manufacturing and assembly
- Plastics and molded products
- Pharmaceutical and personal care
- Distribution and material handling
SPECIFICATIONS
| BELTING | Series 400 roller top gray polypropylene belt, FDA approved |
| DRIVE SPROCKETS | 7.8 in. pitch dia. with 1.5 in. square bore. Optional 10.1 in. pitch dia. sprockets with 1.5 in. or 2.5 in. square bore |
| TAIL SPROCKETS | 7.8 in. pitch dia. with 1.5 in. square bore. Optional 10.1 in. pitch dia. sprockets with 1.5 in. or 2.5 in. square bore |
| END DRIVE | Allows one-direction operation |
| BEARINGS | Precision heavy duty lubricated ball bearing units with cast iron housings |
| BED / FRAME | 7 in. x 1-1/2 in. x 10 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels |
| TAKE-UP | Catenary type located at discharge end |
| RETURN ROLLERS | 1.9 in. dia. x 16 ga. steel rollers, model 196S, adjustable with rubber sleeves |
| BELT SPEED | 60 FPM constant |
| FLOOR SUPPORT | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CHAIN | Drive shaft driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up on motor base |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Floor Supports
Ceiling Hangers
Guard Rails
Belt Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
