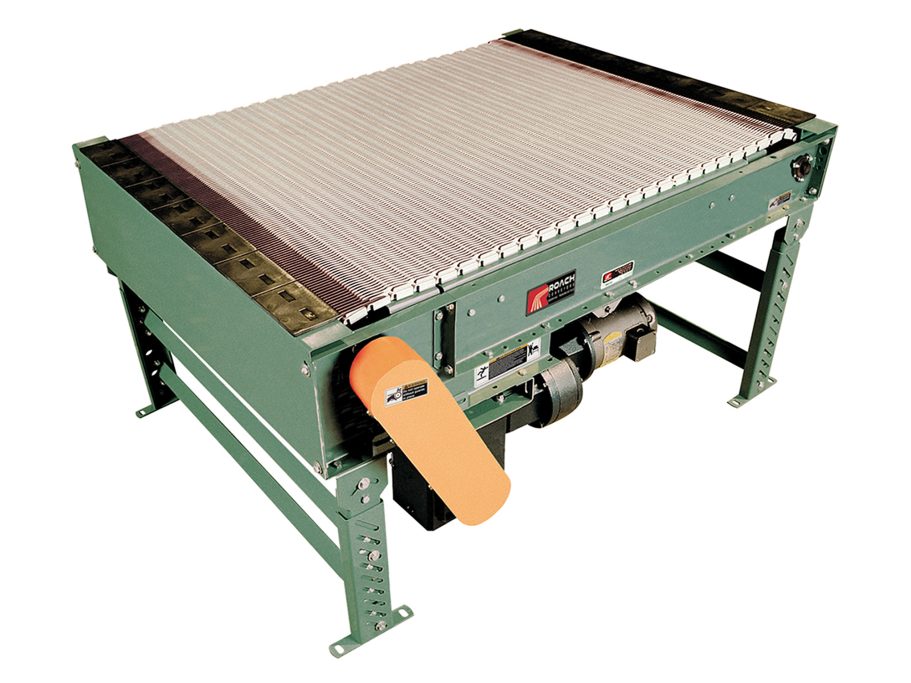

The 700RR raised rib plastic belt conveyor uses a belt with elevated ribs to help stabilize products that may otherwise shift or topple during movement. Raised ribs provide lateral control of small or unstable items such as bottles, cans, or small parts, improving alignment and reducing misalignment events.
This model is suitable for production lines where product stability is critical, including feed to inspection, labeling, or packaging systems.
Applications
- Product transport through packaging lines
- Accumulation and buffering between processes
- Inclined conveying of cartons or components
- Curved routing around equipment
- Handling of small parts, containers, and packaged goods
Industries
- Food and beverage processing
- Packaging and labeling
- Manufacturing and assembly
- Plastics and molded products
- Pharmaceutical and personal care
- Distribution and material handling
SPECIFICATIONS
| BELTING | Series 400 raised rib gray polypropylene belt, FDA approved. Finger transfer plates provided at both ends to facilitate smooth product transfer |
| DRIVE SPROCKETS | 7.8 in. pitch dia. with 1.5 in. square bore. Optional 10.1 in. pitch dia. sprockets with 1.5 in. or 2.5 in. square bore |
| TAIL SPROCKETS | 7.8 in. pitch dia. with 1.5 in. square bore. Optional 10.1 in. pitch dia. sprockets with 1.5 in. or 2.5 in. square bore |
| END DRIVE | Allows one-direction operation |
| BEARINGS | Precision heavy duty lubricated ball bearing units with cast iron housings |
| BED / FRAME | 7 in. x 1-1/2 in. x 10 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels |
| TAKE-UP | Catenary type located at discharge end |
| RETURN ROLLERS | 1.9 in. dia. x 16 ga. steel rollers, model 196S, adjustable with rubber sleeves |
| BELT SPEED | 60 FPM constant |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CHAIN | Drive shaft driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up on motor base |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Floor Supports
Guard Rails
Belt Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
