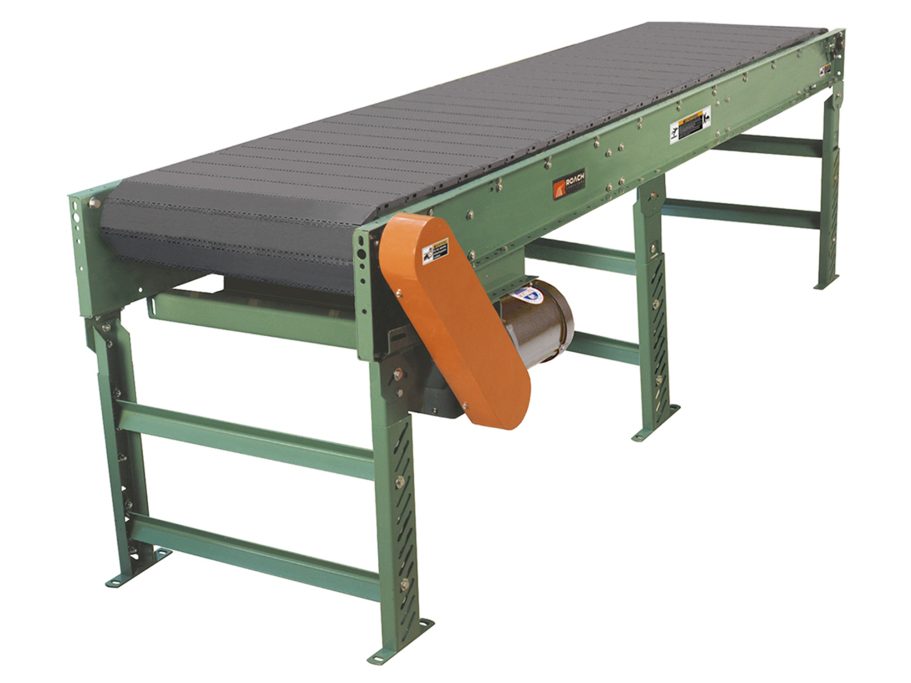

The 400PB heavy duty plastic belt conveyor uses Series 400 flat top belting to move heavier unit loads that may not be suited to standard conveyor designs. Flat top modular belt provides a continuous and stable surface for larger parcels, crates, or partially assembled units where rigid support is necessary.
This model supports industrial conveying requirements where durability and load support are essential, including integration with pallet or heavy case transport.
Applications
- Product transport through packaging lines
- Accumulation and buffering between processes
- Inclined conveying of cartons or components
- Curved routing around equipment
- Handling of small parts, containers, and packaged goods
Industries
- Food and beverage processing
- Packaging and labeling
- Manufacturing and assembly
- Plastics and molded products
- Pharmaceutical and personal care
- Distribution and material handling
SPECIFICATIONS
| BELTING | Series 400 flat top gray polypropylene belt, FDA approved |
| DRIVE SPROCKETS | 10.1 in. pitch dia. with 2.5 in. square bore |
| TAIL SPROCKETS | 10.1 in. pitch dia. with 2.5 in. square bore |
| END DRIVE | Allows one-direction operation |
| BEARINGS | Precision heavy duty lubricated ball bearing units with cast iron housings |
| BED / FRAME | 7 in. x 1-1/2 in. x 7 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels |
| TAKE-UP | Catenary type located at discharge end |
| RETURN ROLLERS | 1.9 in. dia. x 16 ga. steel rollers, model 196S, adjustable with rubber sleeves |
| BELT SPEED | 35 FPM constant |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CHAIN | Drive shaft driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Floor Supports
Ceiling Hangers
Guard Rails
Belt Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
