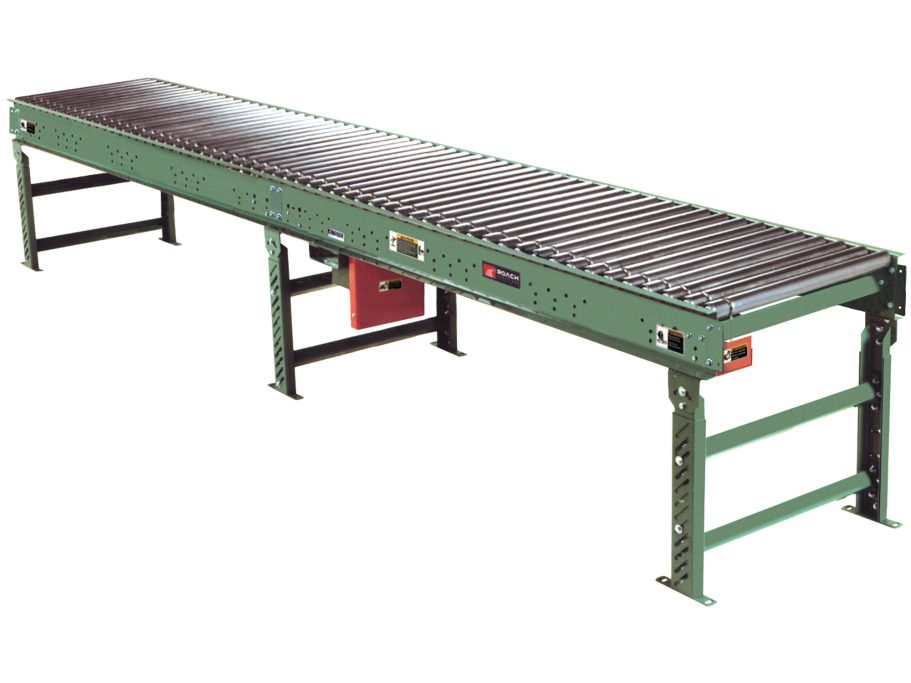

The 796LS represents a medium-duty line shaft live roller conveyor suitable for heavier carton and tote applications when compared with light-duty models. It utilizes 1.9” diameter grooved rollers and a single centralized drive that transmits power along the drive shaft to multiple rollers via polyurethane belts.
This conveyor supports integration with line shaft modules and accessories while maintaining stable, continuous motion at a constant speed. The formed steel channel frame and precision roller bearings enhance durability for repetitive use in manufacturing, warehousing, and distribution centers.
Applications
- Carton accumulation and release zones
- Order fulfillment conveyor lines
- Sortation in low to moderate speed systems
- Packaging and operations
- Transfer between processing stations
Industries
- Distribution and fulfillment
- E-commerce operations
- Light manufacturing
- Packaging and assembly
- Third-party logistics
SPECIFICATIONS
| BF | 15", 19", 21", 25", 27", 33", 39" |
| OAW | 18", 22", 24", 28", 30", 36", 42" |
| TREAD ROLLERS | 1.9" dia. x 16 ga. galvanized, model 196G grooved |
| DRIVE BELT | 3/16" dia. polyurethane belts; nominal 15 lbs. per roller drive |
| DRIVE SHAFT | 1" dia. C1018 cold rolled steel shaft |
| COUPLINGS | Located on both, one, or no ends |
| CENTER DRIVE | Reversible drive |
| BED / FRAME | 7" x 1-1/2" x 12 ga. formed steel channel frame |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| SPEED | 60 FPM |
| CHAIN | No. 50 roller chain |
| FLOOR SUPPORTS | Optional |
DETAILS
ACCESORIES / OPTIONS
Side Mounted Drive
Floor Supports
Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
