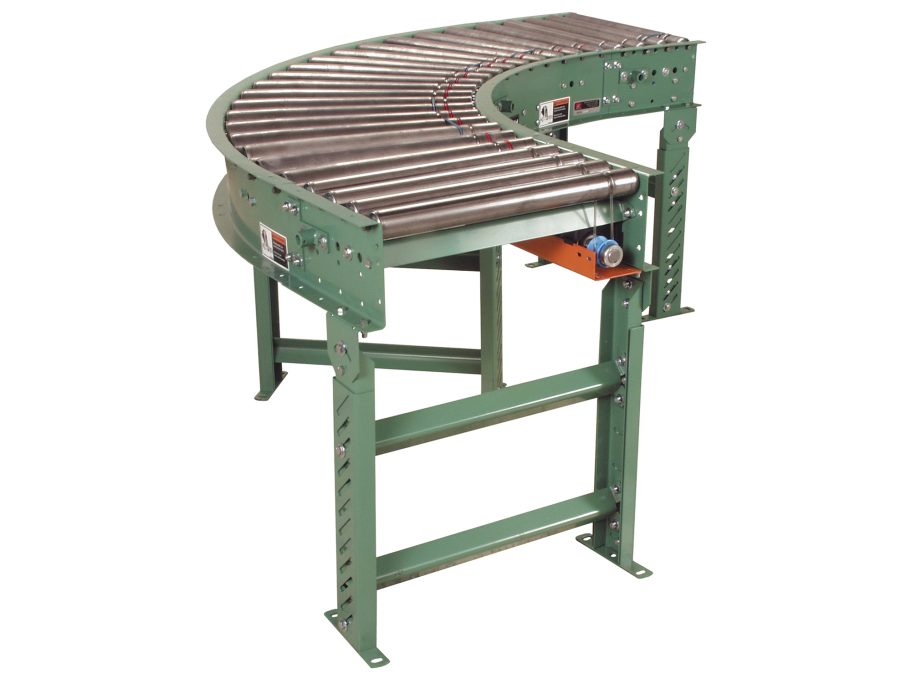

The 738LSC module extends the 738LS system into curved pathways, maintaining product orientation with tapered rollers that align loads through directional changes. This curve module is designed to be driven directly from a standard line shaft drive section, eliminating the need for additional motors.
Curved sections are critical where layout constraints require turns or deviations in material flow. For light loads typical of e-commerce fulfillment or small-part handling, this module ensures continuity of movement and integration with straight conveyor runs.
Applications
- Carton accumulation and release zones
- Order fulfillment conveyor lines
- Sortation in low to moderate speed systems
- Packaging and operations
- Transfer between processing stations
Industries
- Distribution and fulfillment
- E-commerce operations
- Light manufacturing
- Packaging and assembly
- Third-party logistics
SPECIFICATIONS
| BF | 90°, 60°, 45°, 30° - 10", 16", 22" |
| OAW | 90°, 60°, 45°, 30° - 10", 16", 22" |
| TREAD ROLLERS | 1.9" dia. to 1-3/8" 16 ga. tapered steel, model 138T w/ 5/16" hex, grooved |
| DRIVE BELT | 1/8" dia. polyurethane belts; nominal 7.5 lbs. per roller drive |
| DRIVE SHAFT | 1" dia. C1018 cold rolled steel shaft |
| COUPLINGS | Located on both or one end |
| UNIVERSAL JOINTS | 4 per 90° and 60° curve; 2 per 45° and 30° curve |
| TANGENTS | 1’-0” both ends on 60° and 90°; 1’-6” both ends on 30° and 45°; 1’-0” infeed, 1’-0” discharge and no center tangent on 180°; tangent roller centers 3” RC |
| BED / FRAME | 7" x 1-1/2" x 12 ga. formed steel channel frame |
| MOTOR DRIVE | Unit is designed to be driven by 738LS |
| FLOOR SUPPORTS | Optional |
DETAILS
ACCESORIES / OPTIONS
Side Mounted Drive
Floor Supports
Speed
Motors
Controls
