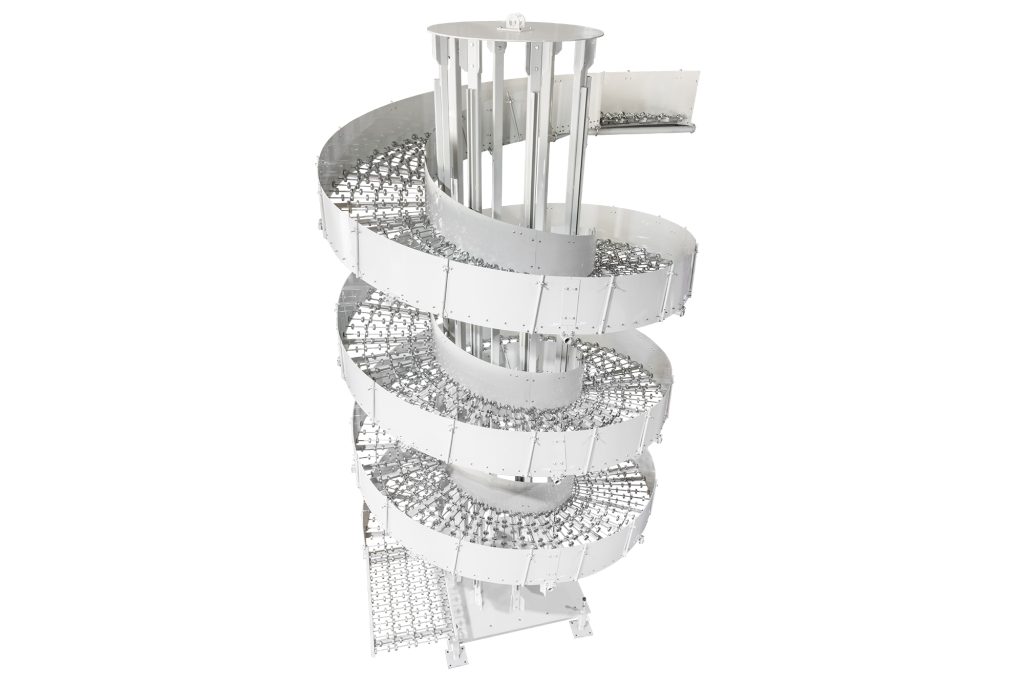

The Gravity Spiral Conveyor provides a practical method for moving products between elevations while minimizing floor space requirements. Product movement is driven entirely by gravity, allowing cartons, totes, and packages to flow smoothly and consistently without electrical power. The spiral configuration supports continuous vertical transfer and integrates easily with straight or curved gravity conveyor sections.
This conveyor is commonly used in warehouses, distribution centers, packaging operations, and manufacturing environments where reliable vertical movement is required. Its mechanical simplicity supports consistent operation with low maintenance demands, making it well suited for facilities seeking dependable vertical conveyance without added system complexity.
Applications
- Moves cartons, totes, and packages between multiple levels
- Connects to existing conveyor lines for continuous product transfer
- Supports fulfillment areas, pick modules, and shipping or receiving zones
- Reduces manual lifting and limits forklift traffic to improve workplace safety
Features
- Compact spiral layout that conserves floor space
- Gravity driven operation with no electrical power required
- Smooth handling of cartons, totes, and packages
- Low maintenance design with long service life
- Straightforward integration with existing material handling equipment
SPECIFICATIONS
| HEIGHT | 18 Ft |
| BETWEEN FRAME | 30 In |
| OVERALL WIDTH | 32 In |
| SIDE GUARDS | 13 In |
| TYPE | Gravity Spiral (Non-Powered) |
| MATERIAL FLOW | Downward |
| CONSTRUCTION | Heavy-Duty Frame With Precision-Formed Spiral Track |
| INSTALLATION | Floor-Mounted And Compatible With Standard Conveyor Layouts |
| PAINT | Ral 7035 Light Grey |
DETAILS
ACCESORIES / OPTIONS
Width
Radius
Axle Center
Height
WARRANTY
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
