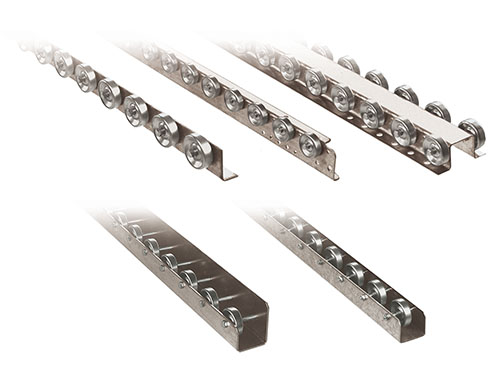

The RA, RC, RD, RJ, and RU rail wheel conveyors are gravity-driven rail wheel systems built with 12 gauge galvanized steel rails formed into distinct configurations to suit a range of load and layout requirements; each model uses pre-lubricated, zinc-plated 1-15/16″ diameter ball bearing wheels on 3″ centers with 1/4″ diameter galvanized steel bolt-type axles, enabling simple floor or rack mounting in parallel arrangements for unit load movement without power. These rail wheel conveyors offer a lightweight, economical solution for conveying cartons, totes, and other unit loads over lengths from 1′ to 10′ in 1′ increments, with wheel and frame capacities that vary between models to support diverse system demands and support spacing conditions.
The RA model provides a lower carrying capacity profile, while the RC, RD, RJ, and RU configurations progressively increase frame load capability and mass handling, making this series adaptable from general purpose to more demanding gravity conveyor applications where reliable, low-mechanism product transfer is required.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| RAILS | 12 Ga. Galvanized Steel Rails Formed To Several Configurations, Including Ra, Rc, Rd, Rj, And Ru Rail Wheel Conveyors |
| WHEELS | 1-15/16" Dia. Prelubricated Ball Bearing Wheel With Hardened Raceway, Zinc Plated, 50 Lb. Capacity |
| AXLES | 1/4" Dia. Galvanized Steel Bolt-Type With Lock Nut |
| LENGTHS | Available In 1'-0" Increments From 1'-0" To 10'-0" |
| COUPLINGS | Not Supplied, Specify Type Required For Pricing |
| WHEEL CENTERS | 3" Centers Typical On All Patterns |
DETAILS
ACCESORIES / OPTIONS
Rail Configuration
WARRANTY
Mechanical: 12 Months
