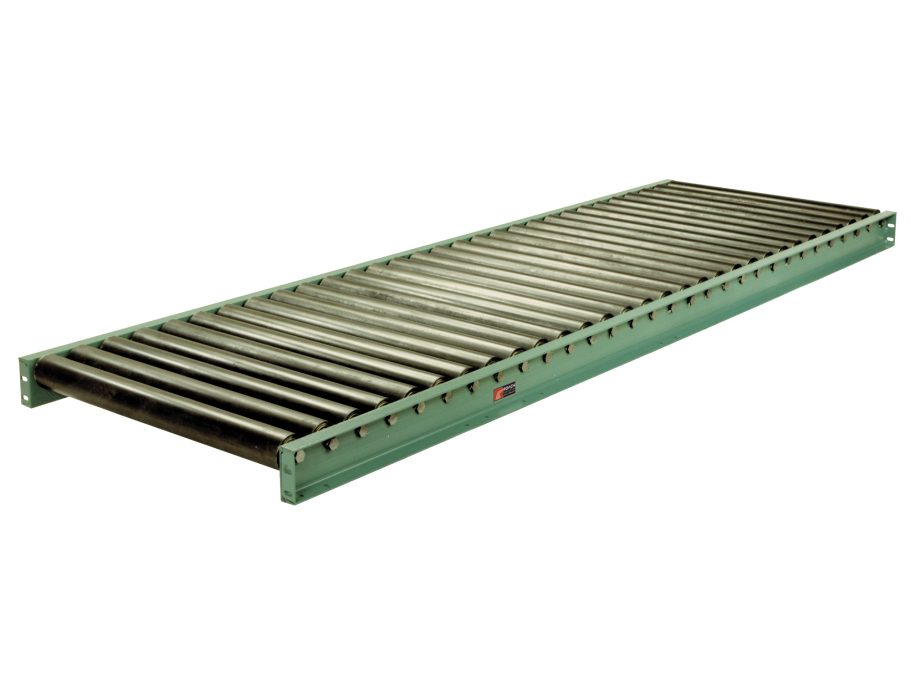

3530S is among the most substantial gravity roller conveyors offered, with .300 wall structural steel rollers and heavy formed frames. Roller capacities exceed typical gravity sections, enabling very high distributed loads. This product is specified where extreme durability and load capacity are required in gravity feeding or staging operations.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| ROLLERS | 3-1/2" X .300 Steel Tubing, Model 3530S, With Straight Ends, Reamed To Provide Smooth Bearing Seats |
| FRAMES | 5" At 6.7 Lbs. Structural Steel Painted Channel Set Low (Extra Charge For Set Low) |
| ROLLER CAPACITY | 2500 Lbs. Per Roller |
| AXLES | 1-1/16" Hex Shaft, Spring Loaded |
| BEARINGS | Removable Type, Heavy Duty Ball Bearings, Zinc Plated, Grease Packed |
| COUPLINGS | Butt Type |
| FRAME CAPACITY | 6600 Lbs. Maximum Distributed Live Load Per 10' Section With Supports At 10' Centers; 16000 Lbs. At 5' Centers |
DETAILS
ACCESORIES / OPTIONS
Width
Length
Roller Centers
WARRANTY
Mechanical: 12 Months
