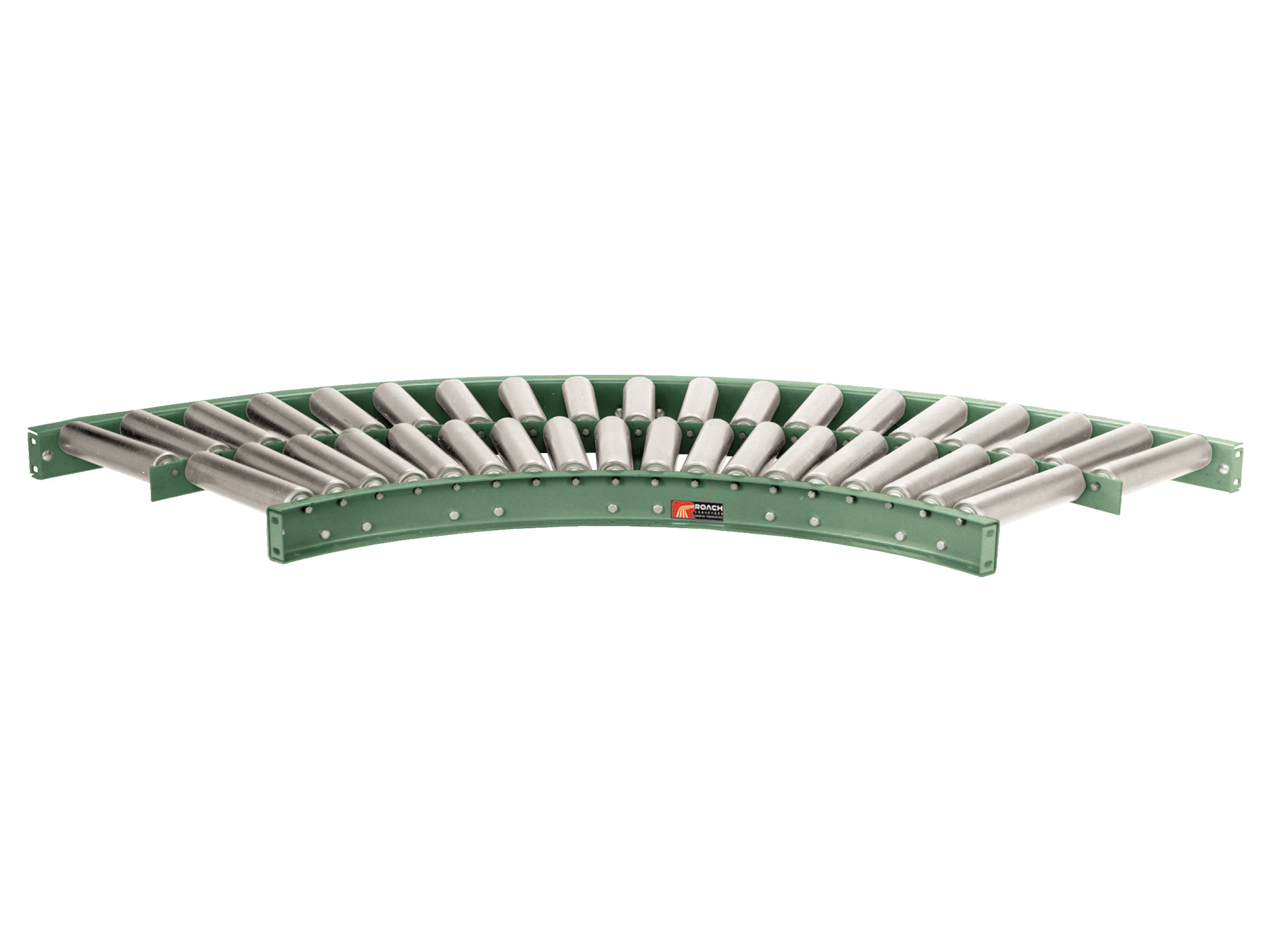

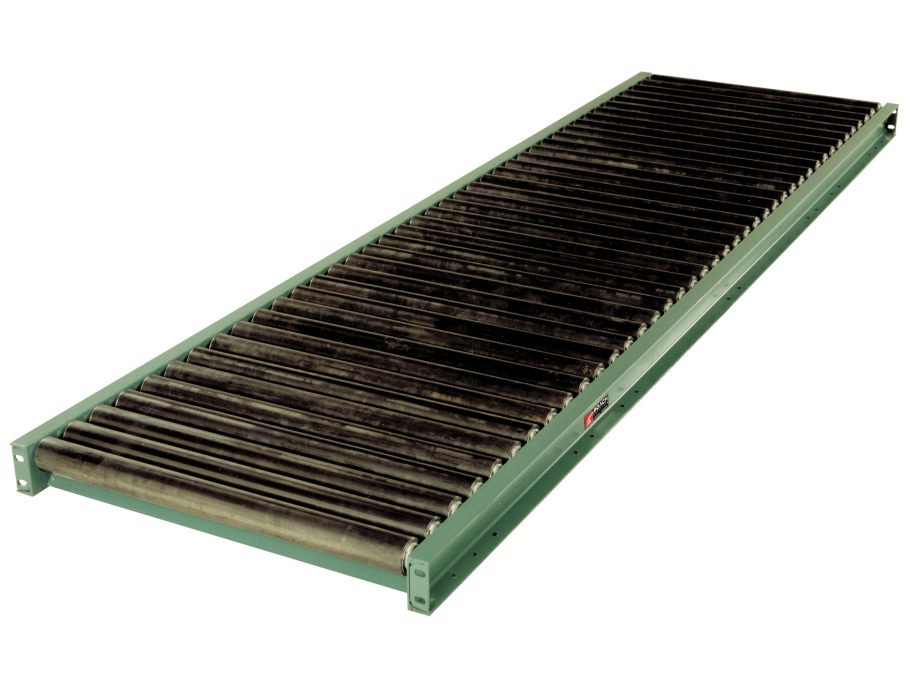

297S leverages large diameter (2-9/16-inch) rollers with heavy 7 gauge structural tubing to support very high distributed loads in gravity lines. Structural components and bearing arrangements are engineered for sustained performance under heavy unit weights, and curved sections handle directional changes with robustness.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| ROLLERS | 2-9/16" X 7 Ga. Steel Tubing, Model 297S, With Straight Ends, Reamed To Provide Smooth Bearing Seats |
| FRAMES | 4" At 5.4 Lbs. Structural Steel Painted Channel |
| ROLLER CAPACITY | 540 Lbs. Per Roller |
| AXLES | 11/16" Hex Shaft, Spring Loaded |
| BEARINGS | Removable Type, Heavy Duty Ball Bearings, Zinc Plated, Grease Packed |
| COUPLINGS | Butt Type |
| FRAME CAPACITY | 3750 Lbs. Maximum Distributed Live Load Per 10' Section With Supports At 10' Centers; 8000 Lbs. At 5' Centers |
DETAILS
ACCESORIES / OPTIONS
Length
Width
Roller Centers
Curve Radius
Straight Section
Curve Section
Double Roller Curve
WARRANTY
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
