This gravity conveyor features 2-1/2-inch diameter rollers with 14 gauge structural tubing and heavier formed channel frames. Designed for higher structural integrity than lighter gauge lines, it supports gravity movement of larger and heavier items over extended lengths. The structural frame provides increased stiffness and resistance to deflection under load.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| ROLLERS | 2-1/2" X 14 Ga. Steel Tubing, Model 254S, With Smooth Swaged Ends |
| FRAMES | 4" At 5.4 Lbs. Structural Steel Painted Channel |
| ROLLER CAPACITY | 290 Lbs. Per Roller |
| BEARINGS | Integral Plain Ball Bearings, Zinc Plated, Grease Packed |
| FRAME CAPACITY | 3750 Lbs. Maximum Distributed Live Load Per 10' Section With Supports At 10' Centers; 8000 Lbs. At 5' Centers |
| COUPLINGS | Butt Type |
| AXLES | 7/16" Hex Shaft, Spring Loaded |
DETAILS
ACCESORIES / OPTIONS
Length
Width
Roller Centers
Curve Radius

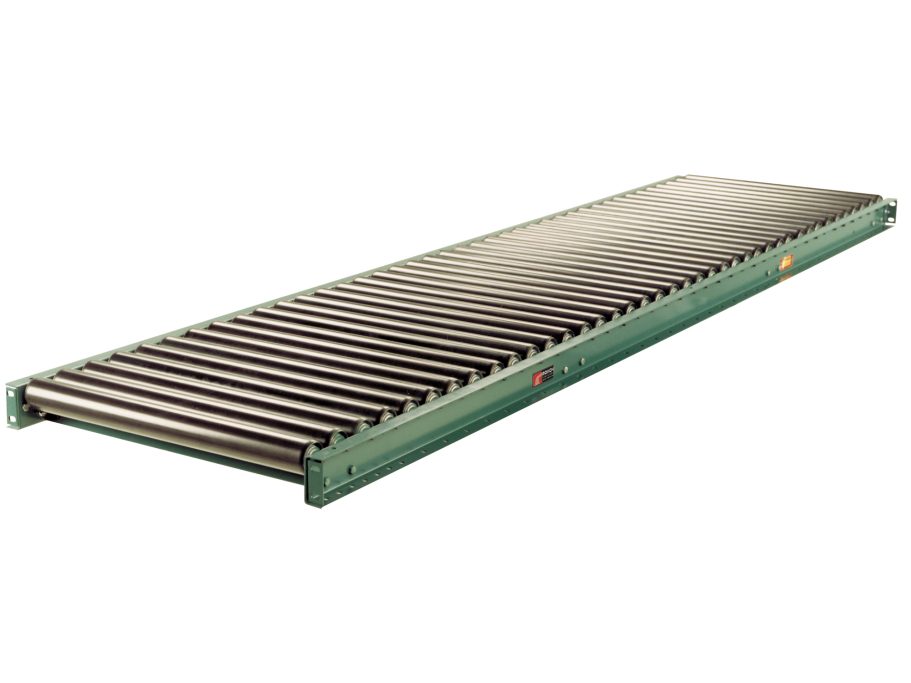

Straight Section

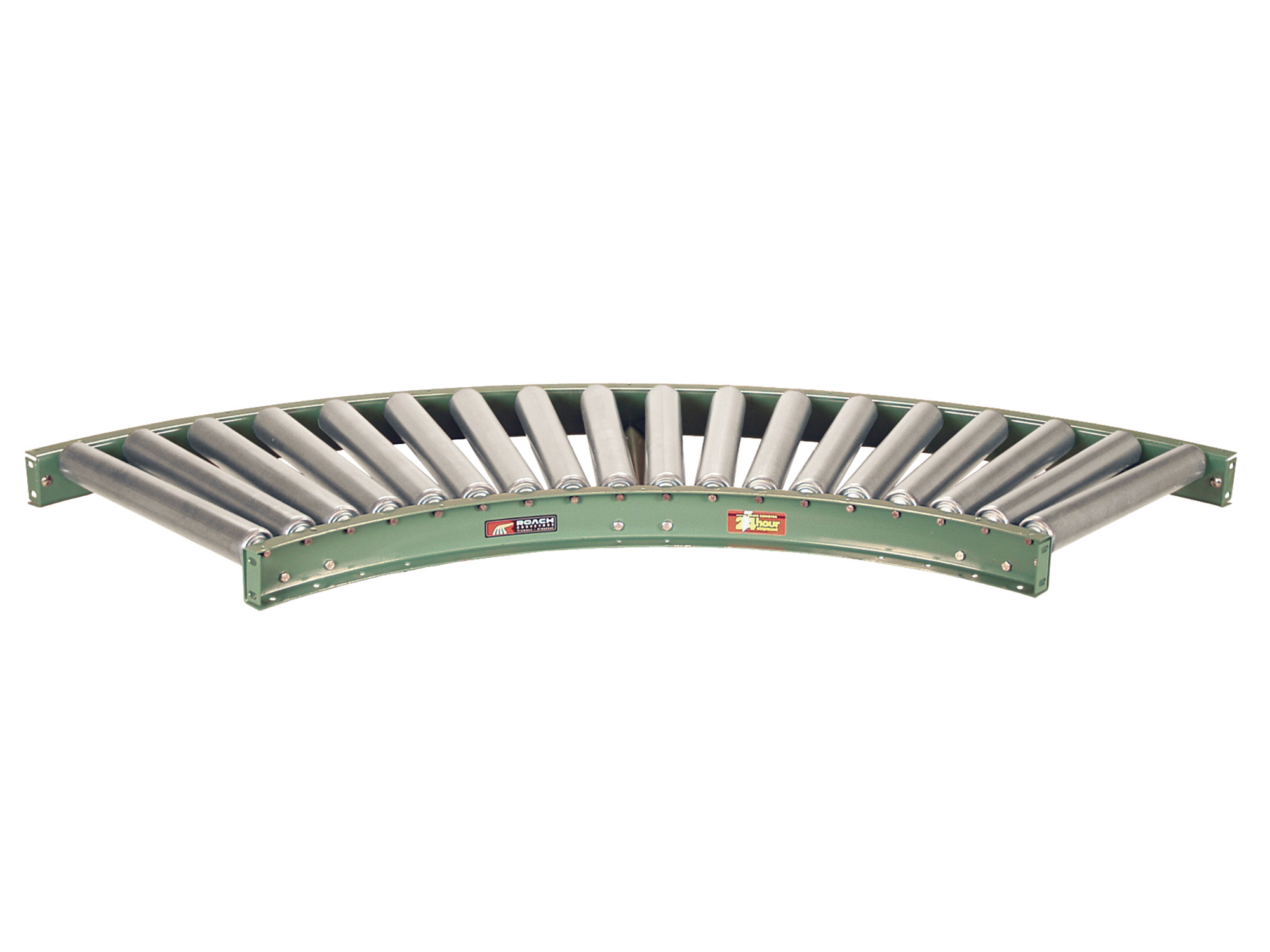

Curve Section

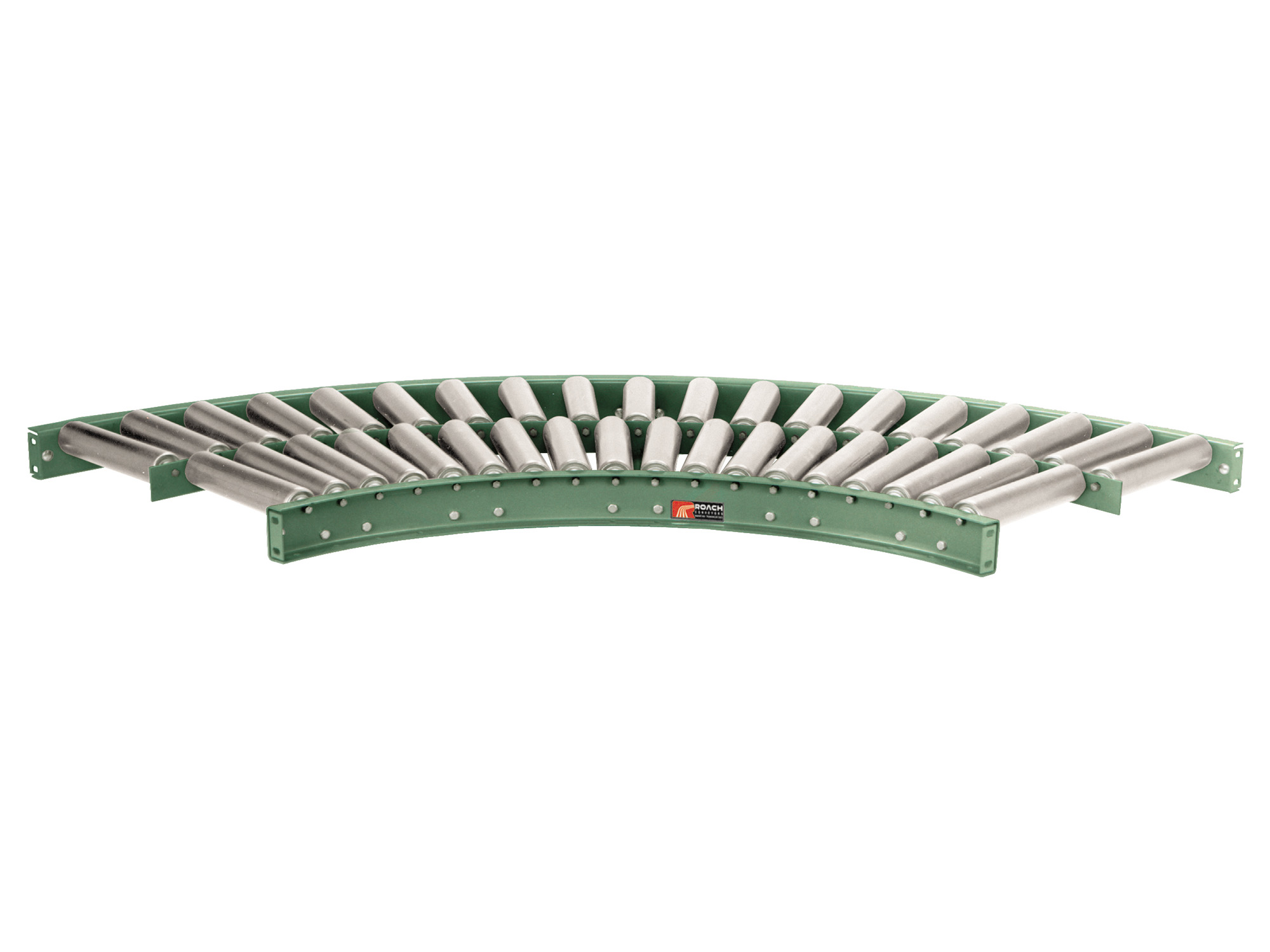

Double Roller Curve
WARRANTY
Mechanical: 12 Months
