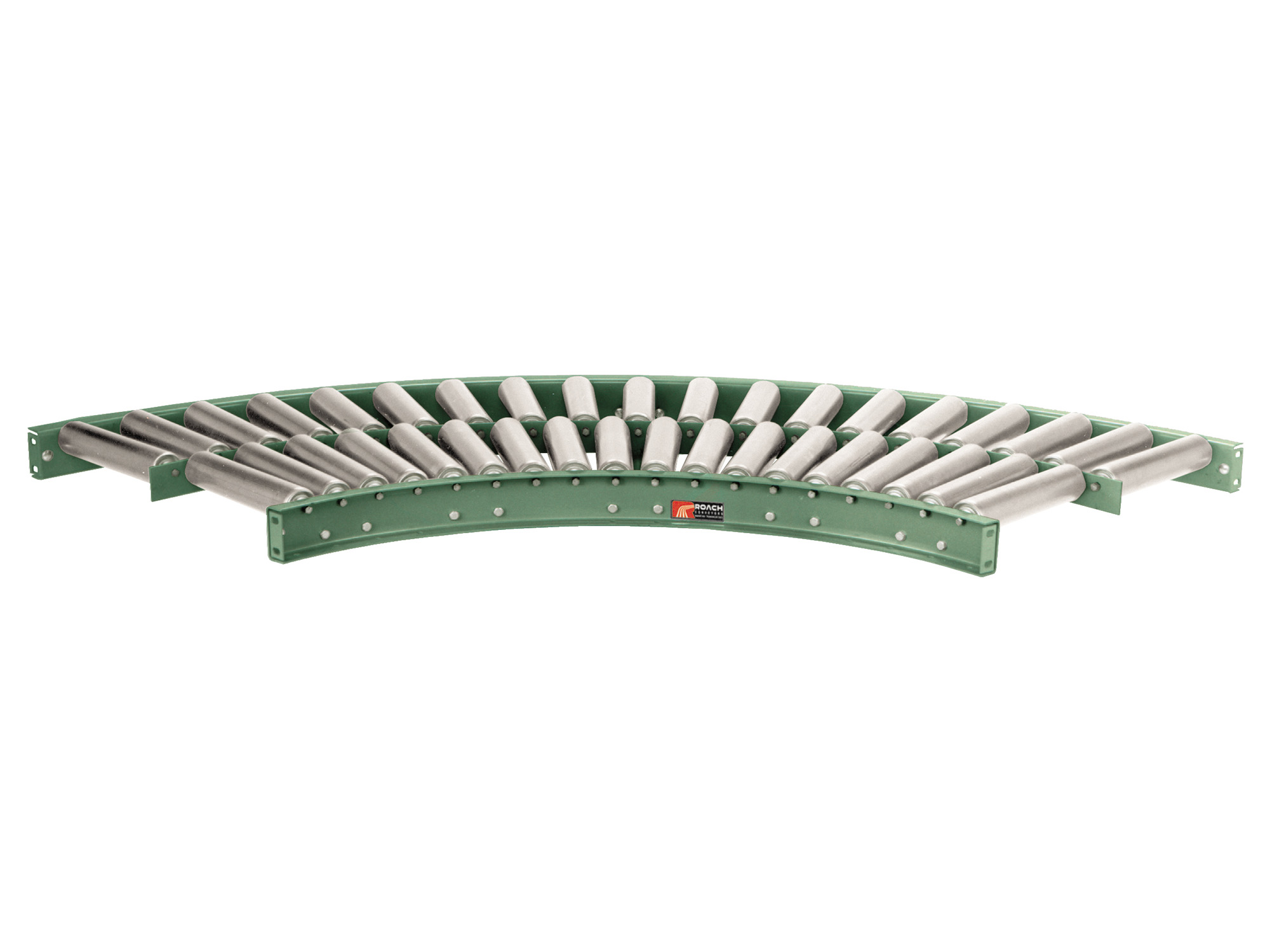

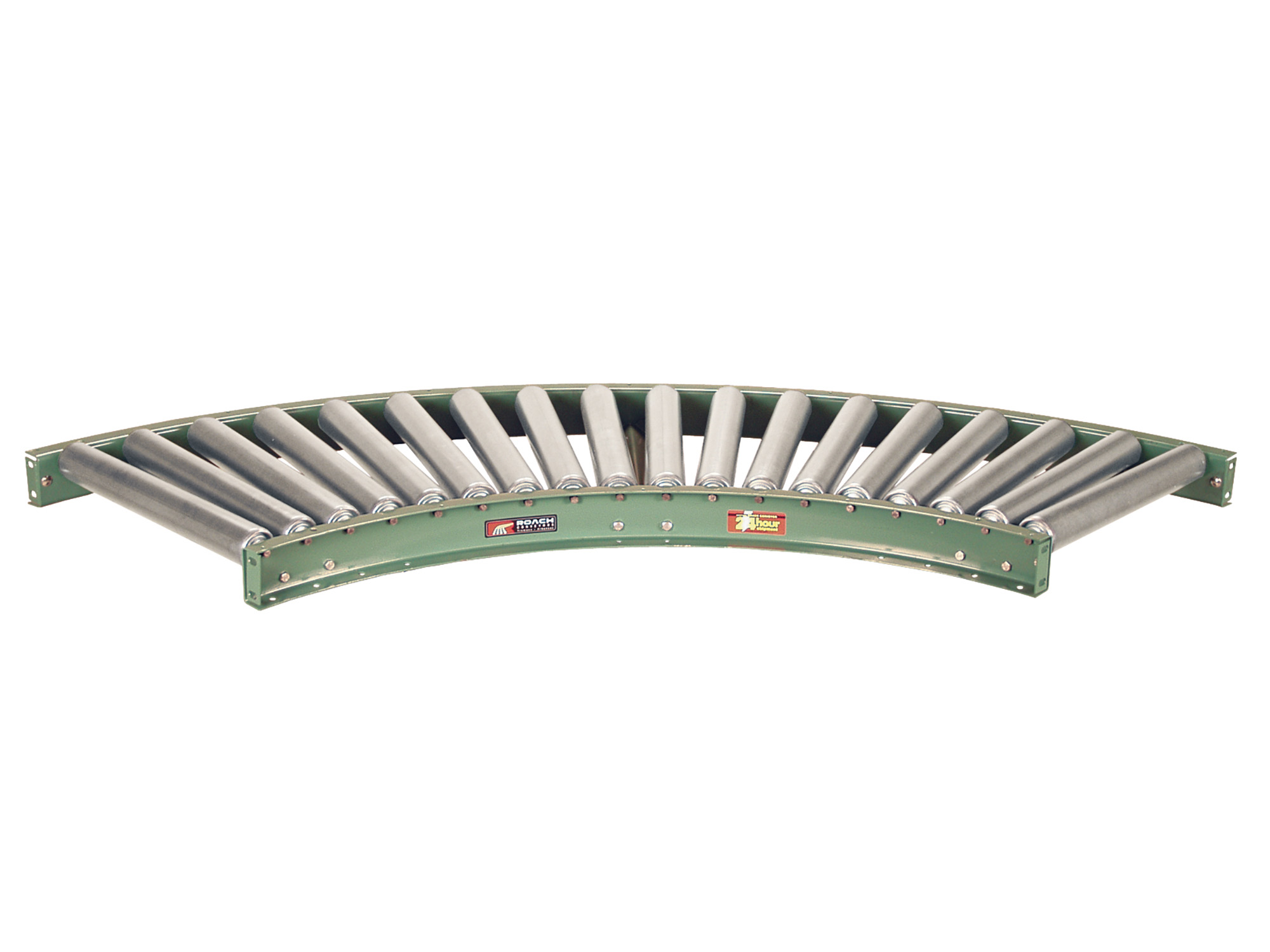

251S uses 2-1/2-inch diameter, 11 gauge steel rollers mounted in robust formed frames. Precision ABEC bearings support reliable rotation, and the conveyor line is specified to carry moderate to heavy unit loads by gravity. This model bridges general purpose and more demanding material handling zones where robustness and consistent gravity flow are required.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| ROLLERS | 2-1/2" X 11 Ga. Steel Tubing, Model 251S, With Flanged Type Bearings Pressed Into Stright Ends |
| FRAMES | Formed Steel Painted Channel 4" X 1-1/2" X 7 Ga. Set High; 5" X 1-1/2" X 7 Ga. Set Low |
| ROLLER CAPACITY | 540 Lbs. Per Roller |
| BEARINGS | Precision Abec Bearings |
| FRAME CAPACITY | 3400 Lbs. Maximum Distributed Live Load Per 10' Section With Supports At 10' Centers; 7500 Lbs. At 5' Centers |
| COUPLINGS | Butt Type |
| AXLES | 11/16" Hex Shaft, Spring Loaded |
DETAILS
ACCESORIES / OPTIONS
Length
Width
Roller Centers
Curve Radius
Straight Section
Curve Section
Double Roller Curve
WARRANTY
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
