The 192S gravity conveyor uses 1.9-inch diameter, 12 gauge steel rollers in a formed steel frame. Plain ball bearings are zinc plated and grease packed for consistent rotation. This model supports typical gravity handling tasks for medium weight unit loads. Frame capacity and roller construction balance structural stiffness with ease of integration into larger gravity conveyor systems.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| ROLLERS | 1.9" X 12 Ga. Steel Tubing, Model 192S, With Smooth Swagged Ends |
| FRAMES | Formed Steel Painted Channel 3-1/2" X 1-1/2" X 10 Ga. Set High; 4-1/2" X 1-1/2" X 10 Ga. Set Low |
| FRAME CAPACITY | 260 Lbs. Per Roller, Or 1300 Lbs. Maximum Distributed Live Load Per 10' Section With Supports At 10' Centers; 3200 Lbs. At 5' Centers |
| BEARINGS | Integral Plain Ball Bearings, Zinc Plated, Grease Packed |
| COUPLINGS | Butt Type |
| AXLES | 7/16" Hex Shaft, Spring Loaded |
| OPTIONAL FRAME | 4" @ 5.4 Lbs. Struc. Steel Channel Frame, Rollers 3/16" High, May Vary Due To Structural Tolerances |
DETAILS
ACCESORIES / OPTIONS
Length
Width
Roller Centers
Curve Radius

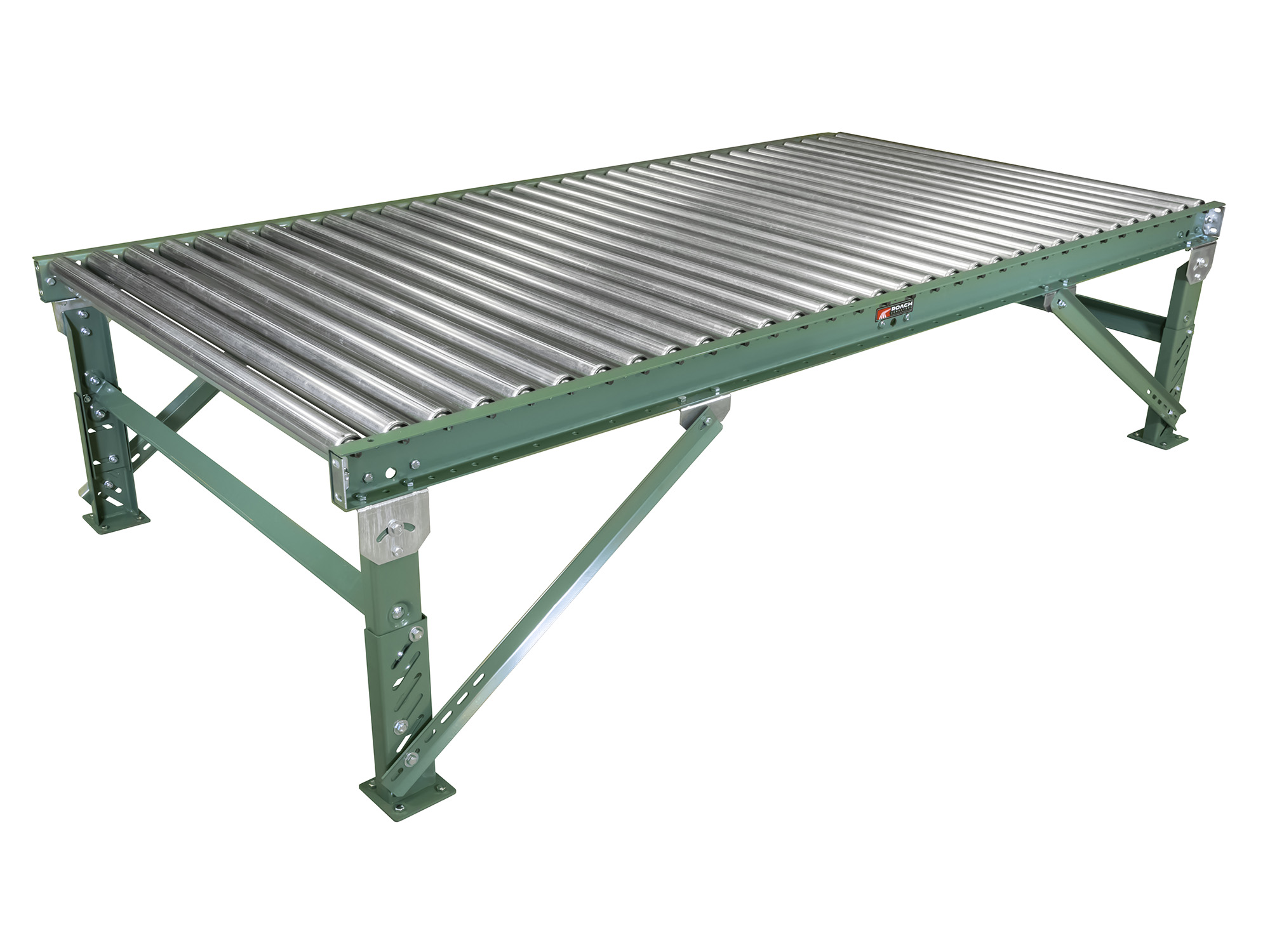

Straight Section
Curve Section

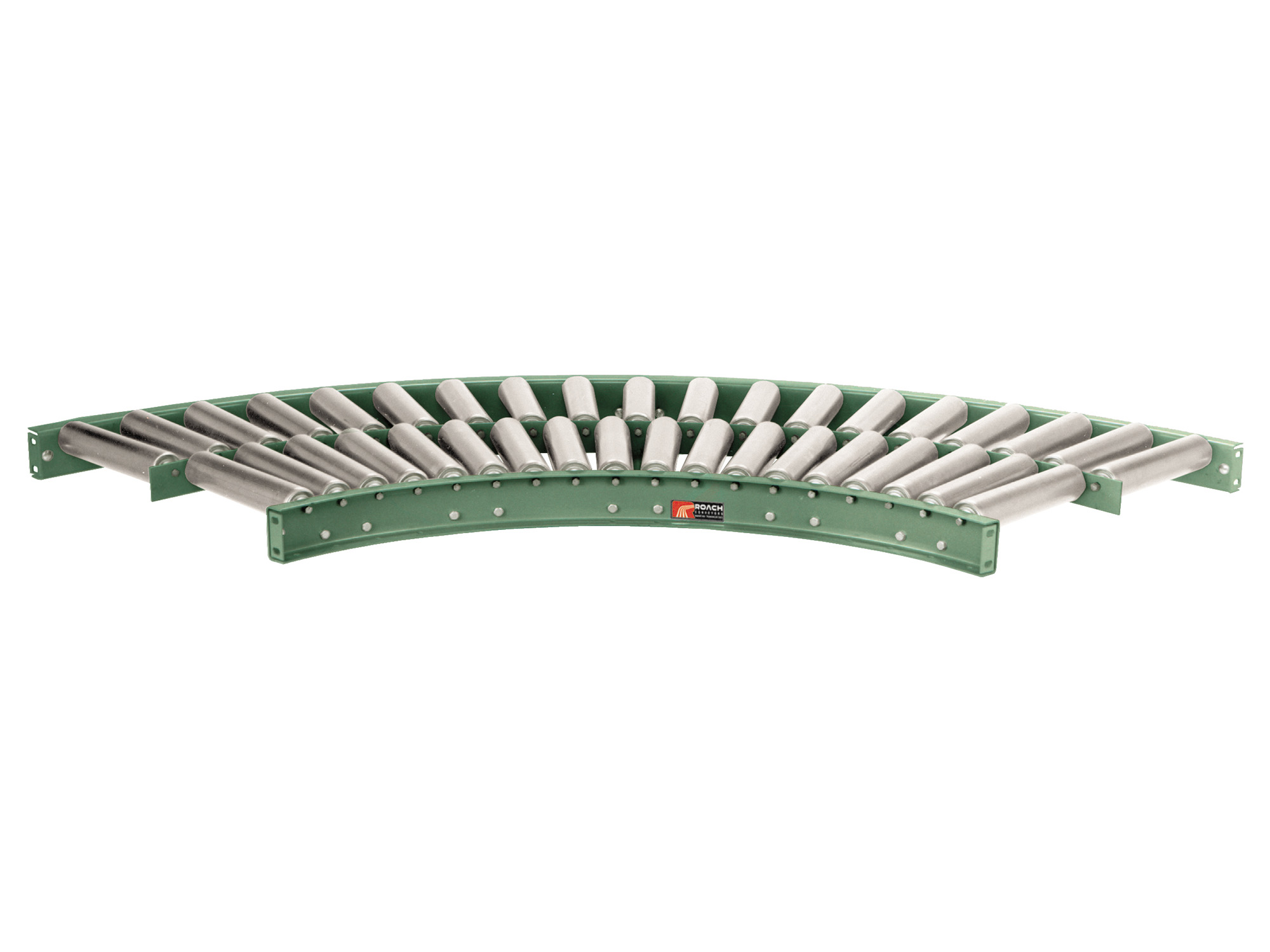

Double Roller Curve
WARRANTY
Mechanical: 12 Months
