These conveyors use 1-3/8-inch diameter rollers in galvanized steel construction for corrosion resistance and durability in standard gravity applications. Available in straight and curved configurations, they support movement of cartons and tote loads by gravity and are well suited to general warehousing and distribution environments. Galvanized frames and rollers reduce surface wear and support smooth load travel over extended conveyor lengths.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Industries
- Distribution and fulfillment
- Manufacturing and assembly
- E-commerce fulfillment
- Food and beverage packaging
- Consumer goods
- Automotive and industrial supply
SPECIFICATIONS
| WHEELS | 1-15/16" Dia. Prelubricated Ball Bearing Wheel With Hardened Raceway. Aluminum Wheel Capacity Is 25 Lbs. Per Wheel; Zinc-Plated Wheel Capacity Is 50 Lbs. Per Wheel |
| AXLES | 1/4" Dia. Galvanized Steel Bolt-Type Axle And Lock Nut |
| FRAMES | Formed Heat-Treated Aluminum Channel 2-1/2" X 1" X 1/8"; Formed Galvanized Steel Channel 2-1/2" X 1" X 12 Ga. |
| COUPLINGS | Hook And Rod; Hooks On One End And Rod ("Stud") Other End |
| FRAME CAPACITY | Aluminum 160 Lbs. Max. Distributed Live Load Per 10' Section Or 750 Lbs. Per 5' Section; Galv. Steel 350 Lbs. Max. Distributed Live Load Per 10' Section, Or 1300 Lbs. Per 5' Section |
| RADIUS (CURVES) | 4' Outside Radius |
DETAILS
ACCESORIES / OPTIONS
Paint or Galvanized
Length
Width
Roller Centers
Curve Radius

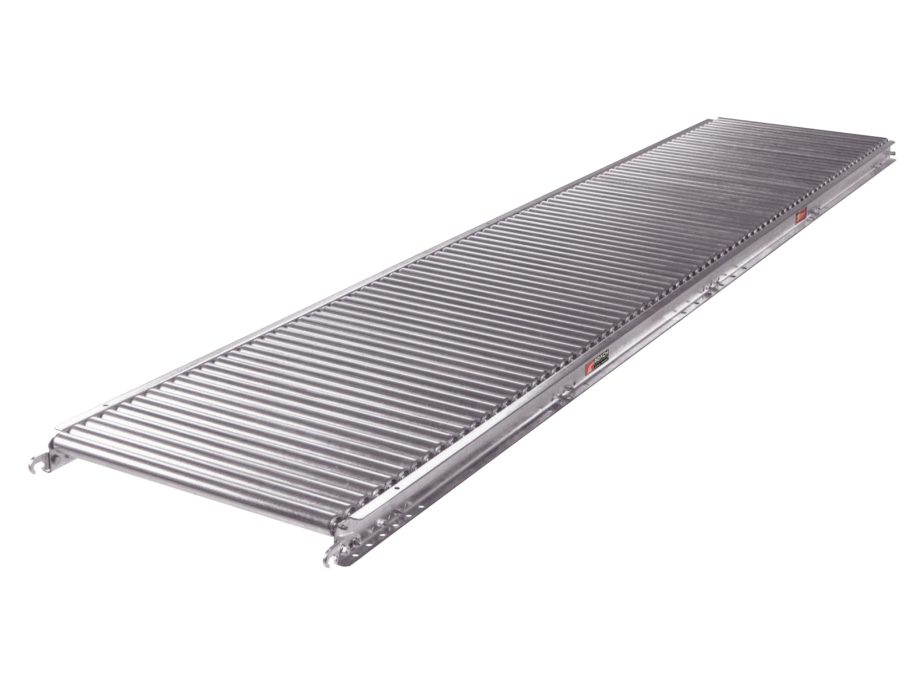

Straight Section

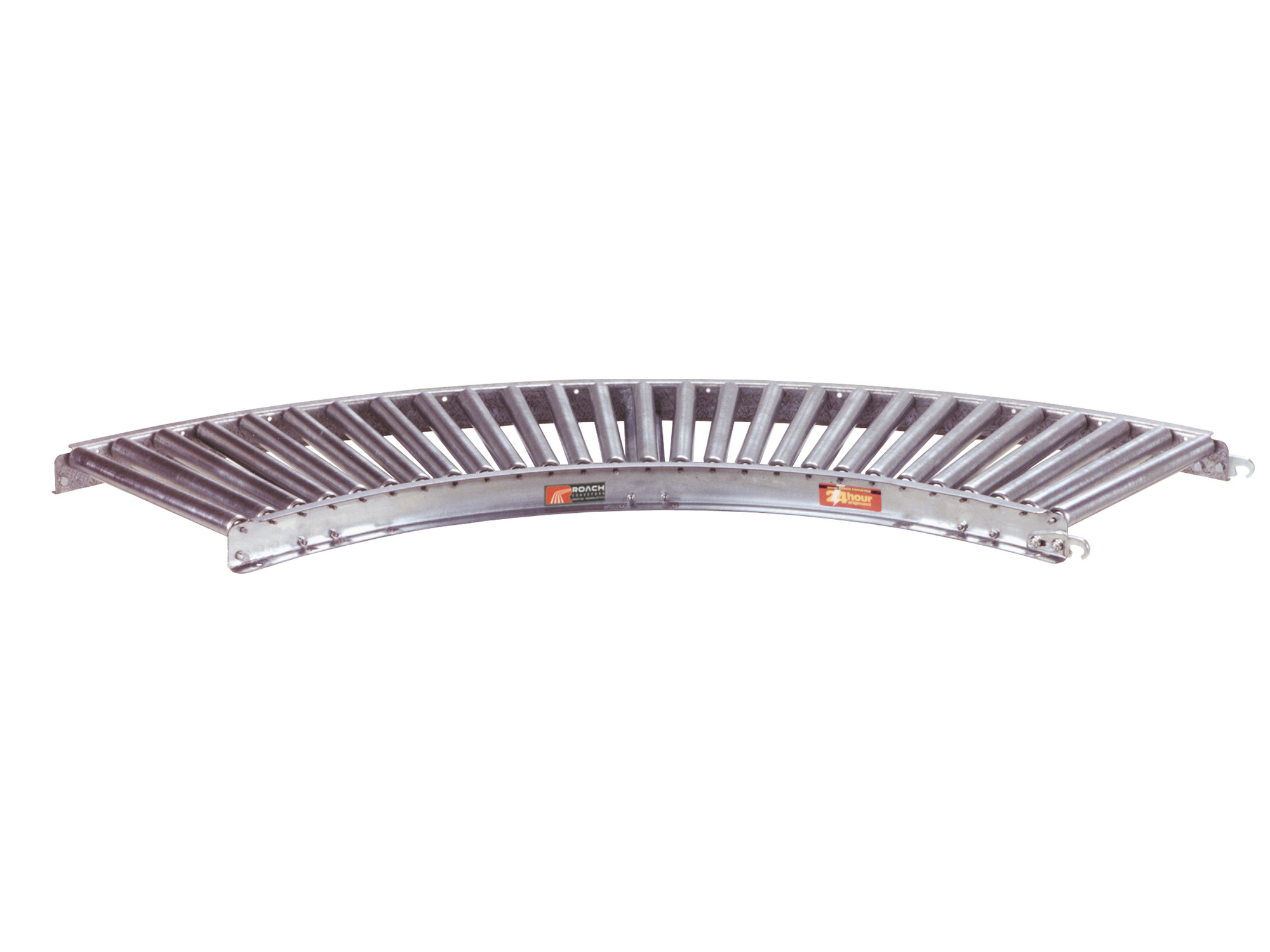

Curve Section

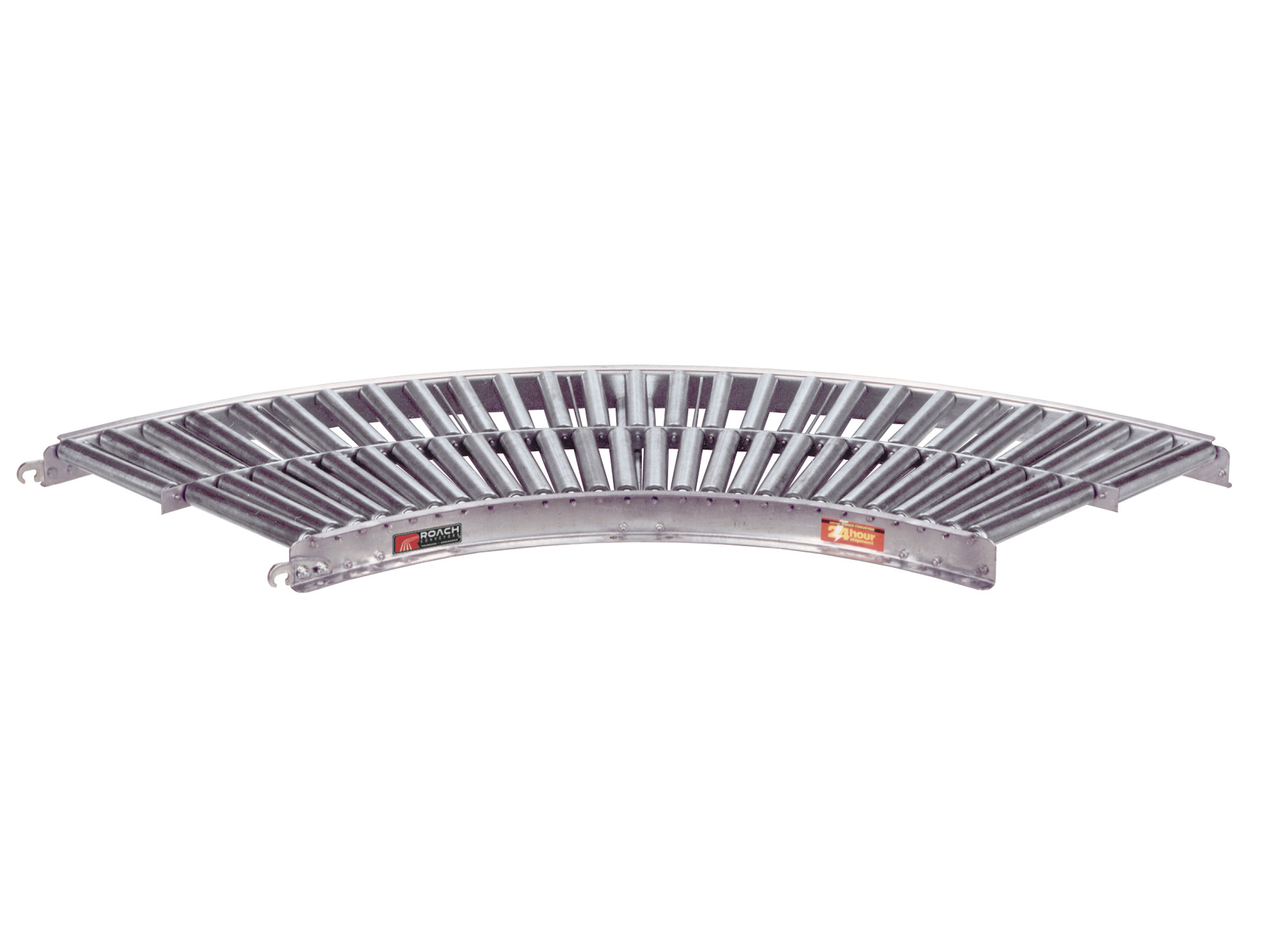

Double Roller Curve
WARRANTY
Mechanical: 12 Months
