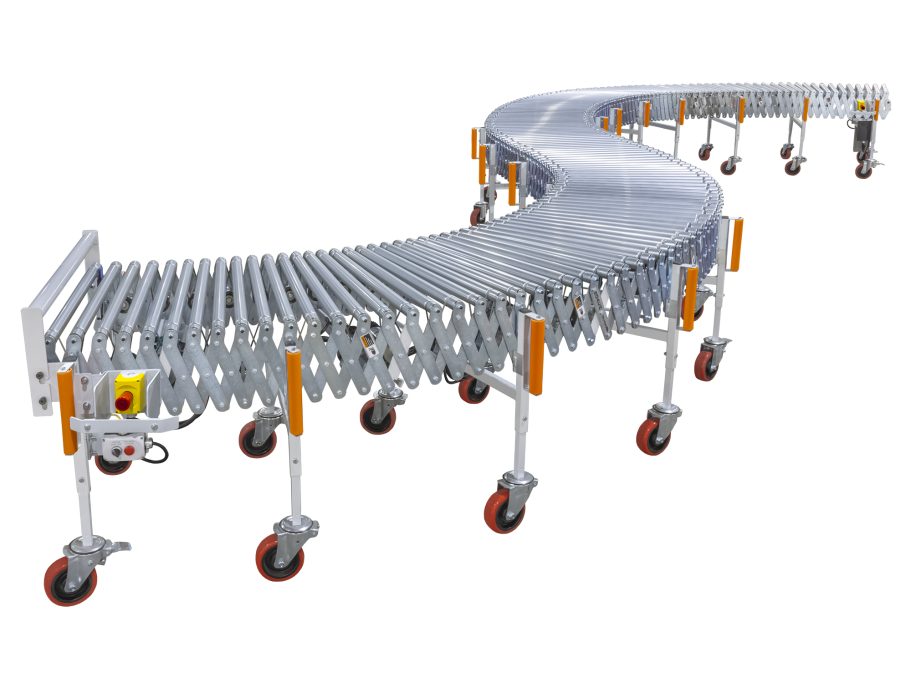

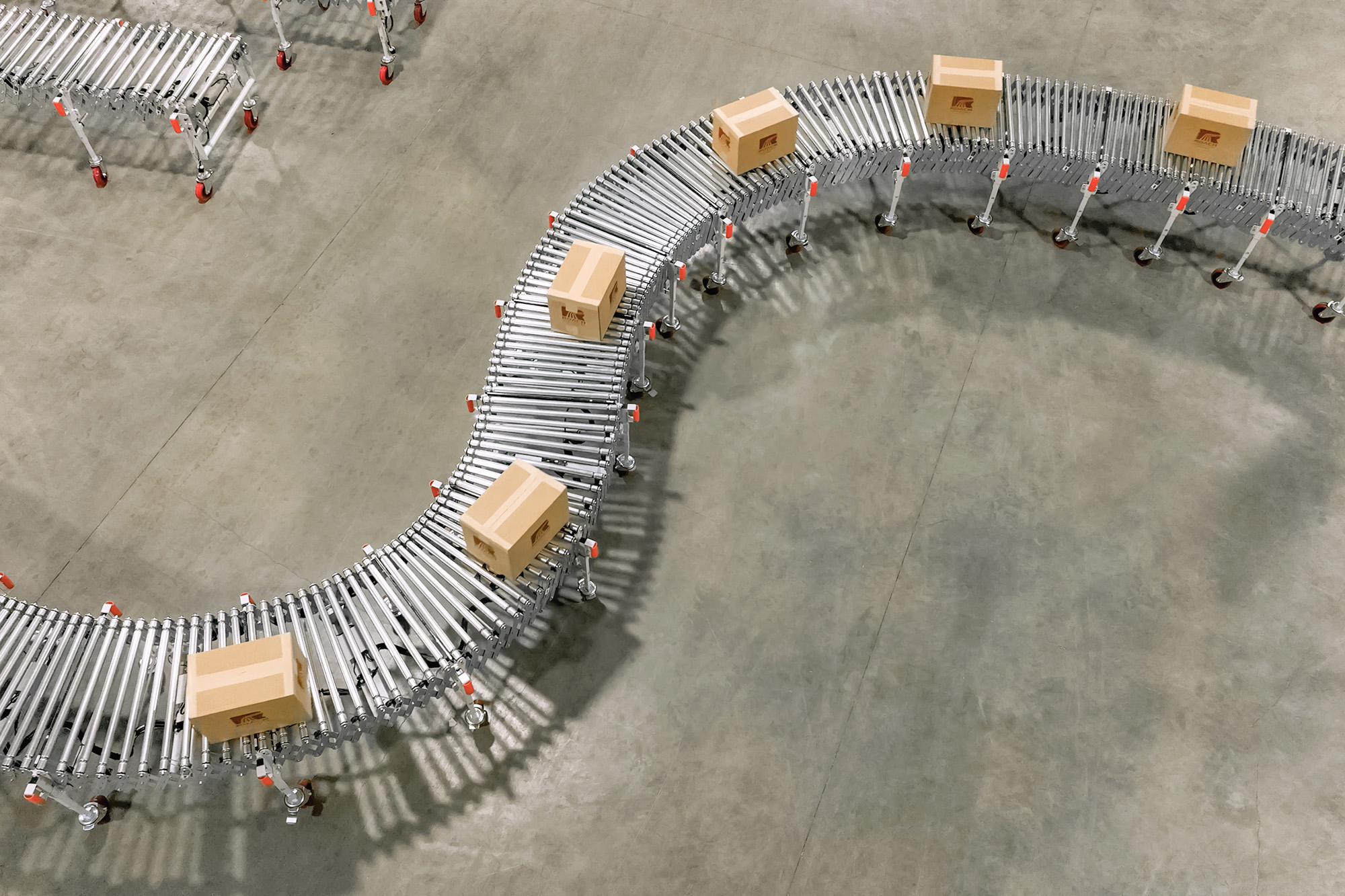

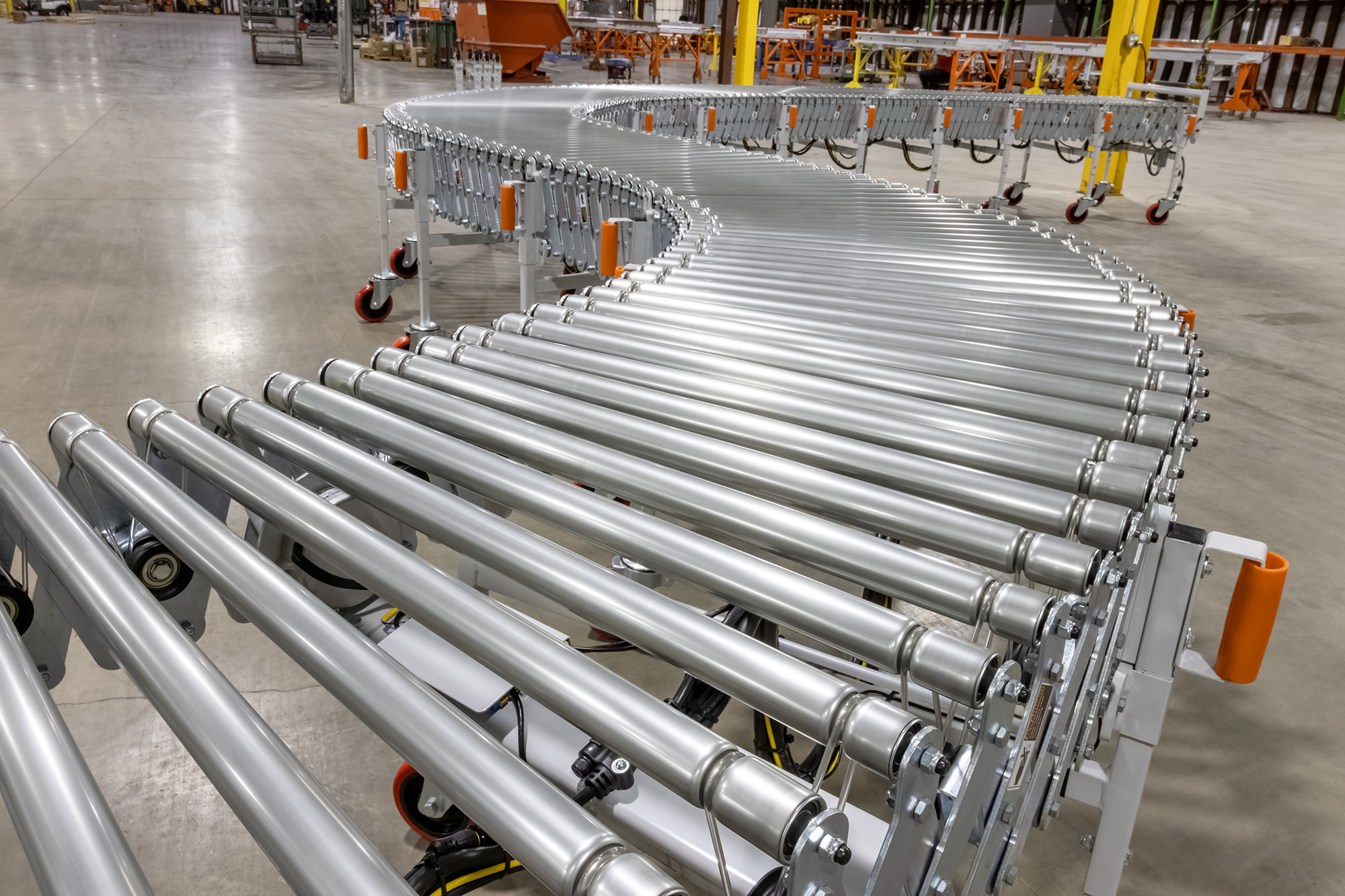

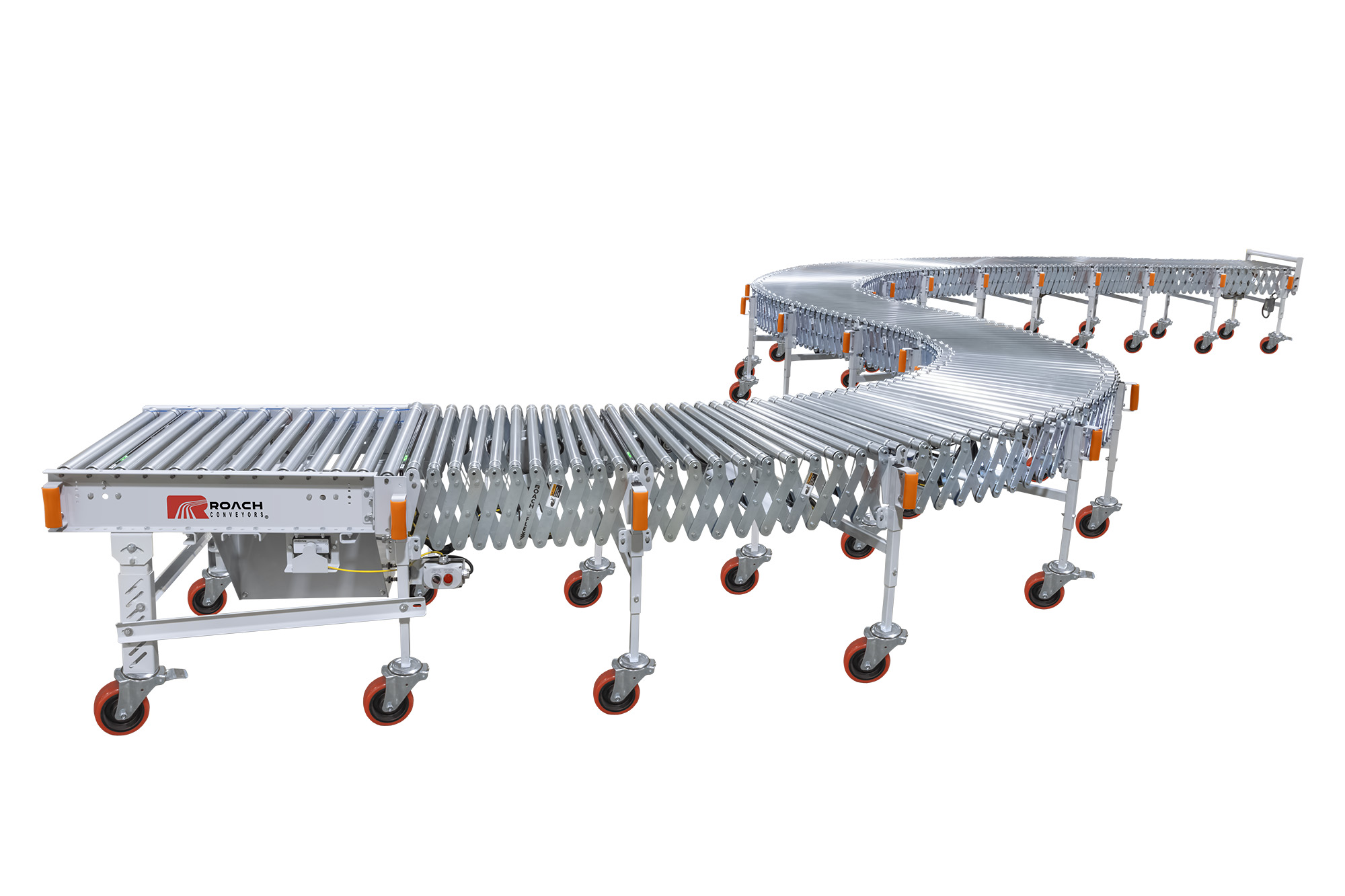

Roach PowerFlex is a durable flexible conveyor solution with excellent tracking performance allowing products to follow straight sections and curves with exceptional accuracy, while end-of-line sensors help protect packages by preventing contact with end stops.

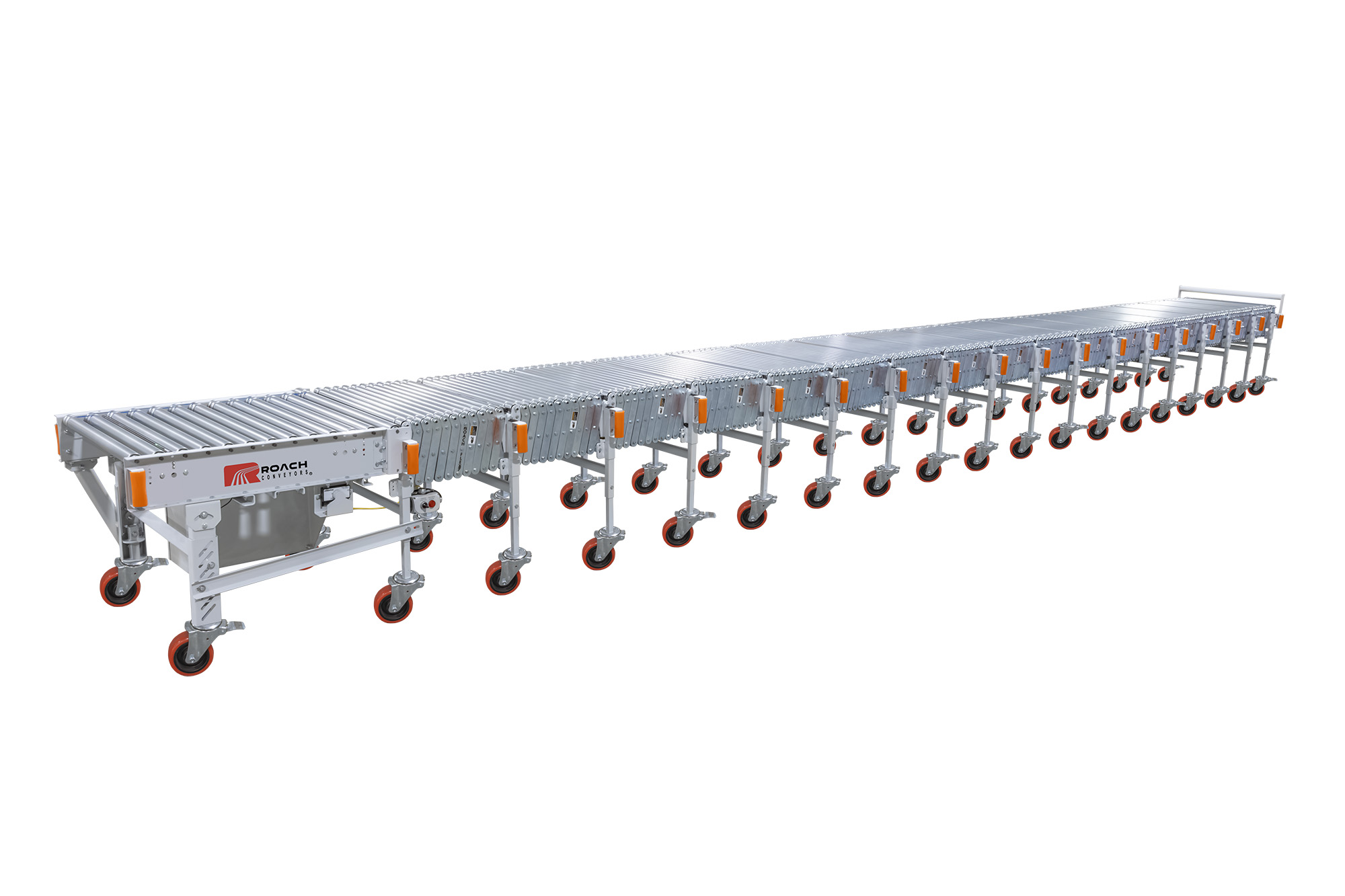

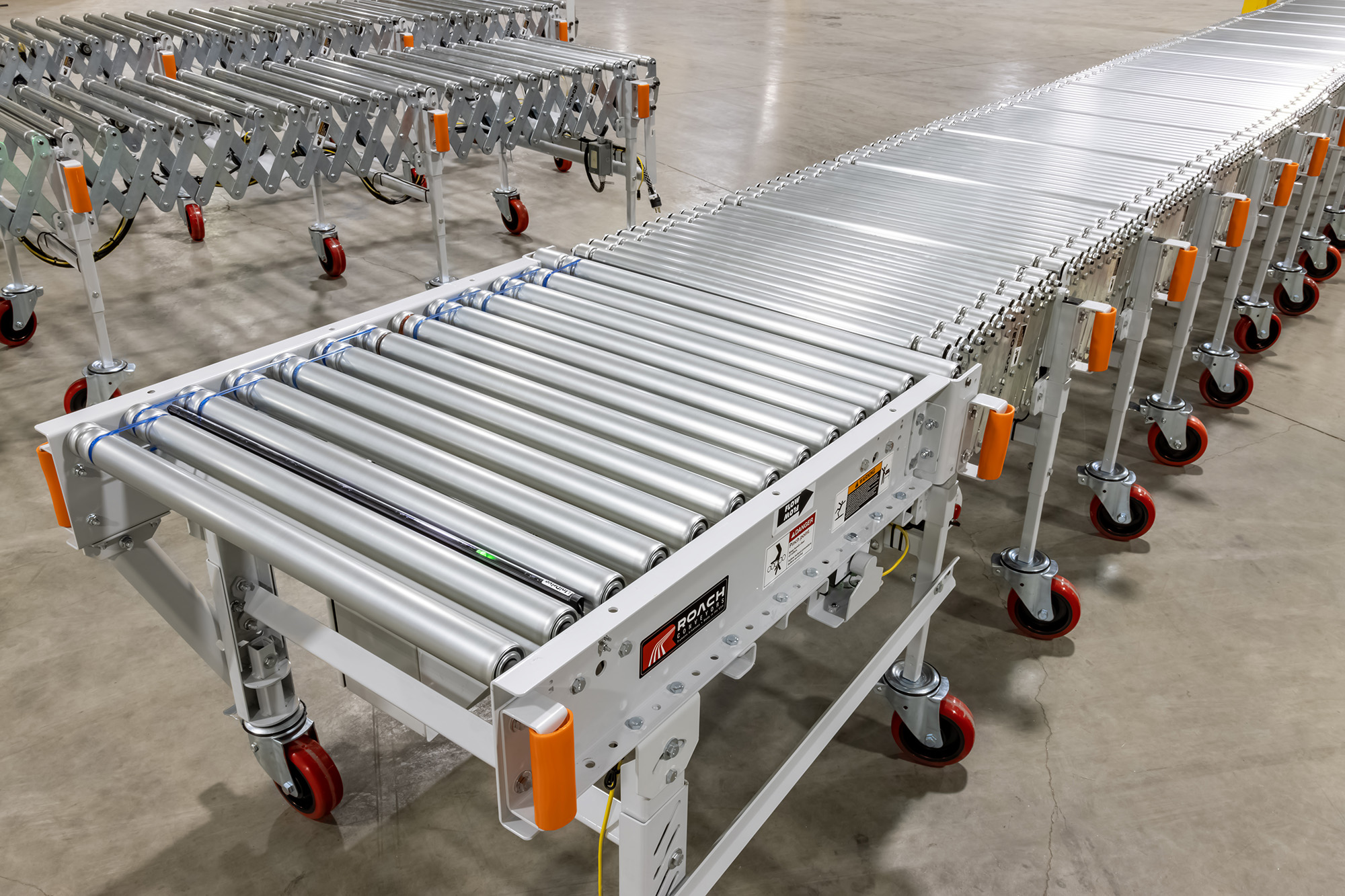

The latest PowerFlex features a UniDrive brushless motor for reliable performance and reduced maintenance, along with ZoneLogix Pro 2.0 controls for advanced zone management and simplified operation. A 3-foot fixed loading section with an integrated control panel provides a convenient operator interface and consistent product entry. Ergonomic handles on every leg make repositioning and deployment easier, allowing the conveyor to be moved quickly as operational needs change.
The optional PowerFlex Accumulation system provides independent accumulation zones that give operators greater control over product flow for sorting, packaging, quality inspection, load balancing, and other material handling processes.
Applications
- Truck loading and unloading
- Parcel and small package handling
- E-commerce fulfillment and sortation
- Retail back room operations
- Airport baggage and package movement
- Temporary conveyor lines in warehouses and distribution centers
Features
- 1.85:1 Expansion Ratio
- Heavy Duty 5” Axle Centers
- 100 lb/FT Capacity
- 24” | 30” | 36” Surface
- 24vdc Brushless Motor System
- Accumulation Optional
SPECIFICATIONS
| ROLLERS | 1.5 in. dia., 16 gauge, galvanized grooved roller |
| AXLES | Heavy duty 5/16 in. galvanized steel bolt type axle and lock nut, 5 in. axle centers |
| SIDE LINKS | Heavy duty 7 gauge steel |
| LEG SUPPORTS | Solid weld construction, four point leg support connections, handles on each leg |
| CASTERS | 6 in. x 2 in. casters |
| CONVEYING SURFACE | 24” | 30“ | 36” Conveying Surface |
| HEIGHT | 32 in |
| LENGTH | Up to 60 ft |
| CAPACITY | 100 lb. per ft |
| ACCUMULATION | Optional |

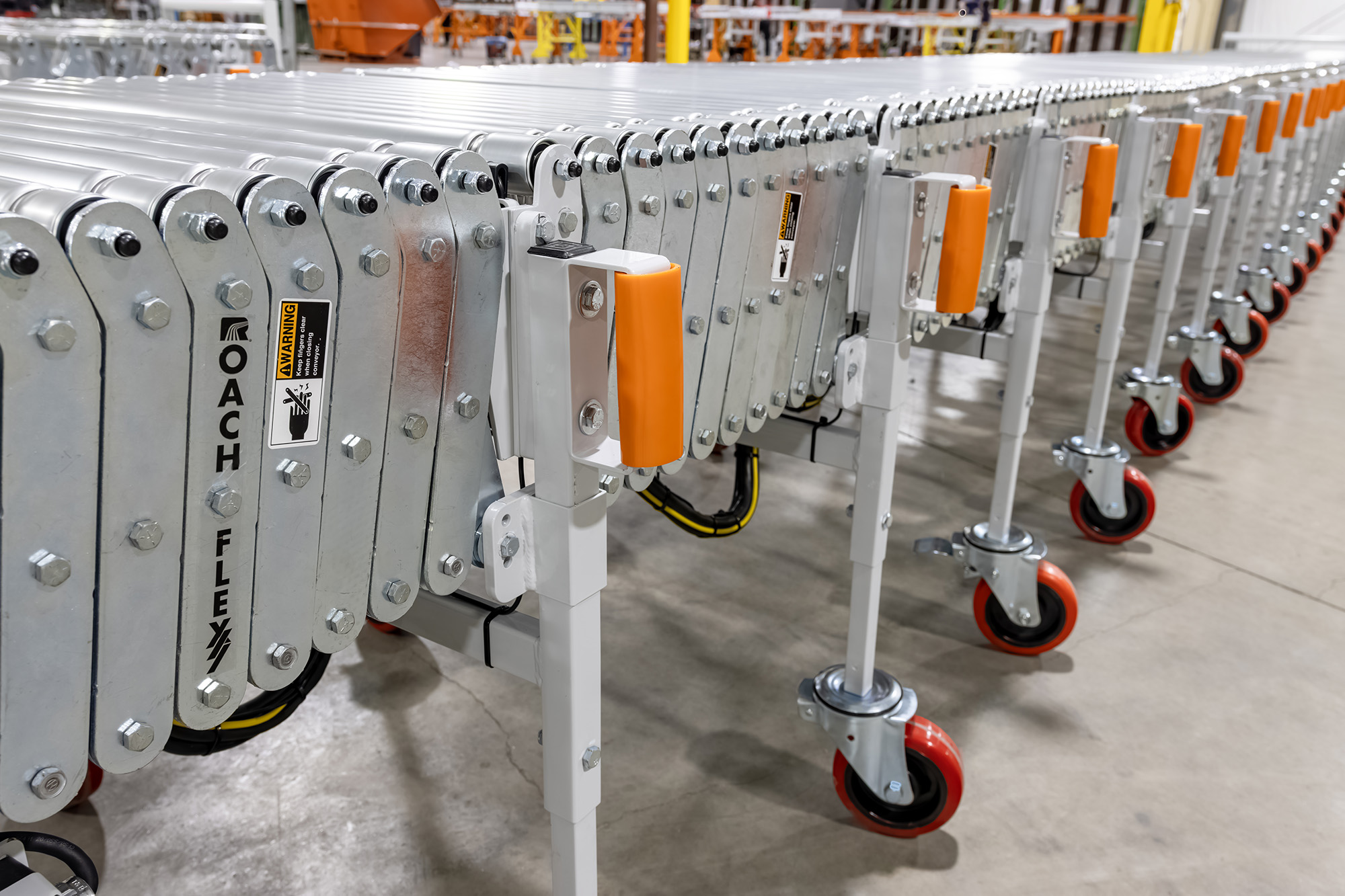

| HANDLES | Ergonomic Handles on Each Leg |

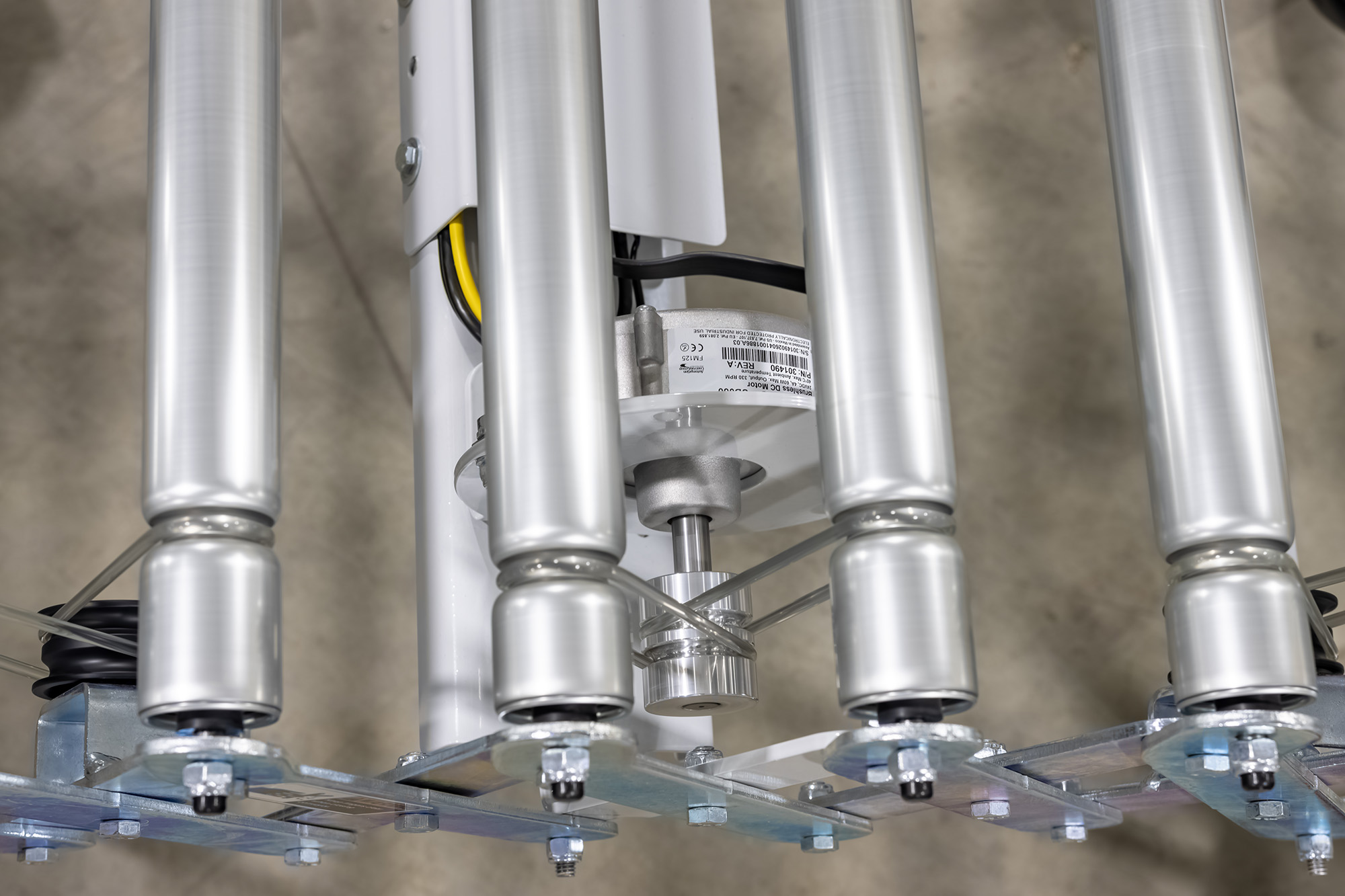

| MOTORS | 24vdc 60 watt UniDrive® Brushless Motor System |
| CARDS | ZoneLogix® PRO 2.0 |
| EXPANSION RATIO | 3" RC = 1.85:1 | 5" RC = 2.58:1 |
| E-STOPS | Optional |
DETAILS
ACCESORIES / OPTIONS
Width
Axle Center
Height
Accumulation
E-stops
WARRANTY
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
