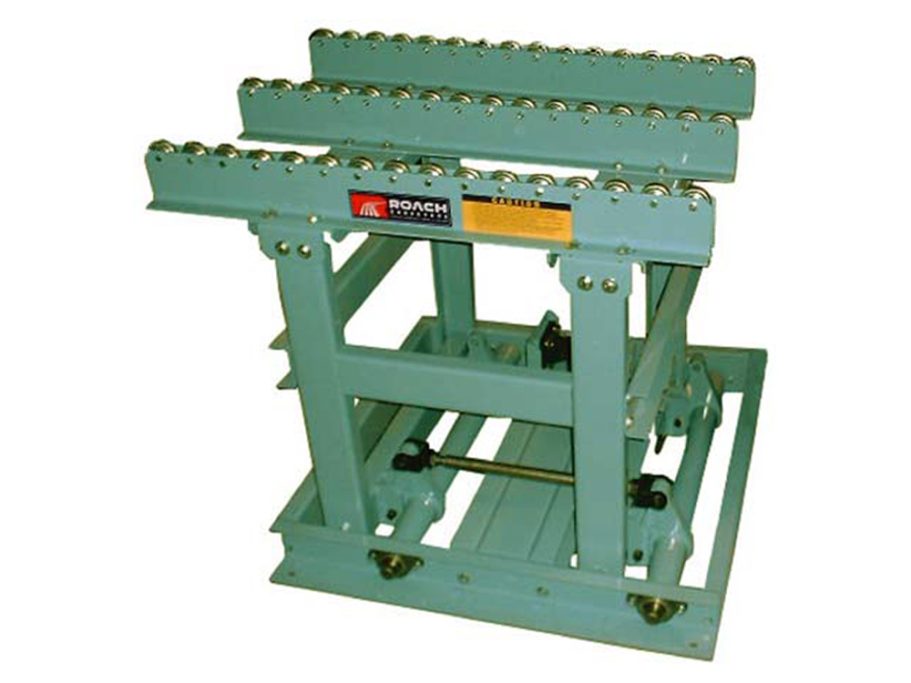

The 3-Strand 90° Wheel Transfer is engineered to change product direction at right angles within a conveyor line by raising wheel strands above the conveyor surface to support and convey loads across an intersecting path. This transfer is designed for installation within the conveyor frame and uses pneumatic lift to position the wheel strands into the product path, providing a repeatable transfer action. The wheel transfer is commonly matched with gravity-fed conveyor sections where driven belt or chain conveyors are not required, and is suitable for loads up to approximately 500 pounds.
This unit is built with heavy-duty bearings and a positive lift mechanism that ensures consistent engagement of the transfer wheels with the product. Its simple, rugged construction makes it appropriate for mid-range load handling and environments where a moderate degree of directional control is needed without the complexity of driven chain or belt transfer systems.
Applications
- Right angle transfers between parallel conveyor runs
- Product routing to multiple downstream lines
- Pallet turning or reorientation within a conveyor cell
- Carton diverting in accumulation or sortation areas
- Controlled transfers in limited floor space layouts
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Packaging and converting facilities
- Food and beverage processing
- Consumer goods and industrial products handling
SPECIFICATIONS
| TRANSFER ARM | 7 ga. formed channel |
| TRANSFER WHEELS | Frantz model 35Z on 3 in wheel centers; wheels rated at 50 lb capacity each |
| STRANDS | 2, 3, 4, or more |
| STANDARD LENGTHS | 2 ft, 3 ft, 4 ft, and 5 ft |
| STRAND CENTERS | As required |
| LIFT | Positive type lift with 1 in of net lift |
| BEARINGS | Heavy duty, lubricated ball bearing unit with cast iron housings |
| MOUNTING | Integral part of unit with 15 in top of wheel elevation (down position); designed to mount between conveyor frames |
| ELECTRICAL CONTROLS | Optional |
| CAPACITY | Unit load not to exceed 500 lb |
| AIR CONTROLS | Air cylinder, double acting |
