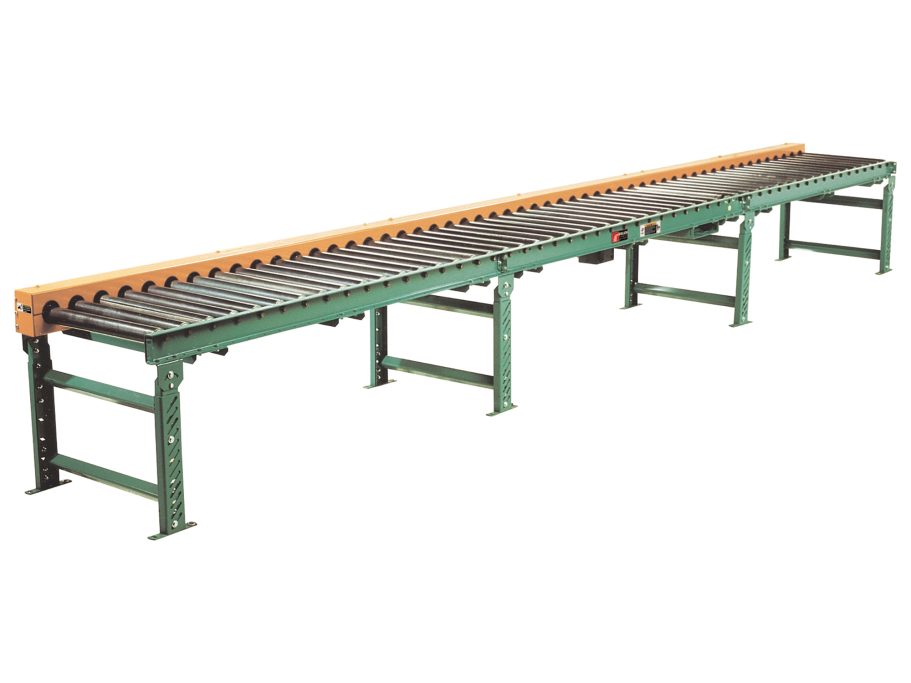

The 3530CDLR is designed for extremely heavy unit load applications where oversized or concentrated loads demand high structural strength. Featuring heavy wall rollers, larger chain sizes, and a reinforced frame and supports, this conveyor sustains rugged service over extended operational cycles.
Its roll-to-roller drive system uses precision bearings and enclosed chain guards to withstand harsh environments, making it suitable for extremely heavy conveying tasks where longevity and durability are essential.
Applications
- Pallet handling lines
- Drum conveying systems
- 90° transfers onto or off of conveyor lines
- Accumulation zones with controlled indexing
- Dirty or oil-exposed operating areas
- Specialty environments including washdown, freezer, and oven applications
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Food and beverage processing
- Packaging and material handling integrators
- Automotive and heavy equipment manufacturing
SPECIFICATIONS
| CONVEYING SURFACE | 35", 41", 47", 53", 59" |
| BF | 39", 45", 51", 57", 63" |
| OAW | 18-1/4", 24-1/4", 30-1/4", 36-1/4", 42-1/4", 48-1/4", 54-1/4", 57-1/4", 60-1/4", 66-1/4" |
| TREAD ROLLERS | 3-1/2″ dia. x .300 wall steel, model 3530S with sprockets. |
| CHAIN GUARD | The chain drive is completely enclosed along the entire length of the conveyor. |
| CENTER DRIVE | Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. |
| BEARINGS | Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth sealed. Roller bearings provide roller capacity of 540 lbs. per roller (maximum). |
| BED LENGTHS (6″ RC, #60 CHAIN AND 12″ RC, #80 CHAIN) | Intermediate bed section lengths 3′-0″, 4′-0″, 5′-0″, 6′-0″, 7′-0″, 8′-0″, 9′-0″ and 10′-0″ increments. Minimum overall conveyor length with drive 5′-0″. Maximum overall conveyor length 80′-0″. |
| BED LENGTHS (7-1/2″ RC, #80 CHAIN) | Intermediate bed section lengths 3′-1-1/2″, 3′-9″, 4′-4-1/2″, 5′-0″, 5′-7-1/2″, 6′-3″, 6′-10-1/2″, 7′-6″, 8′-1-1/2″, 8′-9″, 9′-4-1/2″ and 10′-0″. Minimum overall conveyor length with drive 5′-0″. Maximum overall conveyor length 80′-0″. |
| ROLLER CENTERS | 6″ with No. 60 chain; 7-1/2″ and 12″ with No. 80 chain. |
| CHAIN DRIVE | Roller to roller with No. 60 or No. 80 roller chain. |
| SPEED | 35 FPM, constant. |
| BED / FRAME | 6″ at 8.2 lbs. and 8″ at 11.5 lbs. structural steel frame. Bed sections attached with couplings and floor supports. |
| MOTOR DRIVE | 3/4 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CAPACITY | 2500 lbs. per roller. |
| FLOOR SUPPORTS | Optional |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Speed
Motors
Floor Supports
Undertrussed Bed
Ceiling Hangers
Guard Rails
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
