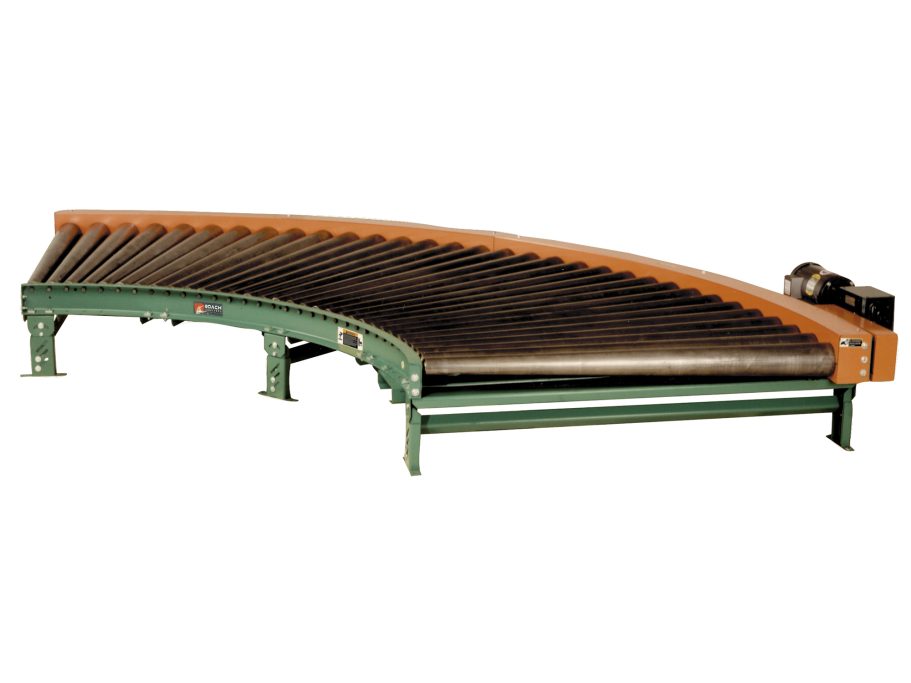

The 351TCDLRC is a true tapered roller chain driven live roller curve designed for applications requiring maintained orientation through curved segments. Heavy duty rollers taper across the width to track pallet and large load orientation as they traverse the curve, improving positional control for loads sensitive to twisting or misalignment.
Chain drive engagement and rugged construction provide reliable motion around the curve, and reversible drive placement supports flexible integration with adjacent conveyors.
Applications
- Pallet handling lines
- Drum conveying systems
- 90° transfers onto or off of conveyor lines
- Accumulation zones with controlled indexing
- Dirty or oil-exposed operating areas
- Specialty environments including washdown, freezer, and oven applications
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Food and beverage processing
- Packaging and material handling integrators
- Automotive and heavy equipment manufacturing
SPECIFICATIONS
| CONVEYING SURFACE | 36", 42", 48", 54", 60" |
| BF | 39", 45", 51", 57", 63" |
| OAW | 42-27/32", 48-27/32", 54-27/32", 60-27/32", 66-27/32" |
| TREAD ROLLERS | Heavy duty 11 ga. tapered rollers, model 351T with sprockets, for true taper effect. |
| CHAIN DRIVE | Roller to roller with No. 60 circular roller chain. |
| END DRIVE | Reversible drive, side mounted or underside (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. |
| CHAIN GUARD | Chain drive is enclosed, top and bottom, along entire length of conveyor. |
| ROLLER CENTERS | 6″ RC measured at outside radius of curve. |
| SPEED | 35 FPM, constant. |
| BEARINGS | Removable type, heavy duty bearings, zinc plated, grease packed, labyrinth sealed. |
| BED / FRAME | 5″ at 6.7 lbs. and 7″ at 9.8 lbs. structural steel channel frame. |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 3/4 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| DRIVE LOCATION | Drive located on outside of curve. Specify right hand drive or left hand drive (drive hand determined with reference point located at outside of curve). |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Speed
Motors
Floor Supports
Undertrussed Bed
Ceiling Hangers
Guard Rails
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
