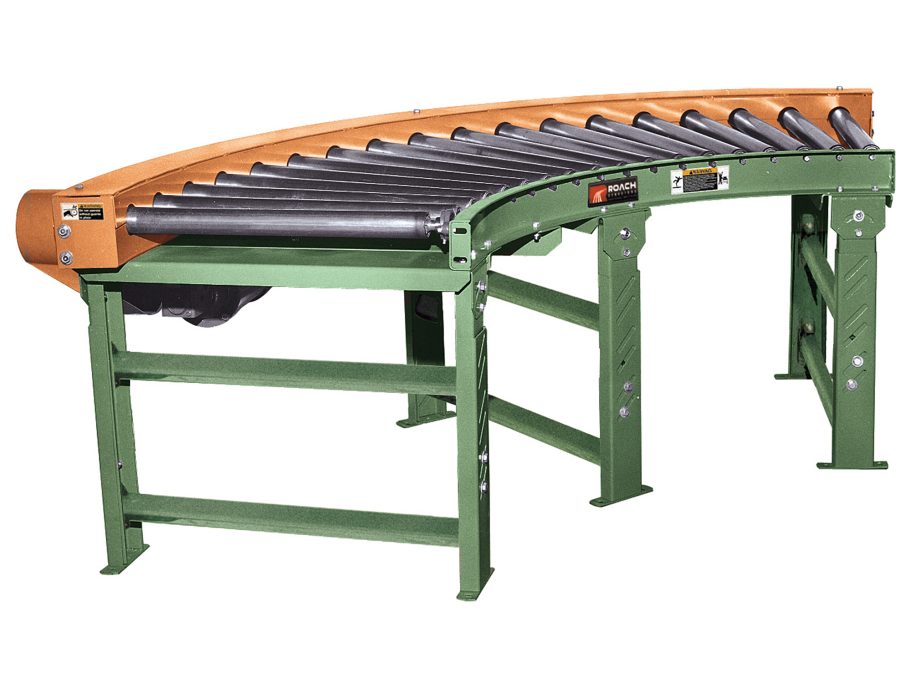

The 297CDLRC brings heavy duty CDLR performance to curved layouts, enabling movement of robust unit loads through directional changes with consistent motion control. The chain driven roller system minimizes slippage and maintains drive engagement around the curve, supporting reliable flow of pallets, drums, or castings through facility transitions.
Structural steel framing and precision bearing support contribute to long service life in industrial settings with frequent load handling.
Applications
- Pallet handling lines
- Drum conveying systems
- 90° transfers onto or off of conveyor lines
- Accumulation zones with controlled indexing
- Dirty or oil-exposed operating areas
- Specialty environments including washdown, freezer, and oven applications
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Food and beverage processing
- Packaging and material handling integrators
- Automotive and heavy equipment manufacturing
SPECIFICATIONS
| CONVEYING SURFACE | 12", 18", 24", 30", 36", 42", 48", 51", 54", 60" |
| BF | 15", 21", 27", 33", 39", 45", 51", 54", 57", 63" |
| OAW | 18-1/4", 24-1/4", 30-1/4", 36-1/4", 42-1/4", 48-1/4", 54-1/4", 57-1/4", 60-1/4", 66-1/4" |
| TREAD ROLLERS | 2-9/16″ dia. x 7 ga. steel rollers, model 297S with sprockets. |
| CHAIN DRIVE | Roller to roller with No. 60 roller chain. |
| ROLLER CENTERS | 6″ RC measured at outside radius of curve. |
| END DRIVE | Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. |
| BED / FRAME | 4″ at 5.4 lbs. and 6″ at 8.2 lbs. structural steel channel frame. |
| SPEED | 35 FPM, constant. |
| BEARINGS | Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth sealed. Roller bearings provide roller capacity of 540 lbs. per roller (maximum). |
| CHAIN GUARD | The chain drive is completely enclosed along the entire length of the conveyor. |
| MOTOR DRIVE | 3/4 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| FLOOR SUPPORTS | Optional |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Speed
Motors
Floor Supports
Undertrussed Bed
Ceiling Hangers
Guard Rails
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
