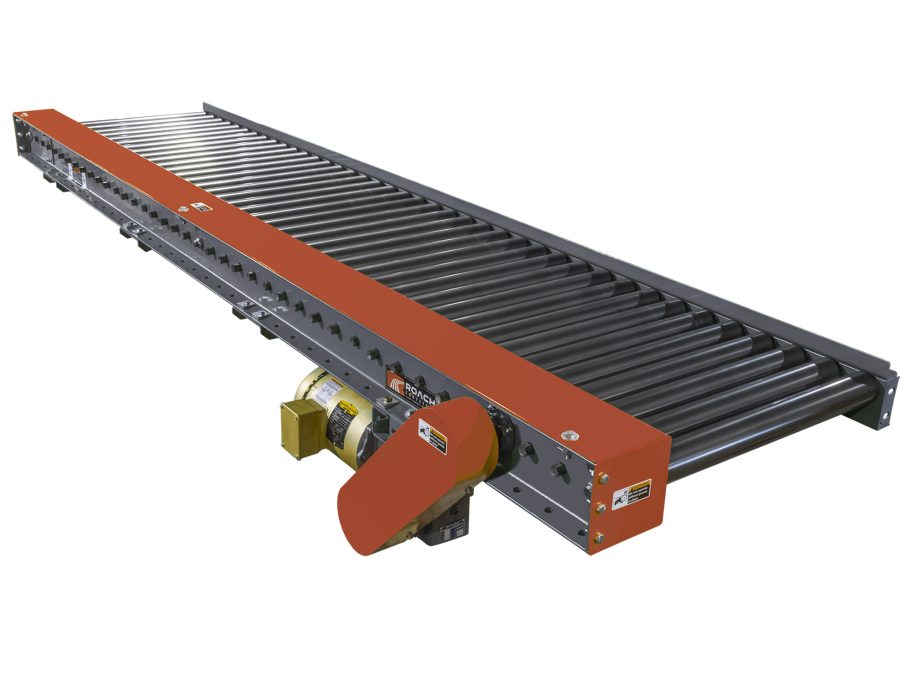

The 251CDLR is a heavy duty chain driven live roller conveyor built for moving significant loads including tote pans, castings, drums, or palletized products under demanding conditions such as oil-laden environments. Its roll-to-roll chain drive and robust structural frame deliver stable motion and durability for frequent stops, starts, and reversing operations.
The conveyor uses heavy-gauge steel rollers with welded sprockets and precision bearings, and offers reversible drive mounting for versatile layout options. Enclosed chain guards and multiple roller center configurations support tailored deployment for heavier material handling tasks.
Applications
- Pallet handling lines
- Drum conveying systems
- 90° transfers onto or off of conveyor lines
- Accumulation zones with controlled indexing
- Dirty or oil-exposed operating areas
- Specialty environments including washdown, freezer, and oven applications
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Food and beverage processing
- Packaging and material handling integrators
- Automotive and heavy equipment manufacturing
SPECIFICATIONS
| CONVEYING SURFACE | 12", 18", 24", 30", 36", 42", 48", 51", 54", 60" |
| BF | 15", 21", 27", 33", 39", 45", 51", 54", 57", 63" |
| OAW | 18", 24", 30", 36", 42", 48", 54", 57", 60", 66" |
| TREAD ROLLERS | 2-1/2″ dia. x 11 ga. steel rollers, model 251S with sprockets. |
| CHAIN DRIVE | Roll-to-roll no. 60 roller chain. |
| ROLLER CENTERS | 4-1/2″, 6″, 9″ or 12″. |
| CENTER DRIVE | Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. |
| BED / FRAME | 6″ x 1-1/2″ x 7 ga. and 4″ x 1-1/2″ x 7 ga. formed steel channel frame. Bed sections attached with couplings and floor supports. |
| MOTOR DRIVE | 3/4 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| BEARINGS | Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth sealed. Roller bearings provide roller capacity of 540 lbs. per roller (maximum). |
| CHAIN GUARD | The chain drive is completely enclosed along the entire length of the conveyor. |
| SPEED | 35 FPM, constant. |
| BED LENGTHS (4-1/2″ OR 9″ RC) | Intermediate bed section lengths 3′-0″, 3′-9″, 4′-6″, 5′-3″, 6′-0″, 6′-9″, 7′-6″, 8′-3″, 9′-0″ and 9′-9″ increments. Minimum overall conveyor length with drive 5′-3″. Maximum overall conveyor length: 58′-6″ with 4-1/2″ RC; 78′-0″ with 9″ RC. |
| BED LENGTHS (6″ OR 12″ RC) | Intermediate bed section lengths are available in 1′-0″ increments. Minimum overall conveyor length with drive 5′-0″. Maximum overall conveyor length 80′-0″. |
| FLOOR SUPPORTS | Optional |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Speed
Motors
Floor Supports
Undertrussed Bed
Ceiling Hangers
Guard Rails
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
