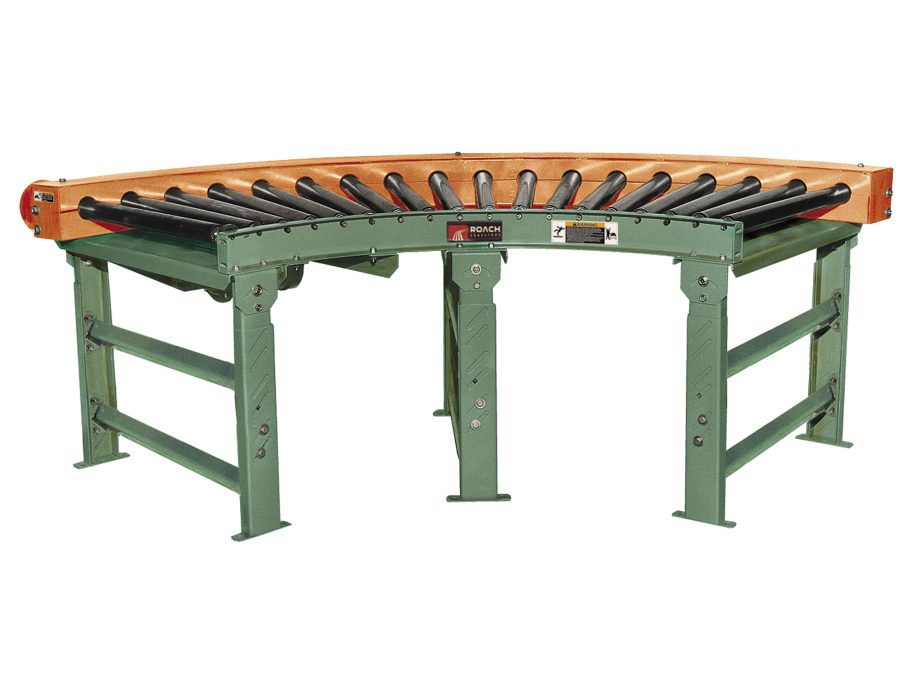

The 192CDLRC provides medium duty curved conveying where space constraints or system geometry require directional changes. It uses the same chain-to-roller drive principles as straight CDLR conveyors, providing smooth, controlled motion around curves for loads such as castings or drums.
Reversible drive positioning and enclosed chain protection support reliability in typical industrial settings. For medium duty applications where pallet orientation must be preserved through a turn, consider a tapered roller alternative.
Applications
- Pallet handling lines
- Drum conveying systems
- 90° transfers onto or off of conveyor lines
- Accumulation zones with controlled indexing
- Dirty or oil-exposed operating areas
- Specialty environments including washdown, freezer, and oven applications
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Food and beverage processing
- Packaging and material handling integrators
- Automotive and heavy equipment manufacturing
SPECIFICATIONS
| CONVEYING SURFACE | 90°, 45° | 12", 18", 24", 30", 36", 42", 48" |
| BF | 90°, 45° | 15", 21", 27", 33", 39", 45", 51" |
| OAW | 90°, 45° | 18", 24", 30", 36", 42", 48", 54" |
| TREAD ROLLERS | 1.9″ dia. x 12 ga. steel, model 192S with sprockets. |
| CHAIN DRIVE | Roller to roller with No. 40 circular roller chain. |
| END DRIVE | Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. |
| CHAIN GUARD | The chain drive is completely enclosed along the entire length of the conveyor. |
| ROLLER CENTERS | 5″ RC measured at outside radius of curve. |
| DRIVE LOCATION | Drive located on outside of curve. Specify right hand drive or left hand drive (drive hand determined with reference point located at outside of curve). |
| SPEED | 45 FPM, constant. |
| BEARINGS | Removable type, zinc-plated, grease packed, labyrinth sealed. |
| BED / FRAME | 5-1/2″ x 1-1/2″ x 10 ga. and 3-1/2″ x 1-1/2″ x 10 ga. formed steel channel frame. |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ELECTRICAL CONTROLS | Optional |
