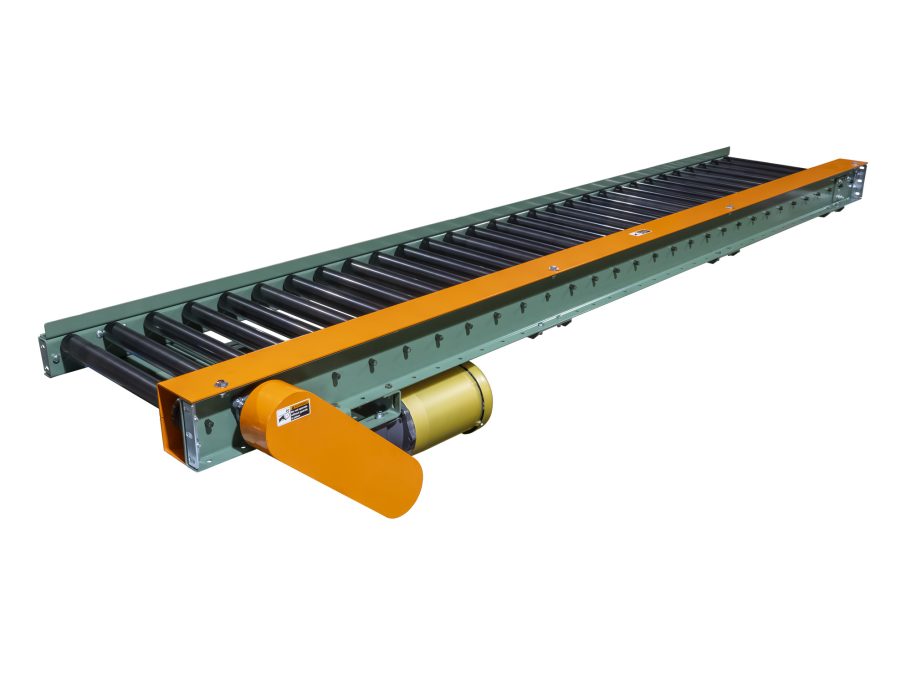

The 192CDLR is a medium duty chain driven live roller conveyor engineered for controlled movement of unit loads such as tote pans, castings, drums, and palletized products that do not demand orientation control. Its roll-to-roll chain drive transmits torque directly through welded sprockets on each roller, supporting consistent motion and resistance to slippage in diverse operating conditions. The conveyor frame uses formed steel channel sections with enclosed chain drive and precision, lubricated bearings to support sustained operation.
This model is suitable where moderate load capacities and dependable serviceability are required. Reversible center drive options allow flexibility in layout configurations, and multiple roller center spacing options accommodate a range of load sizes.
Applications
- Pallet handling lines
- Drum conveying systems
- 90° transfers onto or off of conveyor lines
- Accumulation zones with controlled indexing
- Dirty or oil-exposed operating areas
- Specialty environments including washdown, freezer, and oven applications
Industries
- Manufacturing and assembly operations
- Distribution and fulfillment centers
- Food and beverage processing
- Packaging and material handling integrators
- Automotive and heavy equipment manufacturing
SPECIFICATIONS
| CONVEYING SURFACE | 12", 18", 24", 30", 36", 42", 48" |
| BF | 15", 21", 27", 33", 39", 45", 51" |
| OAW | 18", 24", 30", 36", 42", 48", 54" |
| TREAD ROLLERS | 1.9″ dia. x 12 ga. steel, model 192S with sprockets. |
| CHAIN DRIVE | Roll-to-roll no. 40 roller chain. |
| CENTER DRIVE | Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. |
| CHAIN GUARD | The chain drive is completely enclosed along the entire length of the conveyor. |
| ROLLER CENTERS | 4″, 6″, 8″ or 12″ centers available. |
| SPEED | 45 FPM, constant. |
| BEARINGS | Removable type, zinc-plated, grease packed, labyrinth sealed. |
| BED / FRAME | 5-1/2″ x 1-1/2″ x 10 ga. and 3-1/2″ x 1-1/2″ x 10 ga. formed steel channel frame. |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Speed
Motors
Floor Supports
Undertrussed Bed
Ceiling Hangers
Guard Rails
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
