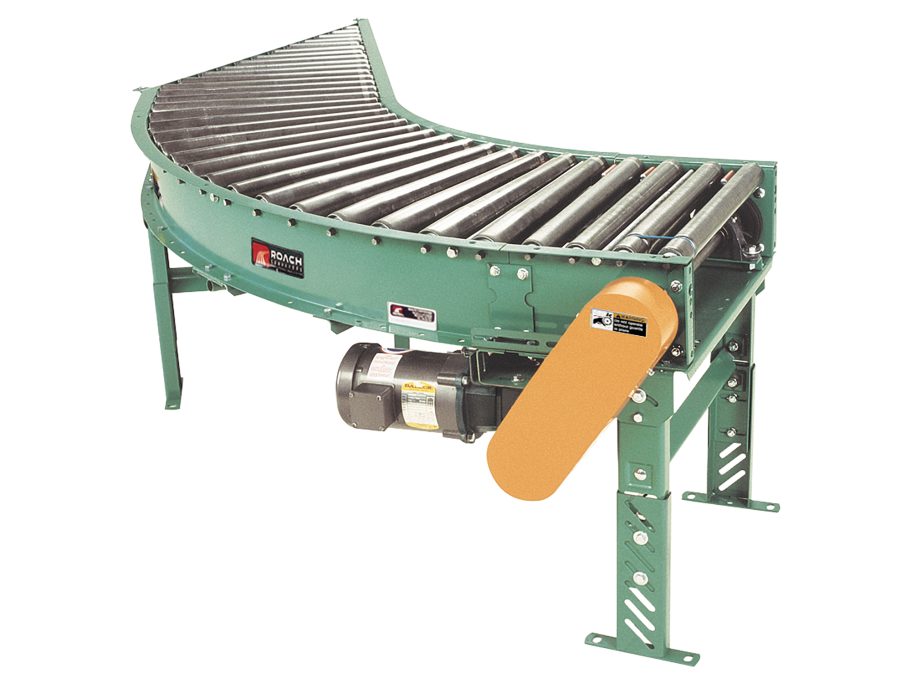

The 196LRCS offers a medium duty spur curve solution for diverting or merging product in live roller systems. With tapered roller sections and adjustable belt tension sheaves, it maintains orientation in branching applications and integrates with other medium duty conveyors.
Its drive and frame design support moderate load ranges typical of manufacturing and fulfillment facilities, making it suitable where product paths require controlled transitions without interrupting flow or product spacing.
Applications
- Accumulation and release of cartons and totes
- Zero to low pressure product conveying
- Product routing through curves, spurs, and merges
- Zoned conveying with sensor and control logic
- Unit handling in packaging and assembly lines
- Transfer between processing, sorting, and palletizing areas
Industries
- Distribution and fulfillment centers
- Manufacturing and assembly operations
- Packaging and labeling facilities
- E-commerce order processing
- Consumer goods handling
- Controlled indoor industrial environments
SPECIFICATIONS
| BF | 13", 15", 17", 19", 21", 23", 25", 27", 31", 33", 37", 39" |
| OAW | 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", 42" |
| TREAD ROLLERS | 2-1/2 in dia. to 1-11/16 in dia. x 14 ga. steel tapered rollers, model 254T; 1.9 in dia. x 16 ga. steel straight tangent rollers, model 196S |
| PRESSURE SHEAVES | Provides drive belt pressure to upper tread rollers |
| BELTING | B section V-belt |
| TAKE-UP | Screw type adjustable sheave with flat idler sheaves to maintain belt tension |
| TANGENTS | 12 in opposite spur end on 60/30 unit; 18 in opposite spur end on 45/45 unit |
| SPEED | 60 FPM constant |
| BED | 7 in x 1-1/2 in x 12 ga. formed steel channel frame |
| BEARINGS | Precision heavy duty lubricated ball bearing units with cast iron housings |
| ROLLER CHAIN | Drive shaft driven by No. 50 chain |
| FLOOR SUPPORTS | Optional |
| DRIVE LOCATION | Drive located on outside of curve; specify left hand tangent length, right hand tangent length, and left hand drive or right hand drive (reference point at outside of curve). For slave-driven models, specify drive shaft location |
| CAPACITY | 500 lb total distributed live load |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
End Drive
Side Mounted End Drive
Auxiliary Take-up
Floor Supports
Ceiling Hangers
Guard Rails
Speed
Motors
Controls
