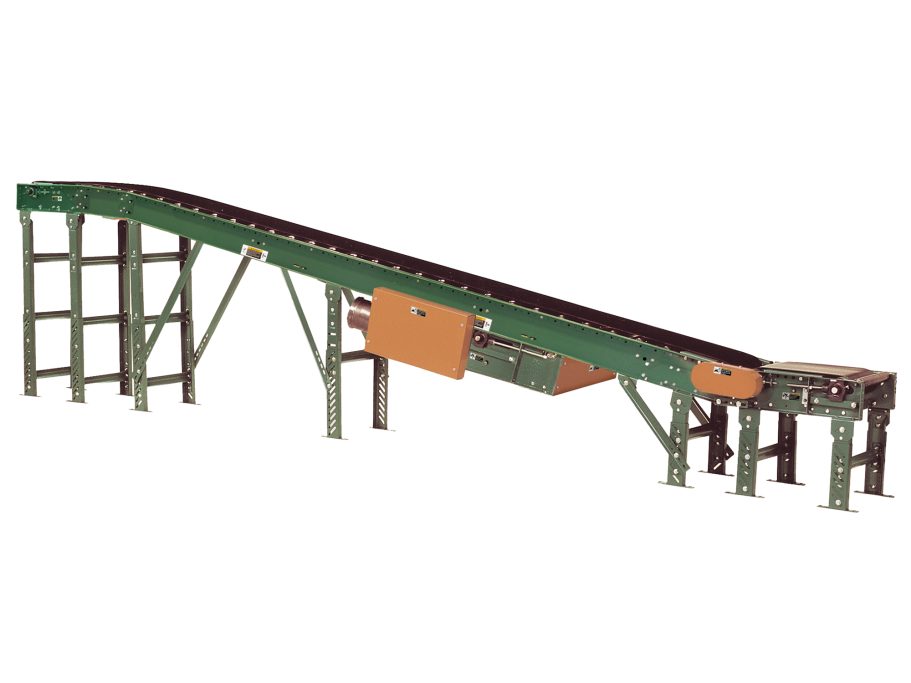

The 796RBF incline roller bed belt conveyor provides a robust solution for elevating medium duty products while reducing belt friction through its roller support system. It supports reversible flow and can be configured with nose-over sections for smooth transitions between horizontal and incline segments.
This model is appropriate where moderate elevation changes are required without sacrificing load stability or motor efficiency, such as floor-to-floor conveying or feeding elevated processing points. The roller bed aids in maintaining consistent product movement on grades.
Applications
- Convey cartons and cardboard boxes
- Transport totes and reusable containers
- Move fixtures and work-in-process components
- Meter and space packages for downstream equipment
- Accumulate or brake products between process steps
- Elevate or lower unit loads between operating levels
Industries
- Warehousing and distribution centers
- Manufacturing and assembly operations
- Packaging and fulfillment lines
- Inspection, testing, and quality control areas
- Material handling and logistics facilities
SPECIFICATIONS
| TYPE | Roller bed belt conveyor incline (floor-to-floor) |
| BELT WIDTH | 12", 18", 24", 30", 36" |
| BELTING | Black PVC rough-top |
| DRIVE PULLEY | 8" dia. with 1-7/16" dia. shaft; crowned and fully lagged |
| CARRIER ROLLERS | 1.9" dia. x 16 ga. steel rollers, model 196S |
| TAIL PULLEY | 4" dia., crowned, with 1-3/16" dia. shaft |
| DRIVE ARRANGEMENT | Center drive, reversible, with 24" belt take-up |
| NOSE-OVER | Single nose-over adjust 0-20 degrees; double nose-over adjust 0-35 degrees |
| BEARINGS | Precision, heavy duty, lubricated ball bearing units with cast iron housings |
| RETURN ROLLERS | 1.9" dia. x 16 ga. steel, model 196S, adjustable |
| BELT SPEED | 60 FPM, constant |
| BED / FRAME | 7" x 12 ga. channel frame |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CHAIN | No. 50 chain for 1-1/2 HP or less; No. 60 chain on larger drives; chain take-up on motor base |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Center Drive
Side Mounted End Drive
Overhead End Drive
Auxiliary Take-up
Side Tables
Floor Supports
Nose-Over
Undertrussed Bed
Ceiling Hangers
Guard Rails
Belt Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
