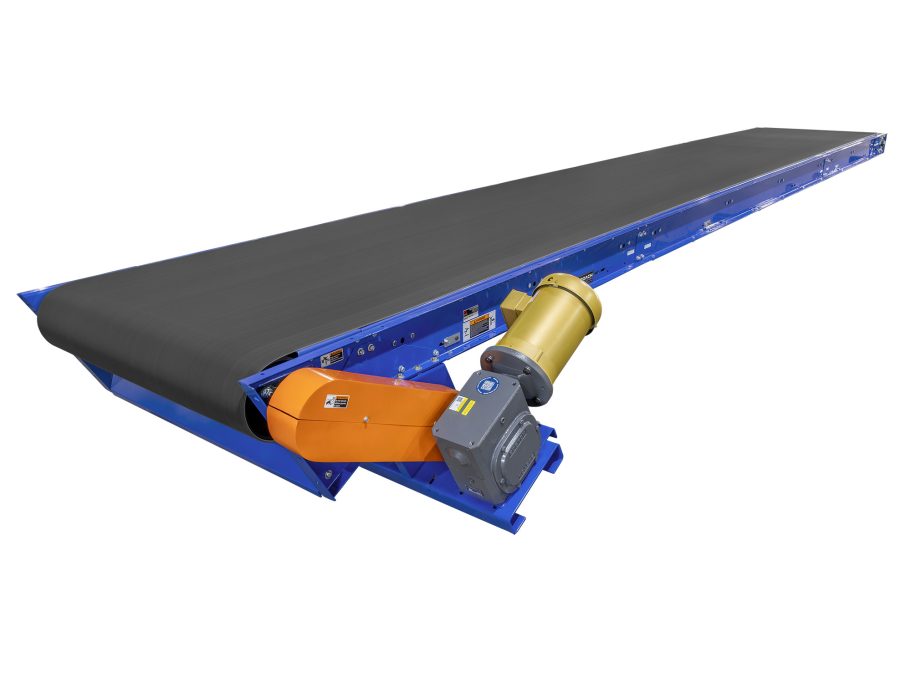

The 700SB slider bed belt conveyor is a widely used solution for medium duty conveying, featuring a solid bed that supports consistent belt tracking and product stability. This design is economical, straightforward to install, and reliable in assembly and transport operations.
Its construction suits general transportation, change-of-elevation tasks, brake belt functions, and meter belt applications. The slider bed enables quiet operation and accommodates a variety of package sizes and shapes across horizontal and shallow incline runs.
Applications
- Convey cartons and cardboard boxes
- Transport totes and reusable containers
- Move fixtures and work-in-process components
- Meter and space packages for downstream equipment
- Accumulate or brake products between process steps
- Elevate or lower unit loads between operating levels
Industries
- Warehousing and distribution centers
- Manufacturing and assembly operations
- Packaging and fulfillment lines
- Inspection, testing, and quality control areas
- Material handling and logistics facilities
SPECIFICATIONS
| TYPE | Slider bed medium duty belt conveyor |
| BELT WIDTH | 6", 12", 18", 24", 30", 36" |
| BELTING | PVC-120 black |
| DRIVE PULLEY | 4" dia. with 1-3/16" dia. shaft OR 8" dia. with 1-7/16" dia. shaft; crowned and fully lagged |
| TAIL PULLEY | 4" dia., crowned, with 1-3/16" dia. shaft |
| DRIVE ARRANGEMENT | End drive for one-direction; optional center drive for reversible application |
| TAKE-UP | Screw type at tail pulley provides 12" belt take-up |
| BEARINGS | Precision, heavy duty, lubricated ball bearing units with cast iron housings |
| RETURN ROLLERS | 1.9" dia. x 16 ga. steel, model 196S, adjustable |
| BELT SPEED | 60 FPM, constant |
| BED / FRAME | 7" x 12 ga. channel frame with 14 ga. slider bed (9"-27" BF); 12 ga. bed (33" BF and above) with bed pan braces |
| FLOOR SUPPORTS | Optional |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ROLLER CHAIN | No. 50 chain for 1-1/2 HP or less; No. 60 chain on larger drives; chain take-up on motor base |
| SAFETY POP-OUT ROLLERS | Standard on both ends, 1.9" dia. x 16 ga. steel roller, model 196S |
| ELECTRICAL CONTROLS | Optional |
DETAILS
ACCESORIES / OPTIONS
Center Drive
Side Mounted End Drive
Overhead End Drive
Auxiliary Take-up
Side Tables
Floor Supports
Nose-Over
Undertrussed Bed
Ceiling Hangers
Guard Rails
Belt Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
