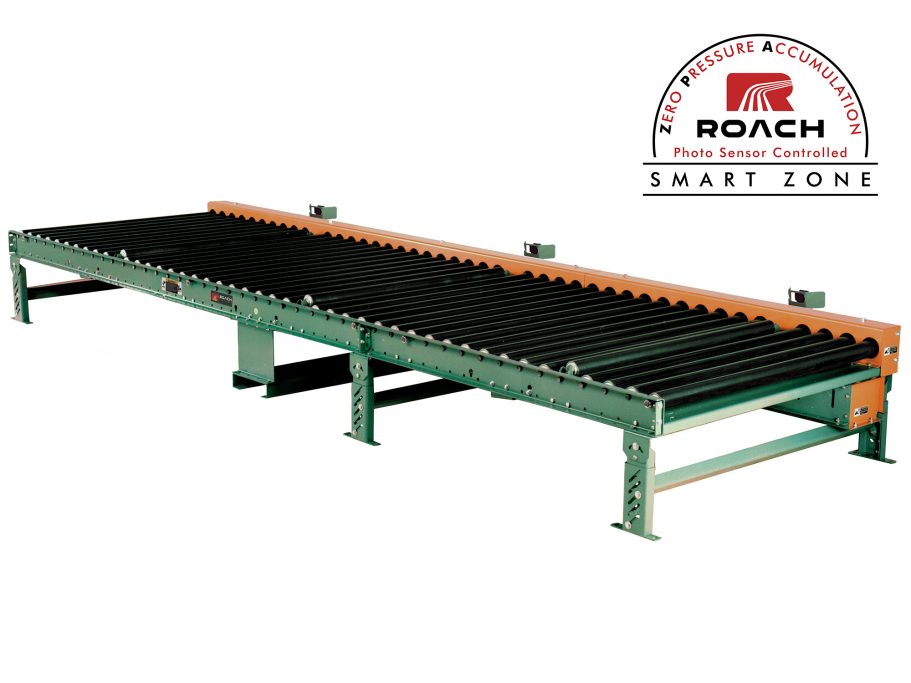

SZA251CDA
Chain Driven Zero Pressure Accumulator Smart Zone® Heavy Duty Conveyor
The SZA251CDA heavy duty chain driven Smart Zone® accumulator extends the benefits of zero pressure accumulation to heavier unit loads and more demanding conditions. Photoelectric sensors manage zone detection without minimum weight activation, while chain drive mechanics deliver robust traction across broader loads and extended run lengths. This model handles the rigors of heavy duty accumulation where pallets, larger containers, and dense packages must be buffered without back pressure.
Roll-to-roll chain systems combined with precision bearings and enclosed chain guards ensure sustained performance in high usage environments. The zone design allows for precise singulation control, and the conveyor’s construction supports multi-zone layouts that integrate with larger conveying systems common in industrial processing, distribution, and heavy goods handling.
Applications
- Product buffering between processes
- Merging and singulation of cartons or totes
- Accumulation before sortation, labeling, or inspection
- Controlled release into packaging or palletizing equipment
- Staging product for shipping and order fulfillment
Industries
- Distribution and fulfillment operations
- Manufacturing and assembly lines
- Packaging and material handling systems
- Food and beverage processing
- Automotive and industrial manufacturing
SPECIFICATIONS
| BF | 15", 21", 27", 33", 39", 45", 51", 54", 57", 63" |
| CONVEYING SURFACE | 12", 18", 24", 30", 36", 42", 48", 51", 54", 60" |
| TREAD ROLLERS | 2.5" dia. x 11 ga., model 251S. |
| CHAIN DRIVE | Roller-to-roller No. 40 roller chain. Zone-to-zone No. 60 roller chain. |
| CHAIN GUARD | All chains are completely enclosed along the entire length of conveyor. |
| CENTER DRIVE | Drive either side mounted or underside mounted (specify). Drive shafts are supported by precision, heavy duty, lubricated, ball bearing units. |
| ROLLER CENTERS | 4" or 6" RC ONLY. |
| SPEED | 35 FPM, constant. |
| ACCUMULATION ZONE | 5'-0" zone lengths, zone singulation operation, photo electric sensor controlled zones with air clutch (60 psi max). |
| BED / FRAME | 7-1/2" x 1-1/2" x 7 ga. and 5" x 1-1/2" x 7 ga. formed steel channel frame. Bed sections are bolted together with butt couplings and floor supports. |
| FLOOR SUPPORTS | Optional. |
| BEARINGS | Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth seal. |
| FRL | Unit is provided with filter, regulator and lubricator with 3/8" ports for 60 PSI operational pressure. |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor. |
| CAPACITY | 1000 lbs./ft. up to a maximum of 3000 lb. pallet load. |
| ELECTRICAL CONTROLS | Optional. |
DETAILS
ACCESORIES / OPTIONS
Zone Lengths
Bed Size
Tread Rollers
Floor Supports
Speed
Motors
Defused Smart Zone®
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
