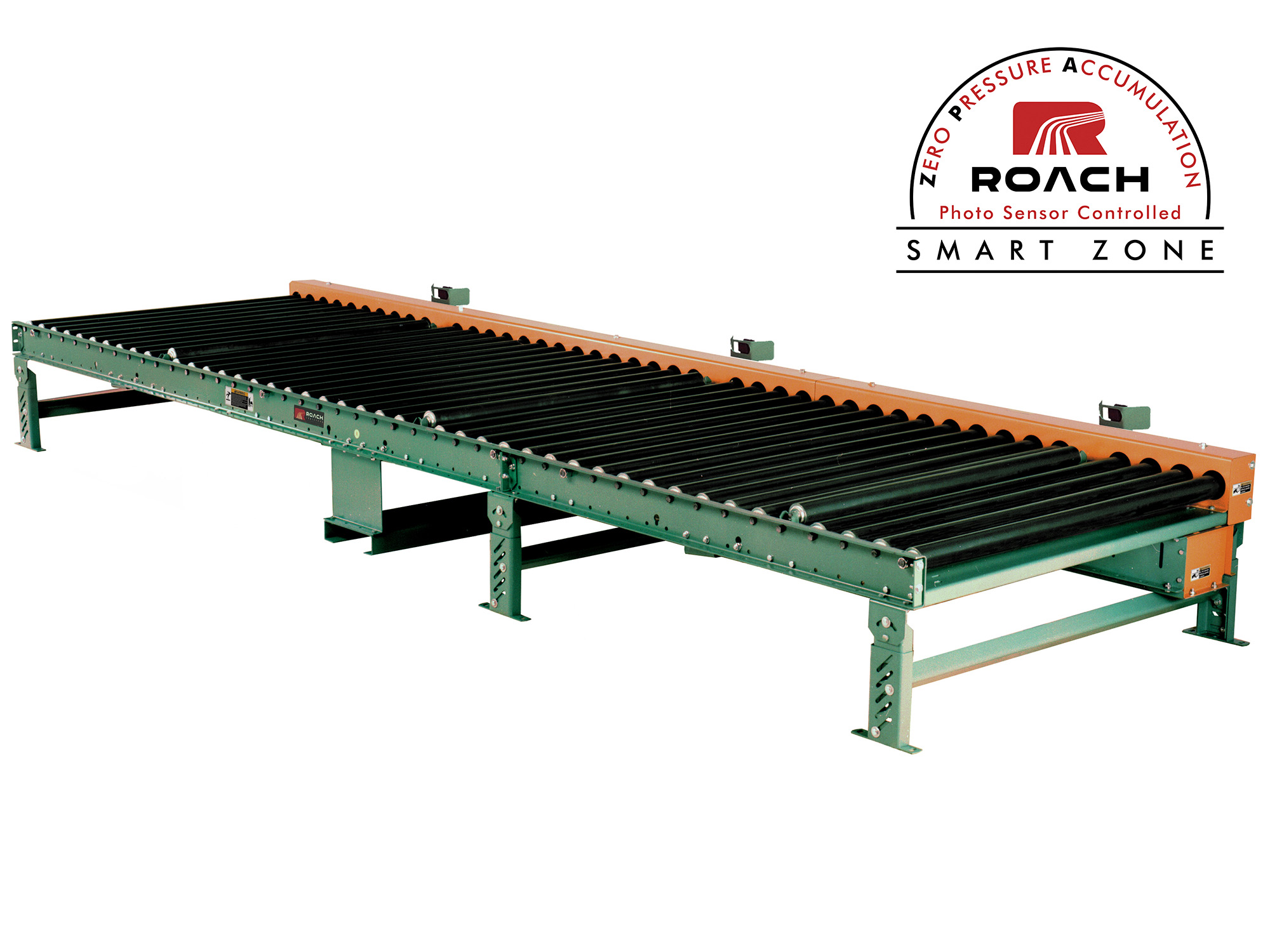

SZA192CDA
Chain Driven Zero Pressure Accumulator Smart Zone® Medium Duty Conveyor
The SZA192CDA is a medium duty chain driven zero pressure accumulator that utilizes Smart Zone® photoelectric sensors instead of roller-based sensors to detect product presence accurately in 5-foot zones. Products are singulated individually off the conveyor, eliminating contact between items during accumulation and reducing the risk of jams or product damage. This roll-to-roll chain drive configuration supports consistent traction and handling for medium duty packages and unit loads.
Precision chain drives, enclosed guards, and heavy duty ball bearings define the mechanical framework, enabling smooth operation under typical load conditions up to medium duty ranges. The conveyor’s modular zones and pneumatic zone control simplify integration into larger systems and offer maintenance accessibility, making this option fitting for manufacturing, packaging, and distribution systems that require controlled accumulation with dependable chain drive performance.
Applications
- Product buffering between processes
- Merging and singulation of cartons or totes
- Accumulation before sortation, labeling, or inspection
- Controlled release into packaging or palletizing equipment
- Staging product for shipping and order fulfillment
Industries
- Distribution and fulfillment operations
- Manufacturing and assembly lines
- Packaging and material handling systems
- Food and beverage processing
- Automotive and industrial manufacturing
SPECIFICATIONS
| BF | 15", 21", 27", 33", 39", 43", 51" |
| CONVEYING SURFACE | 12", 18", 24", 30", 36", 42", 48" |
| TREAD ROLLERS | 1.9" dia. x 12 ga., model 192S. |
| CHAIN DRIVE | Roller-to-roller No. 40 roller chain. Zone-to-zone No. 60 roller chain. |
| CHAIN GUARD | All chains are completely enclosed along the entire length of conveyor. |
| CENTER DRIVE | Drive either side mounted or underside mounted (specify). Drive shafts are supported by precision, heavy duty, lubricated, ball bearing units. |
| ROLLER CENTERS | 4" or 6" RC ONLY. |
| SPEED | 35 FPM, constant. |
| ACCUMULATION ZONE | 5'-0" zone lengths, zone singulation operation, photo electric sensor controlled zones with air clutch (60 psi max). |
| BED / FRAME | 6-1/2" x 1-1/2" x 10 ga. and 4-1/2" x 1-1/2" x 10 ga. formed steel channel frame. Bed sections are bolted together with butt couplings and floor supports. |
| FLOOR SUPPORTS | Optional. |
| BEARINGS | Removable type, heavy duty ball bearings, zinc-plated, grease packed, labyrinth seal. |
| FRL | Unit is provided with filter, regulator and lubricator with 3/8" ports for 60 PSI operational pressure. |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor. |
| CAPACITY | 300 lbs./ft. up to a maximum of 1200 lb. pallet load. |
| ELECTRICAL CONTROLS | Optional. |
DETAILS
ACCESORIES / OPTIONS
Zone Lengths
Bed Size
Tread Rollers
Floor Supports
Side Mounted Clutch
Speed
Motors
Defused Smart Zone®
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
