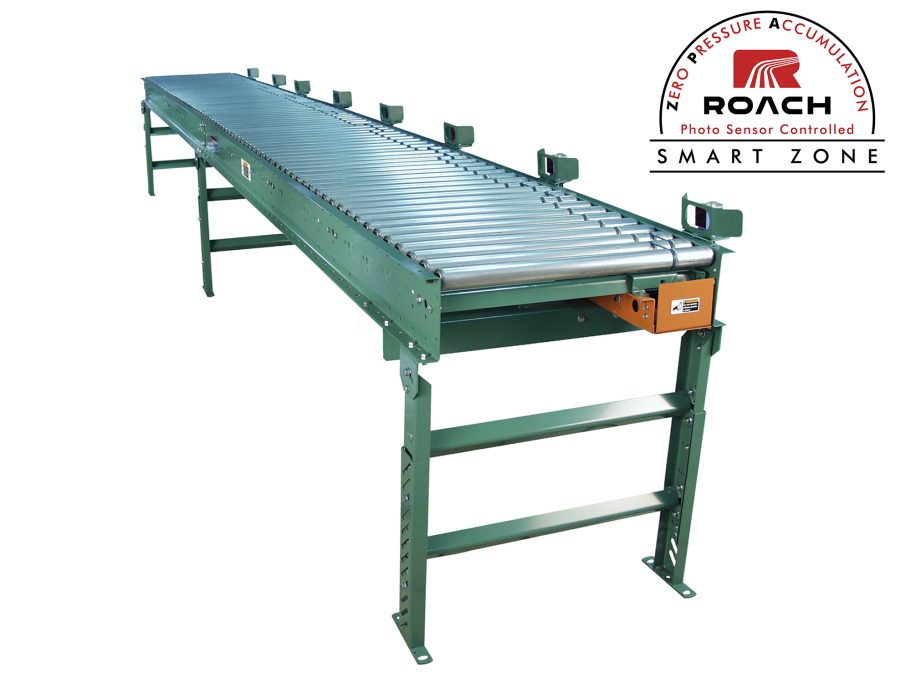

The SZ796LSZ combines zero pressure accumulation with a line shaft driven design that supports light to medium duty operations. Smart Zone® photoelectric sensors detect product presence for zone singulation without requiring a minimum product weight, allowing a wide variety of package sizes and formats to accumulate without back pressure. Its line shaft drive consolidates power delivery across connected modules, which can include spurs and curves driven from a single motor.
This configuration delivers an efficient solution where space constraints or system simplicity is prioritized, providing reliable accumulation control while minimizing the number of individual drives. The formed steel channel frame and precision bearings support continuous operation, making this conveyor suitable for integrated conveyor networks in light manufacturing, order fulfillment, and distribution centers.
Applications
- Product buffering between processes
- Merging and singulation of cartons or totes
- Accumulation before sortation, labeling, or inspection
- Controlled release into packaging or palletizing equipment
- Staging product for shipping and order fulfillment
Industries
- Distribution and fulfillment operations
- Manufacturing and assembly lines
- Packaging and material handling systems
- Food and beverage processing
- Automotive and industrial manufacturing
SPECIFICATIONS
| BF | 15", 21", 27", 33", 39" |
| OAW | 18", 24", 30", 36", 42" |
| TREAD ROLLERS | 1.9" dia. x 16 ga. steel, model 196S grooved. |
| DRIVE BELT | 3/16" dia., polyurethane belts. Nominal 15 lbs. per roller drive. |
| DRIVE SHAFT | 1" dia. C1018 cold rolled steel shaft. |
| COUPLINGS | Couplings located both ends (type "A"), one end only (type "B" or "C") or none (type "D"). |
| CENTER DRIVE | Located approximately 16-1/2" from end of bed section on 4" RC; 18" on 3" and 6" RC. |
| BEARINGS | All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. |
| ACCUMULATION | Zone singulation operation; 2'-0" zone length, photoeye controlled. |
| SPEED | 60 FPM, constant. |
| BED / FRAME | 7" x 1-1/2" x 12 ga. formed steel channel frame. Bed sections attached with splice plates and floor supports. |
| FLOOR SUPPORTS | Optional. |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor. |
| ROLLER CHAIN | Drive shaft is driven by No. 50 chain. Chain take-up provided on motor base. |
| ELECTRICAL CONTROLS | Optional. |
DETAILS
ACCESORIES / OPTIONS
Zone Lengths
Slug Realease
Bed Size
Tread Rollers
Floor Supports
Side Mounted Drive
Speed
Ceiling Hangers
Motors
Defused Smart Zone®
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
