The Continuous Vertical Conveyor (CVC) provides uninterrupted vertical transport using a series of carriers that move continuously to support higher throughput requirements. In a C-Flow configuration, product is conveyed from the lower level to the upper level on the same side of the unit, maintaining consistent entry and exit orientation for straightforward integration with horizontal conveyors.

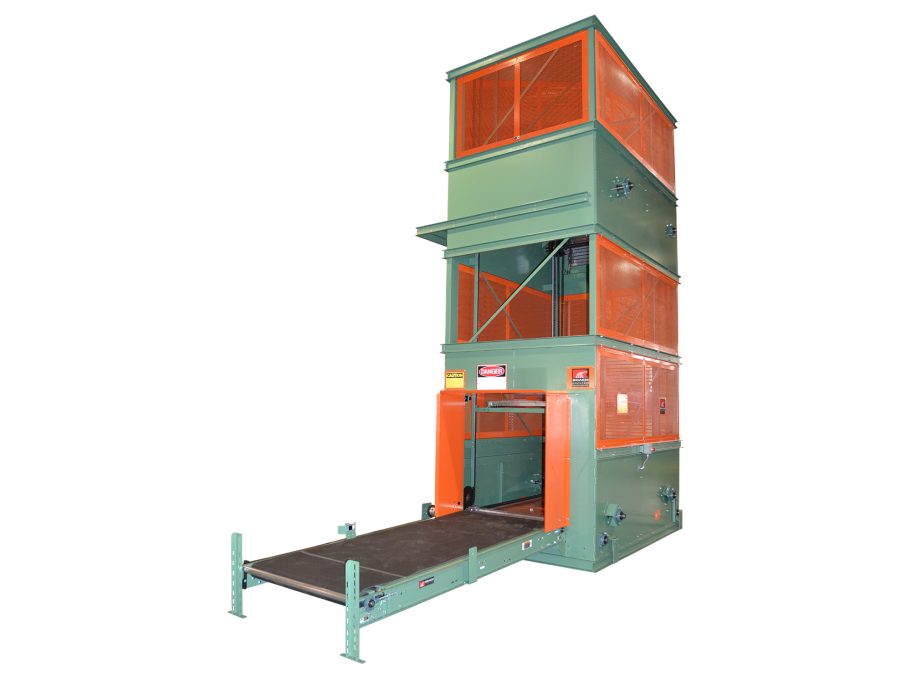

In a Z-Flow configuration, product enters at the lower level and exits on the opposite side at the upper level, following a Z-shaped path that supports offset infeed and discharge points. Both configurations are designed for continuous operation and industrial-duty performance, making the CVC well suited for high-volume applications requiring efficient elevation change and flexible system layouts.
Applications
- Floor-to-floor or mezzanine-to-floor material transfer
- Pallet and unit load elevation in limited floor space
- Feeding or discharging automated storage systems
- Vertical transitions within sortation or accumulation lines
- Process elevation changes in manufacturing or assembly operations
Industries
- Distribution and fulfillment operations
- Manufacturing and assembly facilities
- Warehousing and logistics centers
- Food and packaged goods handling
- Automotive and industrial products manufacturing
- E-commerce and order processing environments
SPECIFICATIONS
| CAPACITY | Up to 3000 lbs. |
| BED / FRAME | Heavy duty tubular construction. |
| DRIVE | (4) continuous roller chains driven by a suitably sized brake motor. |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| RATE | Up to 25 loads per minute. |
| SPEED | 60 FPM (100 FPM maximum). |
| LOADING | Automatic loading is accomplished by metering belt. Operator attention is not required. |
| PLATFORM | Size depends upon product. |
| GUARDS | Expanded metal guarding. |
| CONTROLS | Supplied as required. |
DETAILS
ACCESORIES / OPTIONS
C-Flow Pattern
Z-Flow Pattern
Guard Rails
Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
