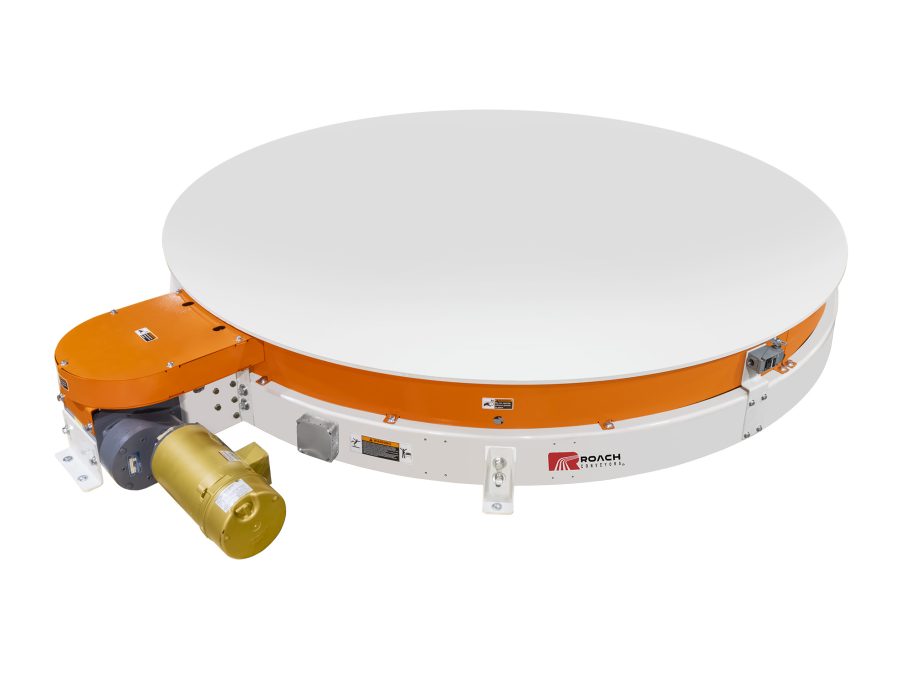

The IPT indexing powered turntable rotates heavy unit loads in discrete positional increments, enabling precise orientation for subsequent processing or routing. The turntable platform can be fitted with a heavy duty chain driven live roller or other conveyor modules to support load transfer and rotation at defined stops, which aids in loading, unloading, or inspection tasks. Capable of handling pallet loads in heavy duty environments, the indexing mechanism ensures consistent placement and repeatability.
This turntable suits applications requiring controlled rotation and positioning within pallet handling operations or multi-directional conveyor systems. Its robust structural design and support casters facilitate heavy unit load rotation while creating a stable interface with perpendicular conveyor lines.
Applications
- Pallet reorientation at merge or transfer points
- Directional changes between perpendicular conveyor lines
- Load positioning for automated processing or storage
- Accumulation and release control in pallet handling systems
- Transitions within space-limited conveyor layouts
Industries
- Warehousing and distribution
- Manufacturing and assembly operations
- Food and packaged goods handling
- Automotive and industrial products
- Material handling and logistics facilities
SPECIFICATIONS
| ROTATION | 2 position, 3 position or 4 position. |
| SPEED | 35 FPM at outside diameter. |
| CHAIN DRIVE | No. 80 roller chain. |
| CHAIN GUARD | The chain drive is completely enclosed. |
| CASTERS | (8) 4″ dia. heavy duty rubber-covered casters support rotation of turntable carrier platform. |
| DIAMETER | 3′-0″, 3′-6″, 4′-0″, 4′-6″, 5′-0″, 5′-6″, 6′-0″, 6′-6″, 7′-0″, 7′-6″ and 8′-0″ dia. |
| CARRIER PLATFORM | 3″ structural platform with 1/2″ thick steel plate supported by heavy duty casters. |
| BEARINGS | Heavy duty ball bearing 4-hole flange. |
| CAPACITY | 4000 lbs. max. product load. |
| MOTOR DRIVE | 1/2 HP, 230/460/3, 60 cycle, Super "E" right angle gear motor |
| ELEVATION | Minimum 12-1/2″ to top of plate with (4) structural leveling supports. |
| ELECTRICAL CONTROLS | Limit switches supplied as follows: 2 position = 2 limit switches; 3 position = 3 limit switches; 4 position = 4 limit switches. |
DETAILS
ACCESORIES / OPTIONS
Diameter
Elevation
Floor Supports
Speed
Motors
Controls
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
