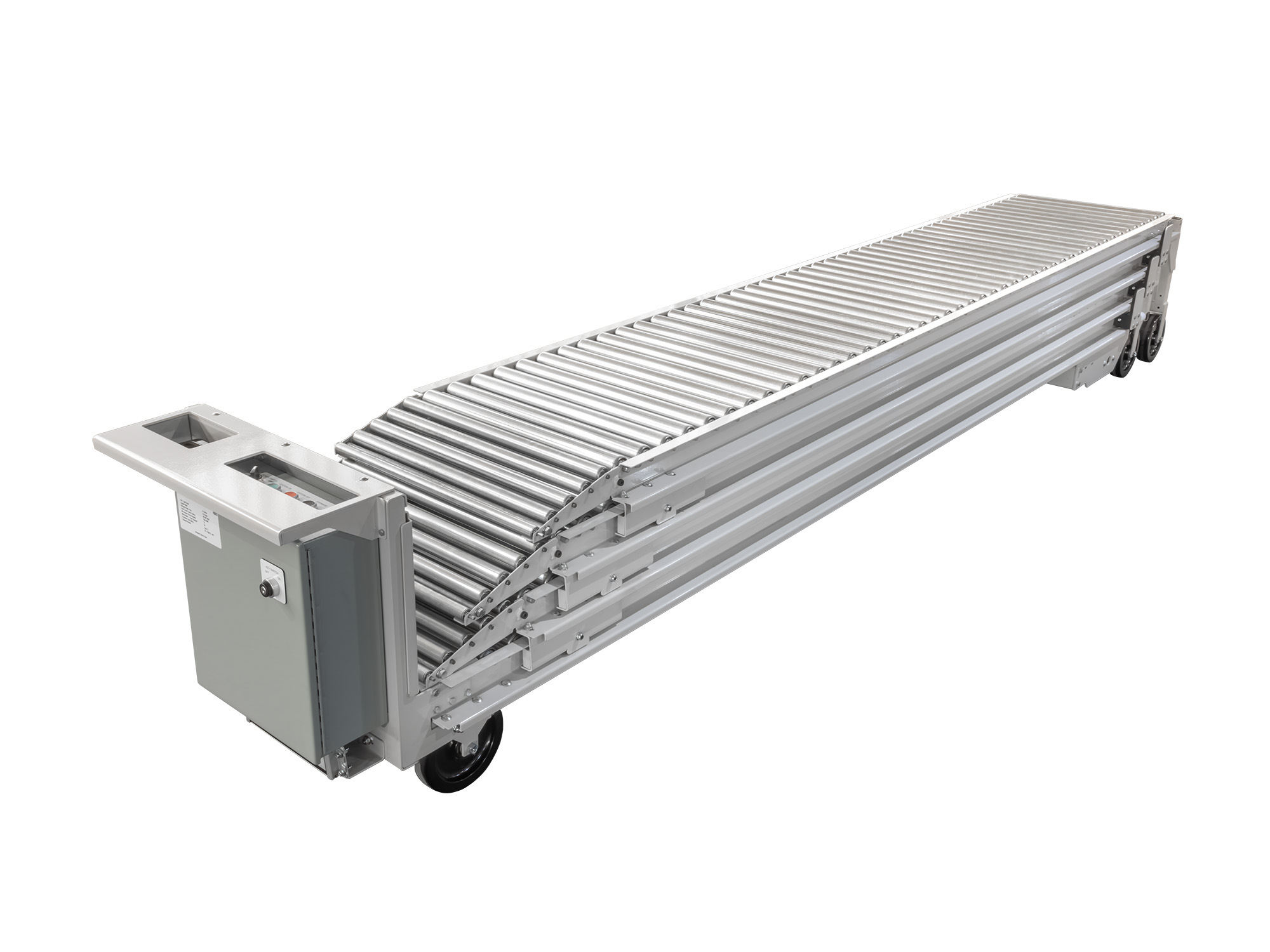

GTL TRUCKLOADER
BATTERY POWERED TELESCOPING GRAVITY TRUCKLOADER

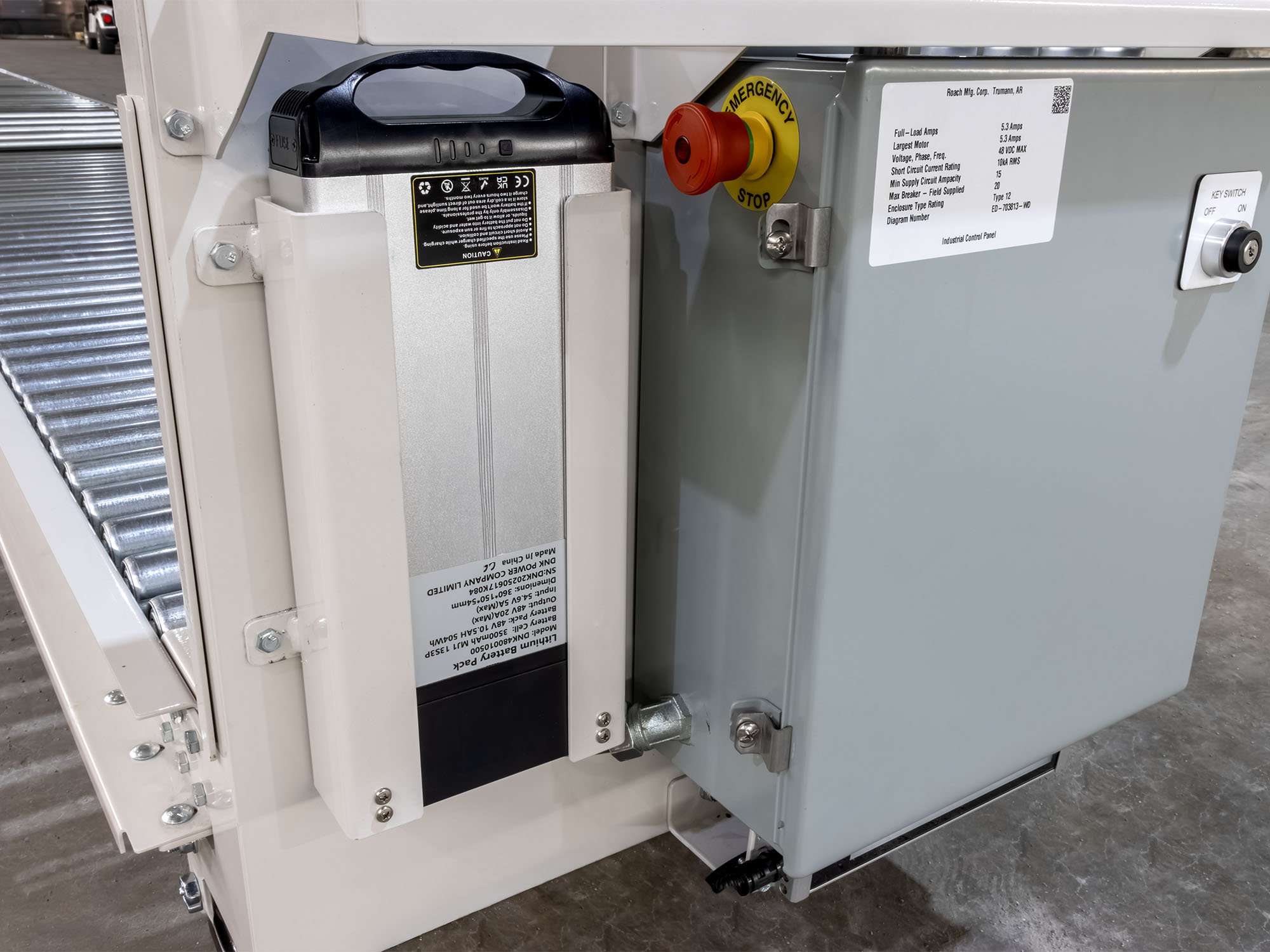

Battery Powered 90w VDC Drive
Up to two weeks per charge
E-Stops Standard
Steel Channel Frame

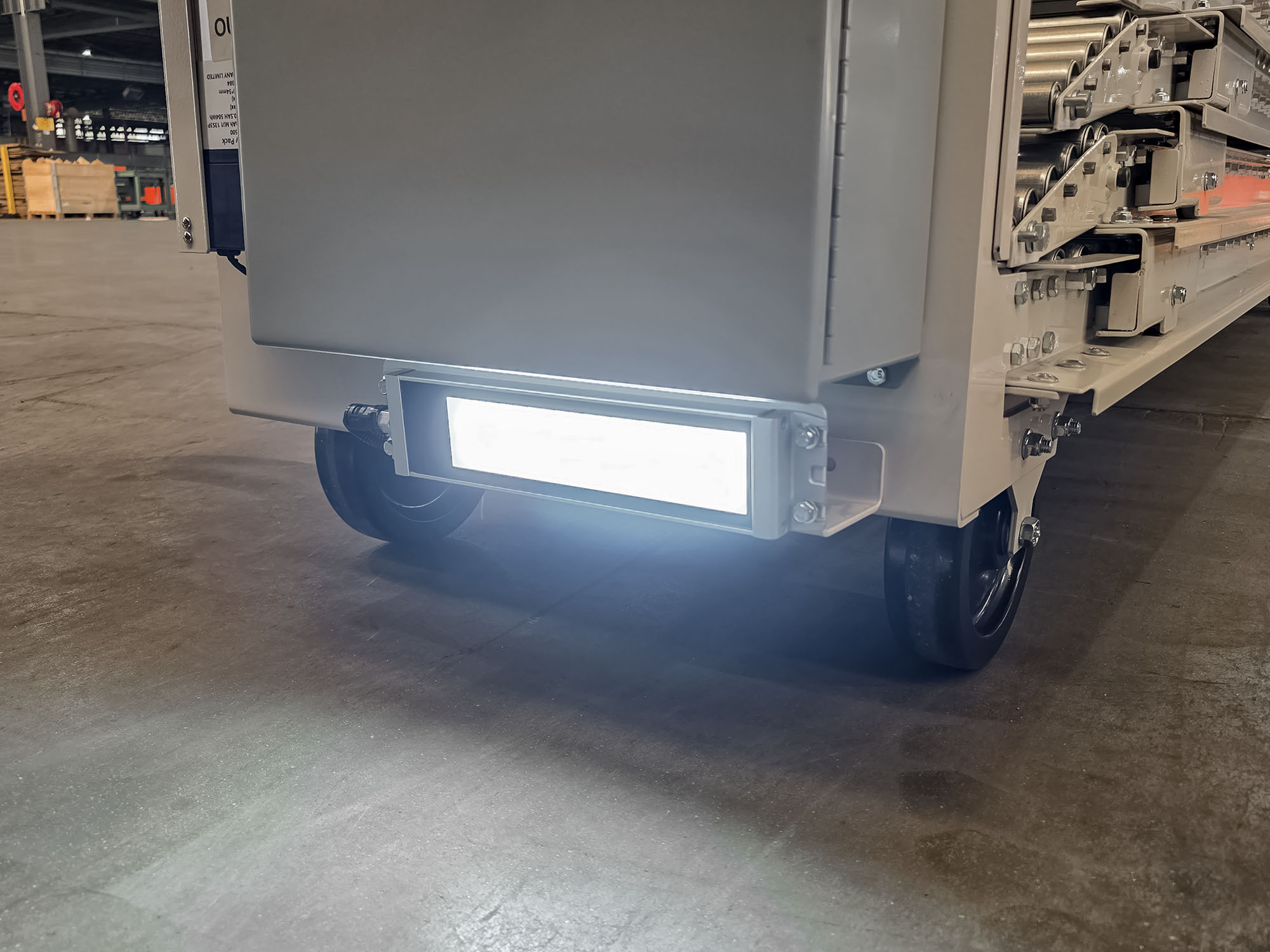

Automatic LED Light System

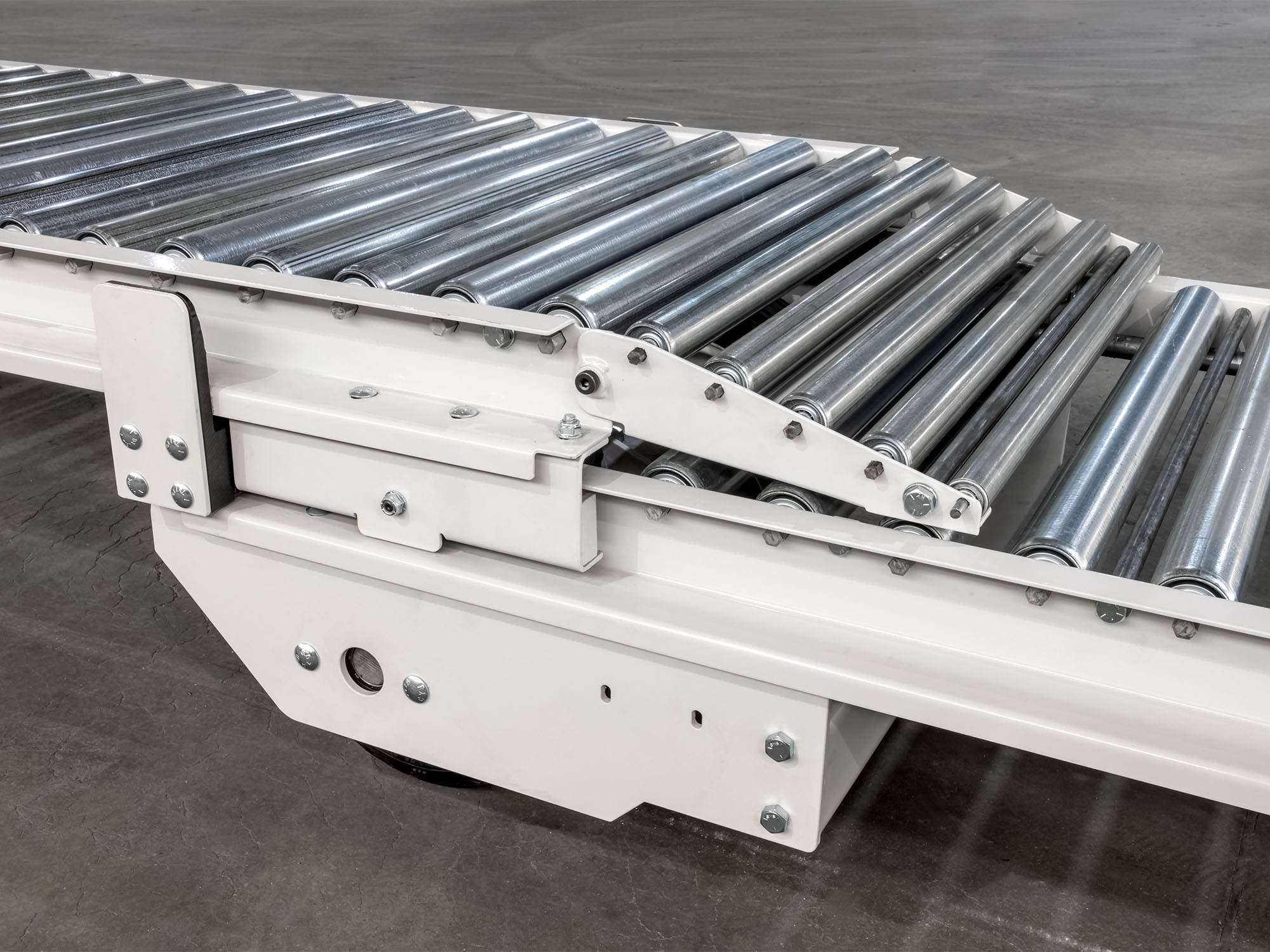

1.9” DIA | 16 GA AL | Hex Shaft Roller
The battery powered GTL telescoping gravity truckloader is designed for loading docks and shipping areas that require simple, flexible operation. The gravity roller bed allows cartons to move smoothly with minimal mechanical complexity, while the telescoping design helps operators extend product flow directly into trailers. A 90W VDC battery powered drive eliminates the need for a fixed electrical connection, giving facilities greater freedom in positioning the unit where it is needed most.
Engineered for efficient dock performance, the GTL can operate up to two weeks on a single charge, reducing charging frequency and minimizing cord management at the dock. With the mobile, self-contained configuration and wide range of applications, the GTL provides a practical solution for streamlined trailer loading operations.
SPECIFICATIONS
| LOAD CAPACITY | 50 lbs |
| ROLLER SIZE | 1.9 in |
| ROLLER TYPE | 1.9” DIA | 16 GA AL | Hex Shaft Roller |
| ROLLER CENTERS | 3 in |
| TRAVERSING MOTORS | 90W VDC Drive |
| TRAVERSING SPEED | 45 fpm |

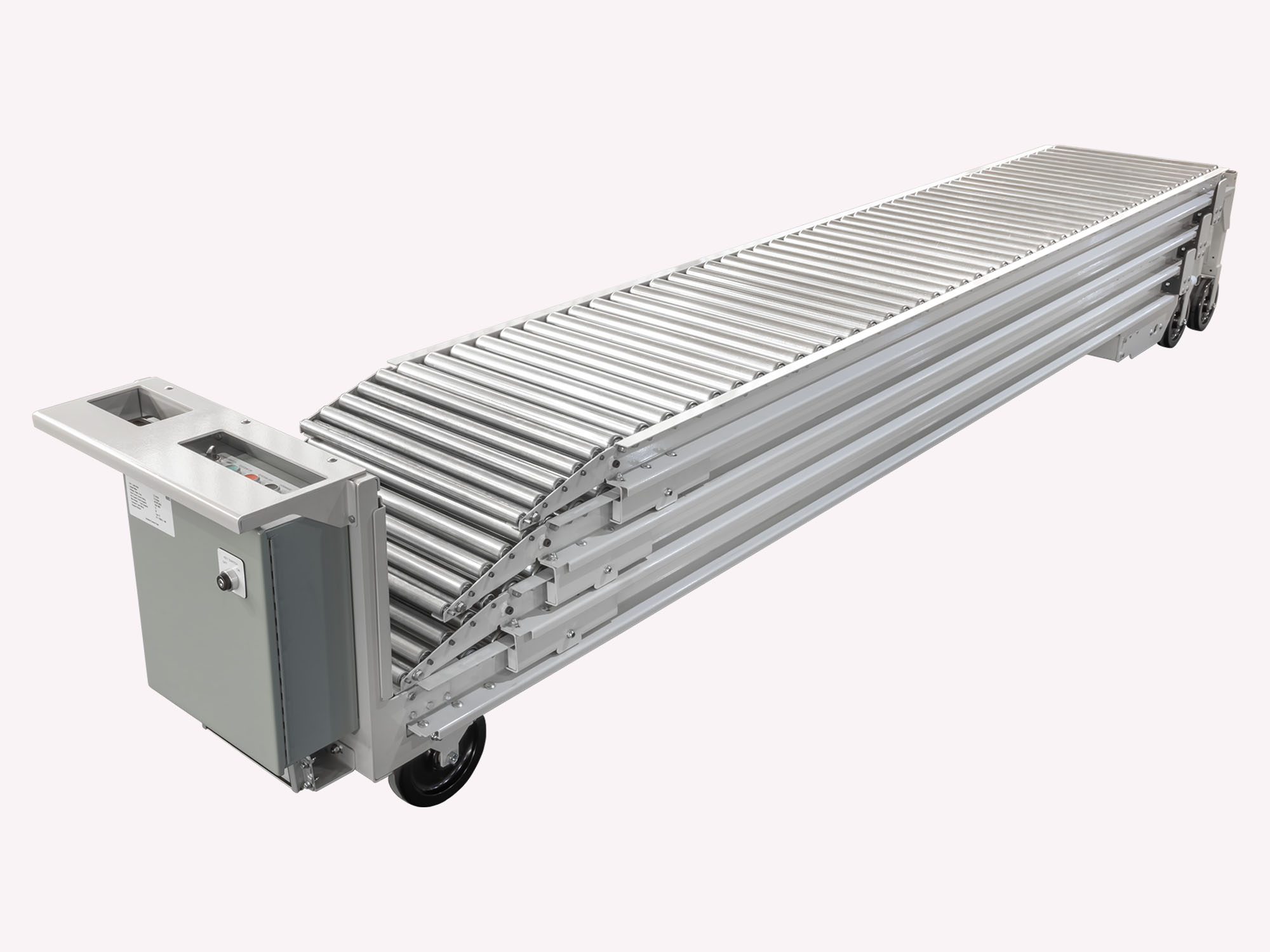

| CONTRACTED LENGTH | 15’ Nom. |

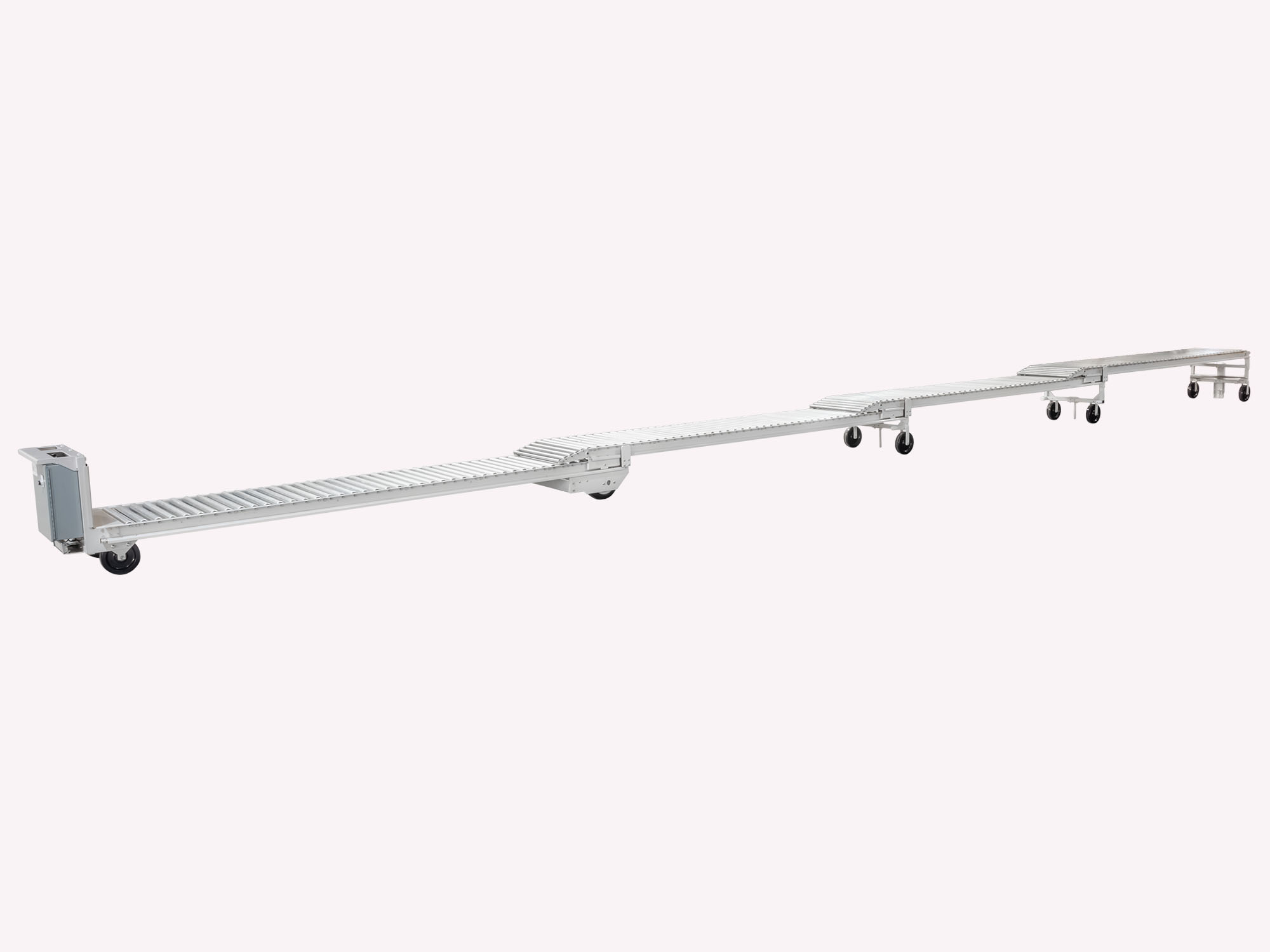

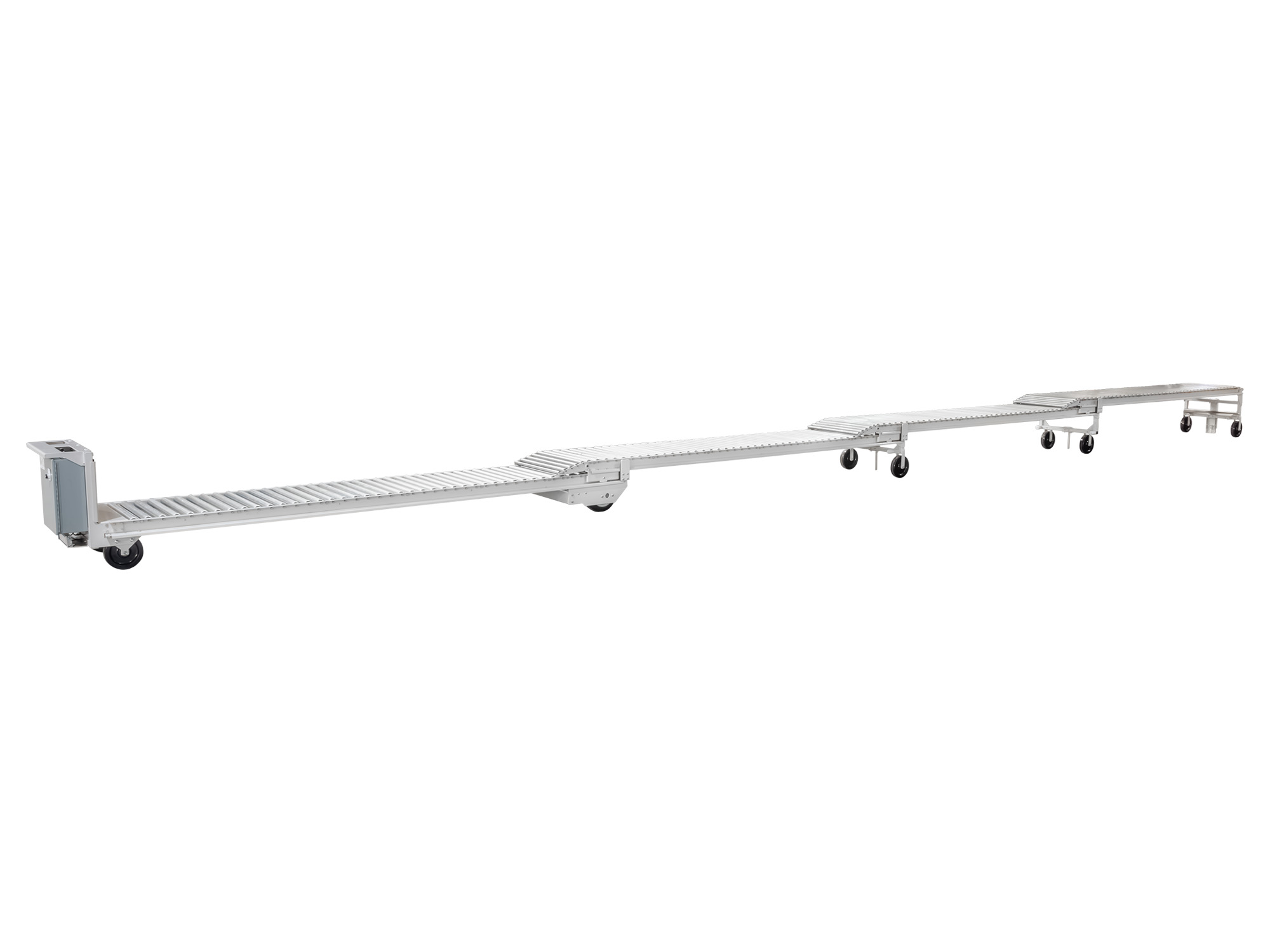

| EXTENDED LENGTH | 50’ Nom. |
| IN-FEED HEIGHT | 30” Nom. |
| DISCHARGE HEIGHT | 11.5” Nom. |
| DRIVE WHEELS | 10 in Heavy Duty |
| CASTERS | 8 in Heavy Duty |
| GUIDE TRACK | Yes |
| POWER | Battery |
| CONSTRUCTION | Formed Channel |
DETAILS
ACCESORIES / OPTIONS
ABEC Sealed Precision Bearings
WARRANTY
Electrical: 12 Months
Mechanical: 12 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
