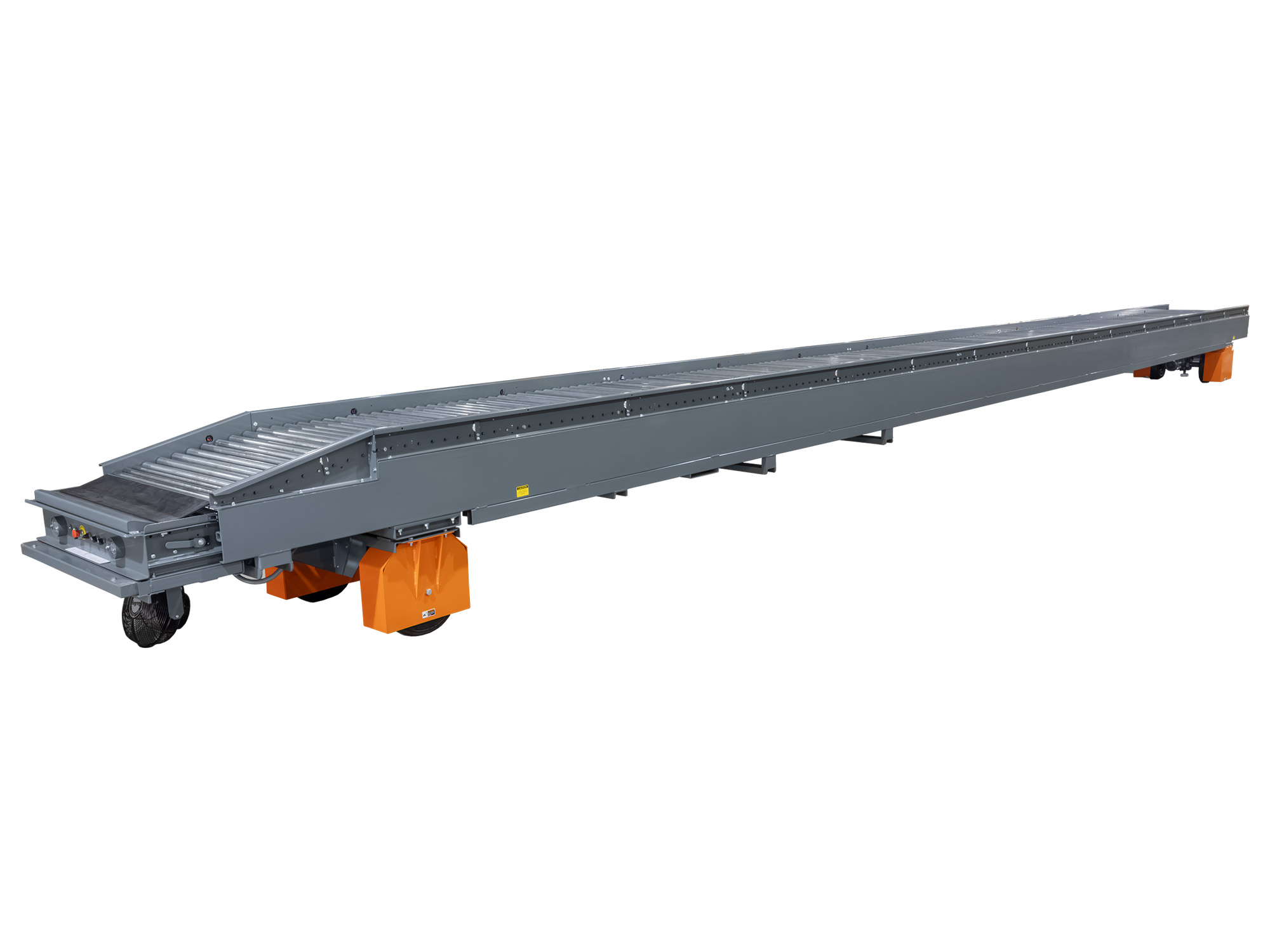

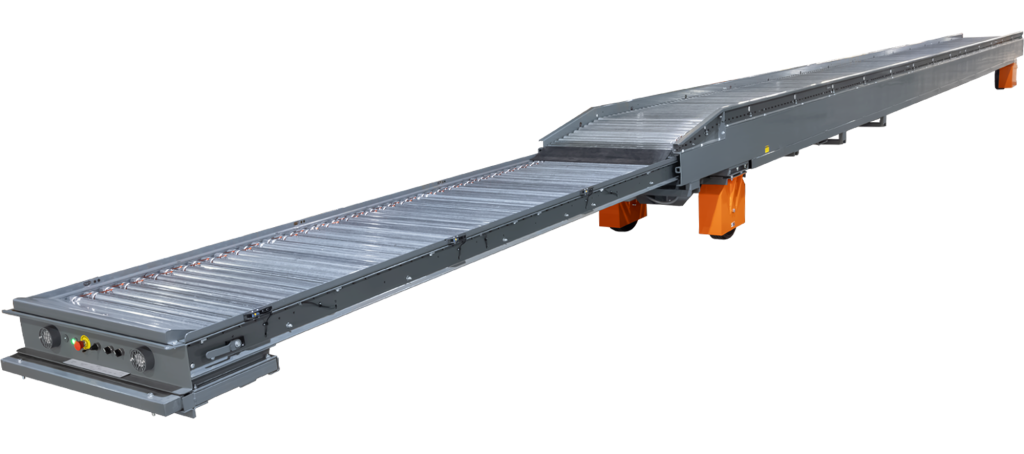

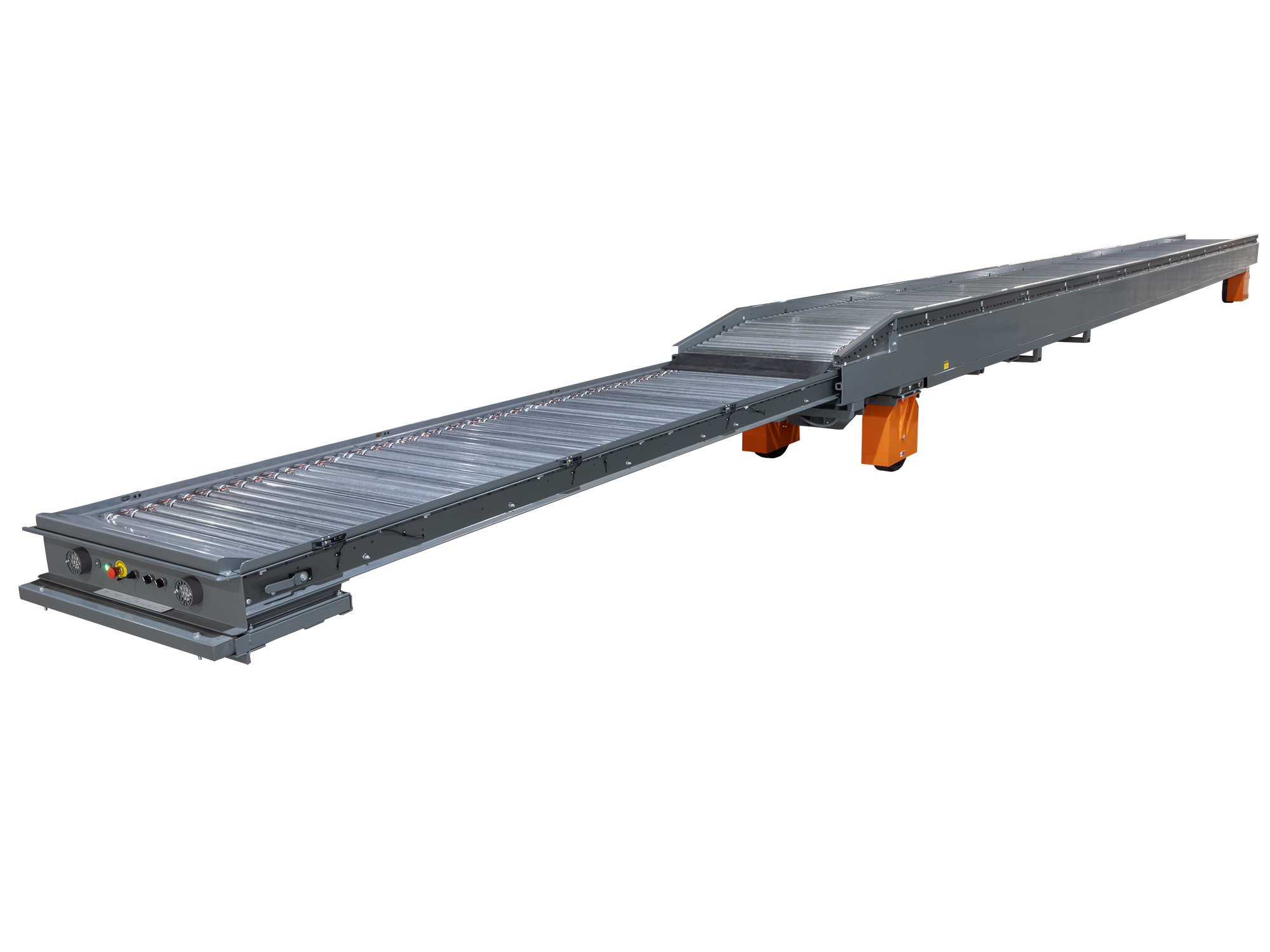

ATL TRUCKLOADER
ACCUMULATING POWERED ROLLER TRUCKLOADER
Heavy Duty Structural Design

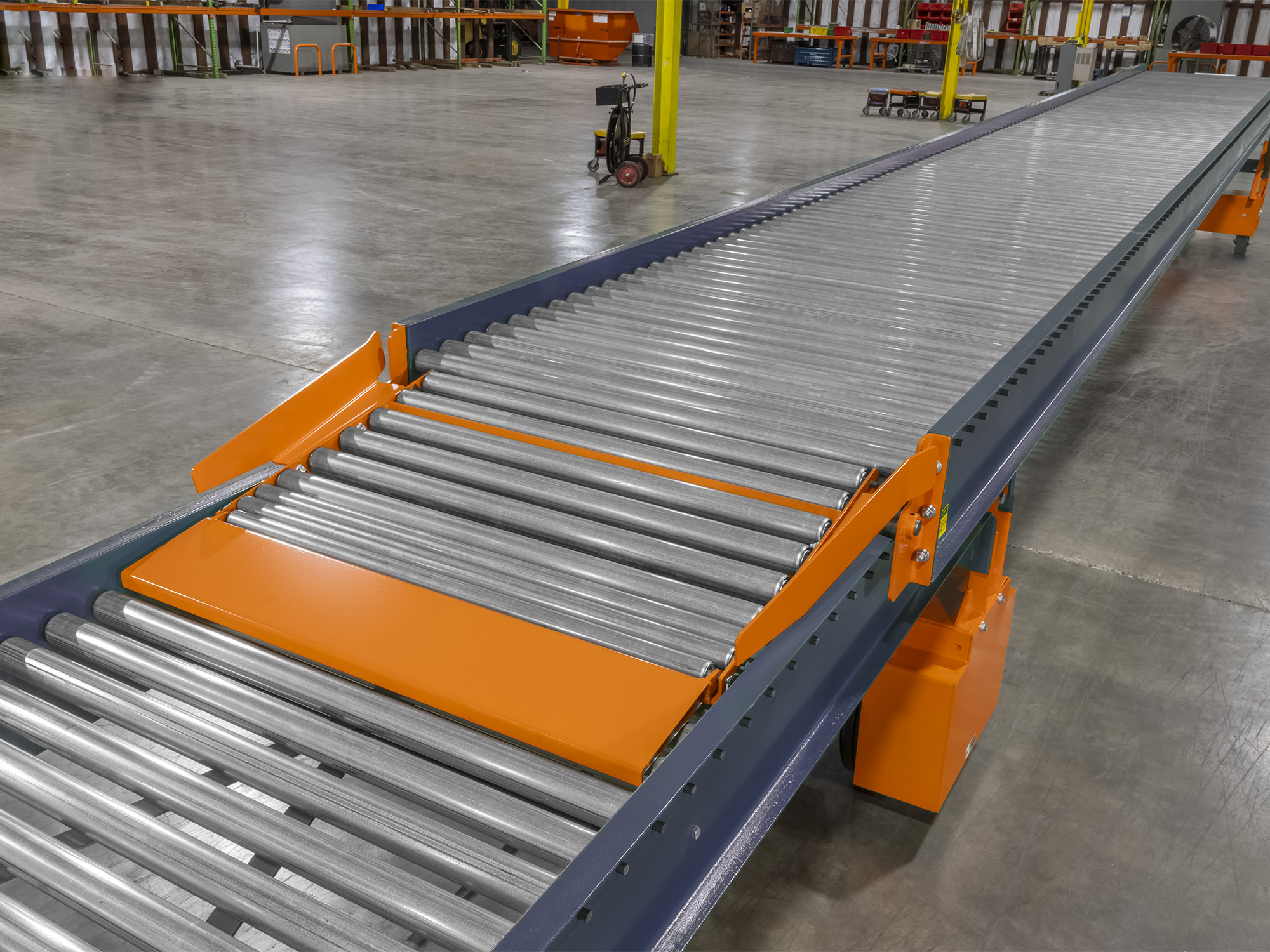

Product Guides Standard
1.5 hp Drive Motor

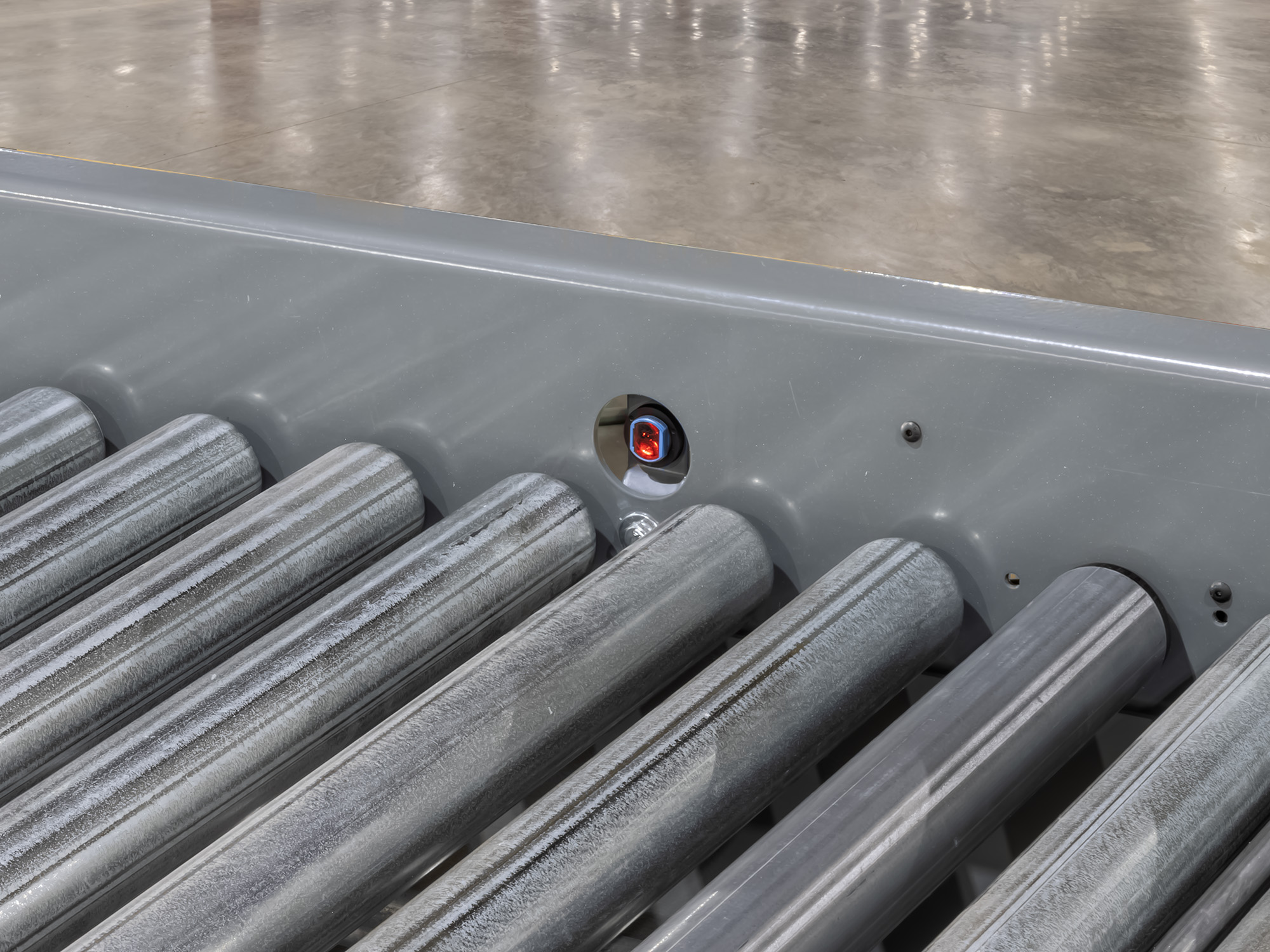

Photoeye Accumulation Zones

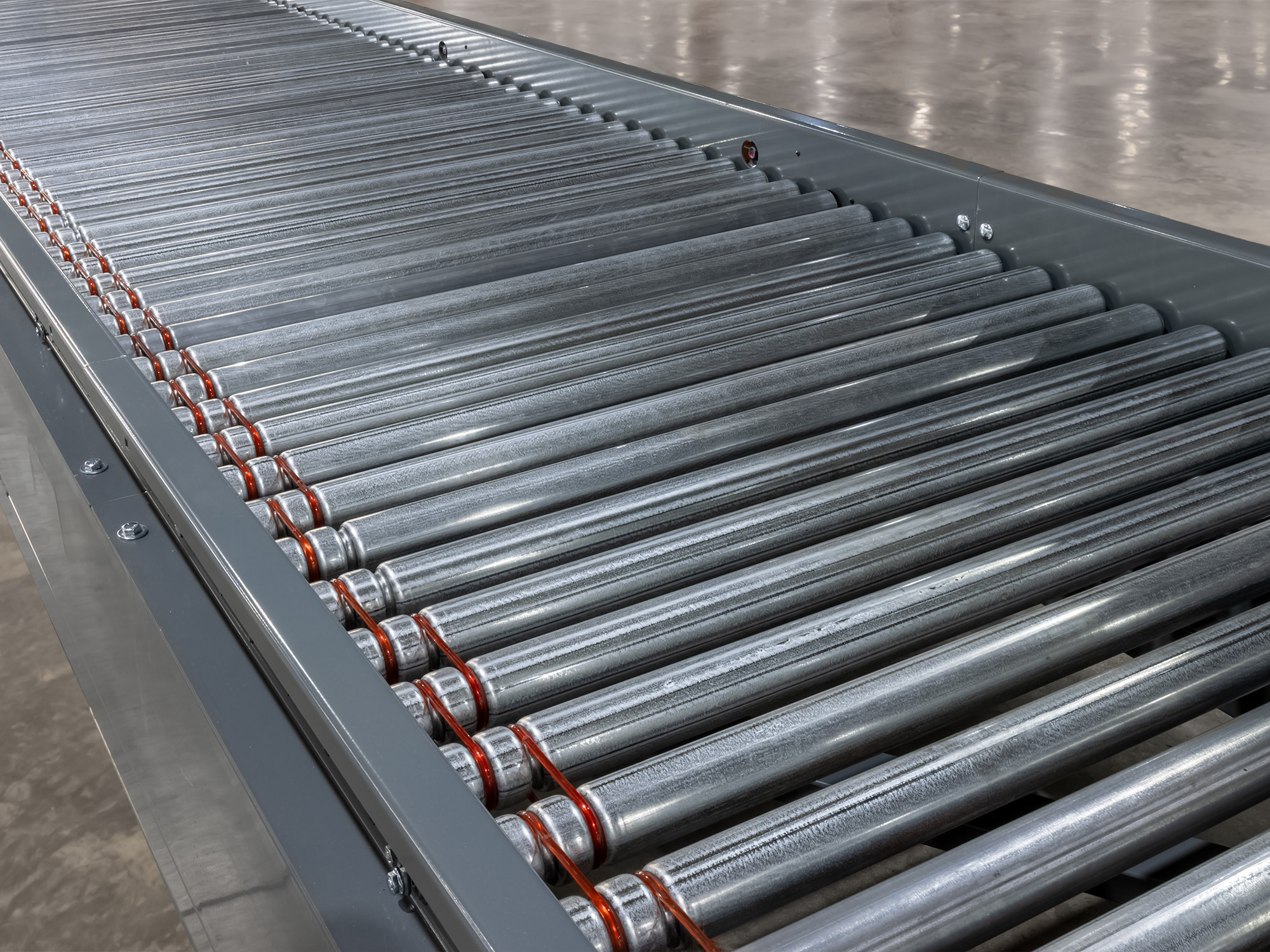

Powered Roller Driven
Power Steering
The Accumulating Powered Truckloader uses powered rollers to move cartons into a trailer while allowing product to accumulate along the conveyor line. Accumulation zones temporarily hold cartons on the conveyor surface when the operator pauses loading or when space inside the trailer is limited. This allows upstream conveyors to continue delivering product without immediately requiring placement inside the trailer.

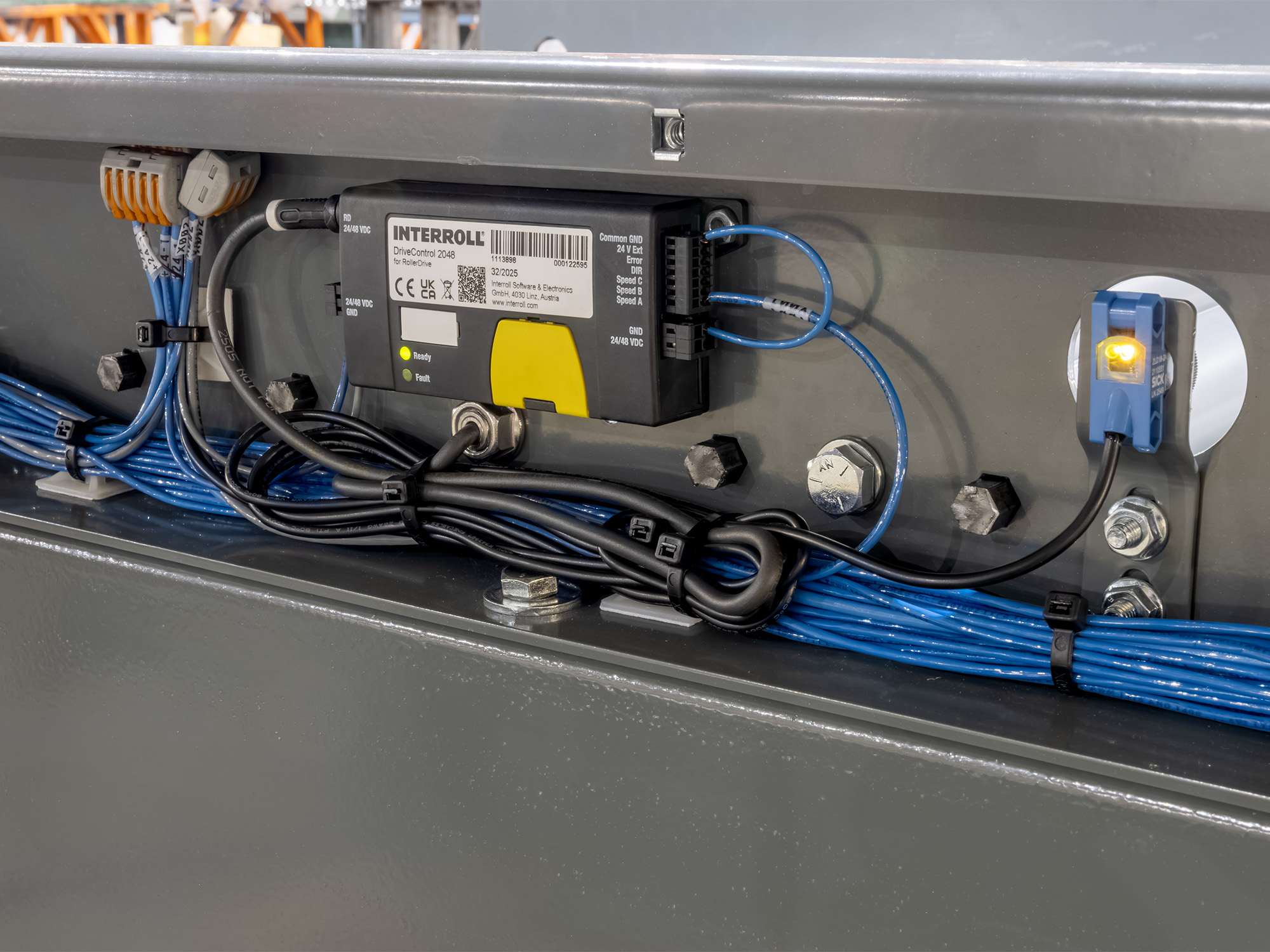

By incorporating photoeye-controlled accumulation zones, the ATL helps reduce congestion that can occur when cartons arrive faster than they can be placed inside the trailer. This buffering capability supports continuous system operation and minimizes interruptions to the overall material handling process.
The accumulating powered roller design helps maintain product orientation and stability as cartons move toward the end of the truckloader. Standard product guides assist with alignment while the powered rollers present cartons in a controlled sequence for loading. A 1.5 hp drive motor provides consistent conveyor movement to support steady product flow in demanding distribution environments.
SPECIFICATIONS
| LOAD CAPACITY | 10 lbs/ft lbs |
| MAX LIVE LOAD | 3,000 lbs |
| ROLLER SIZE | 1.9 in with ABEC Bearings |
| ROLLER TYPE | Heavy duty 16 GA zinc plated steel roller |
| AXLE CENTERS | 3 in |
| TRAVERSING MOTORS | 1.5 hp gear motor with Bauer reducer |
| TRAVERSING SPEED | 100 fpm |
| STEERING | 6° (3° left / 3°) Power Steering |
| COMMON IN-FEED WIDTH | 32” | 34“ | 38” | 40“ |
| COMMON DISCHARGE WIDTH | 30” | 32“ | 36” | 38“ |
| LENGTH | Up to 64 ft |
| IN-FEED HEIGHT | 36” Nom |
| DISCHARGE HEIGHT | 29” Nom |
| TIRES | 18 in Solid Rubber |
| GUIDE TRACK | Floor Mounted Guide Included |
| POWER | Standard: 480VAC / Optional: 230VAC |
| CONSTRUCTION | Structural Channel |
DETAILS
ACCESORIES / OPTIONS
ABEC Sealed Precision Bearings
WARRANTY
Electrical: 12 Months
Mechanical: 24 Months
SERVICES
Technical Support
Installation & Service
Preventative & Routine Maintenance
Application Support
Operator & Maintenance Training
